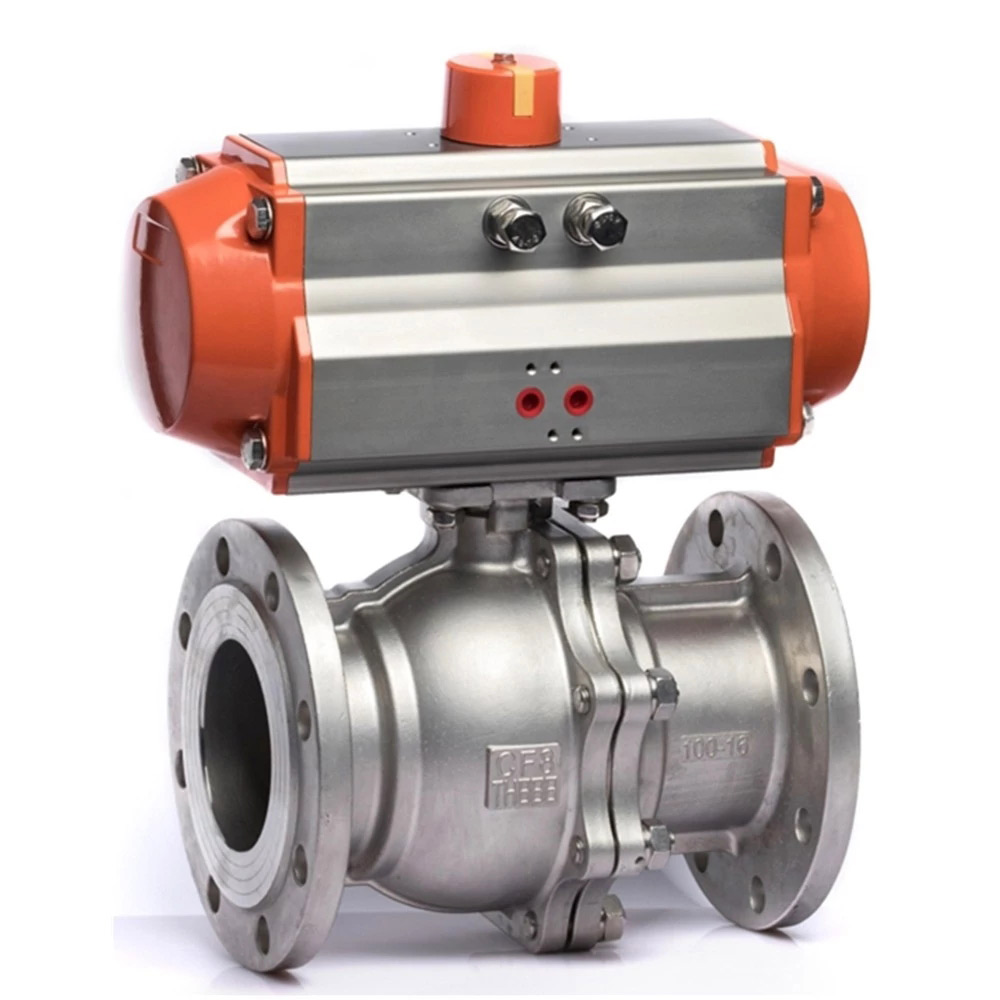

Q641The pneumatic ball valve is suitable for industrial pipeline. As the opening and closing device, the pneumatic ball valve is composed of QZ pneumatic actuator and q641 flange through ball valve. The ball valve is composed of valve body, hollow ball, valve seat, valve stem, bearing, etc.
Q641The pneumatic ball valve is suitable for industrial pipeline. As the opening and closing device, the pneumatic ball valve is composed of QZ pneumatic actuator and q641 flange through ball valve. The ball valve is composed of valve body, hollow ball, valve seat, valve stem, bearing, etc. Pneumatic actuator is the driving device of ball valve, which is composed of box, cylinder, piston, piston rod, rocker (or rack), output shaft, etc. Q641 pneumatic ball valve is controlled by solenoid valve to realize the two position action of valve, so as to achieve the function of pipeline flow switch. This product is widely used in petroleum, chemical, food, medicine, textile, paper, water and electricity, ship, metallurgy, gas, water supply and drainage systems. It can be used as switch and cut-off device on all pipelines and containers of gas, liquid, slurry and solid powder with different corrosive and non corrosive pressures. It can realize on-site and remote operation, and also can realize individual or centralized control. The product is advanced in design, novel in structure, complete in function, safe and reliable, and convenient in maintenance. It is an ideal pipeline switch control device
model | PN | working pressure /MPa | Applicable temperature /℃ | Applicable media |
Q641F-16C | 16 | 1.6 | ≤180 | Water, gas and oil |
Q641F-25 | 25 | 2.5 | ||
Q641F-40 | 40 | 4 | ||
Q641Y-16C | 16 | 1.6 | ≤425 | Water, gas and oil |
Q641Y-25 | 25 | 2.5 | ||
Q641Y-40 | 40 | 4 | ||
Q641F-16P | 16 | 1.6 | ≤180 | Granular media in water, gas and oil |
Q641F-25P | 25 | 2.5 | ||
Q641F-40P | 40 | 4 | ||
Q641Y-16P | 16 | 1.6 | ≤450 | Granular media in water, gas and oil |
Q641Y-25P | 25 | 2.5 | ||
Q641Y-40P | 40 | 4 | ||
Q641F-16R | 16 | 1.6 | ≤180 | Nitric acid |
25 | 2.5 | |||
Q641F-40R | 40 | 4 | ||
Q641Y-16R | 16 | 1.6 | ≤450 | Granular media in water, gas and oil |
25 | 2.5 | |||
Q641Y-40R | 40 | 4 | ||
Q641F-16I | 16 | 1.6 | -29~150 | Water, steam, oil, etc |
Q641F-25I | 25 | 2.5 | ||
Q641F-40I | 40 | 4 | ||
Q641F-63I | 63 | 6.3 |
model | Material Science | |||
valve body | Stem | Sealing surface | filler | |
Q641F-16C | WCB | 2Cr13 | PTFE、enhance PTFE | PTFE |
Q641F-25 | 304 | |||
Q641F-40 | 316 | |||
Q641Y-16C | 1Cr18Ni9Ti | enhance | Flexible graphite | |
Q641Y-25 | 1Cr18Ni12Mo2Ti | |||
Q641Y-40 | ||||
Q641F-16P | CF8 | 304 | PTFE、enhance PTFE | PTFE |
Q641F-25P | ||||
Q641F-40P | ||||
Q641Y-16P | Cobalt base metal surfacing | Flexible graphite | ||
Q641Y-25P | ||||
Q641Y-40P | ||||
Q641F-16R | CF8M | 316 | PTFE、enhance PTFE | PTFE |
Q641F-25R | ||||
Q641F-40R | ||||
Q641Y-16R | Cobalt base metal surfacing | |||
Q641Y-25R | ||||
Q641Y-40R | ||||
Q641F-16I | Alloy steel | stainless steel | — | — |
Q641F-25I | ||||
Q641F-40I | ||||
Q641F-63I |
DN | L | D | H | H1 | L0 | weight/kg |
15 | 130 | 95 | 185 | 39 | 140 | 6 |
20 | 130 | 105 | 189 | 43 | 140 | 7 |
25 | 140 | 115 | 210 | 48 | 158 | 8 |
32 | 165 | 135 | 265 | 58 | 211 | 12 |
40 | 165 | 145 | 260 | 62.5 | 211 | 14 |
50 | 200 | 160 | 295 | 76 | 211 | 18 |
65 | 220 | 180 | 340 | 86 | 268 | 26 |
80 | 250 | 195 | 355 | 100 | 268 | 34 |
100 | 280 | 215 | 430 | 131 | 408 | 61 |
125 | 320 | 245 | 465 | 148 | 408 | 104 |
150 | 360 | 280 | 580 | 173 | 543 | 158 |
200 | 457 | 335 | 710 | 219 | 684 | 276 |
250 | 533 | 405 | 790 | 260 | 684 | 425 |
300 | 610 | 460 | 870 | 305 | 684 | 580 |
DN | L | D | H | H1 | L0 | weight/kg |
15 | 140 | 95 | 185 | 39 | 140 | 6 |
20 | 152 | 105 | 189 | 43 | 140 | 7 |
25 | 165 | 115 | 210 | 48 | 158 | 10 |
32 | 178 | 135 | 265 | 58 | 211 | 14 |
40 | 190 | 145 | 283 | 62.5 | 211 | 16 |
50 | 216 | 160 | 295 | 76 | 247 | 22 |
65 | 241 | 180 | 340 | 86 | 268 | 34 |
80 | 283 | 195 | 355 | 100 | 268 | 40 |
100 | 305 | 230 | 455 | 134 | 408 | 78 |
125 | 381 | 270 | 515 | 148 | 437 | 130 |
150 | 403 | 300 | 600 | 173 | 543 | 195 |
200 | 419 | 360 | 740 | 223 | 684 | 297 |
250 | 568 | 425 | 920 | 283 | 684 | 460 |
300 | 648 | 485 | 955 | 321 | 684 | 700 |
DN | L | D | H | H1 | L0 | weight/kg |
15 | 140 | 95 | 185 | 39 | 140 | 7 |
20 | 152 | 105 | 189 | 43 | 140 | 8 |
25 | 165 | 115 | 210 | 48 | 158 | 11 |
32 | 178 | 135 | 265 | 58 | 211 | 15 |
40 | 190 | 145 | 283 | 62.5 | 247 | 19 |
50 | 216 | 160 | 295 | 76 | 247 | 22 |
65 | 241 | 180 | 340 | 86 | 268 | 33 |
80 | 283 | 195 | 380 | 100 | 315 | 44 |
100 | 305 | 230 | 455 | 134 | 408 | 84 |
125 | 381 | 270 | 515 | 148 | 543 | 162 |
150 | 403 | 300 | 600 | 173 | 543 | 197 |
200 | 419 | 375 | 740 | 223 | 684 | 342 |
250 | 568 | 445 | 920 | 283 | 684 | 500 |
300 | 648 | 510 | 955 | 321 | 684 | 705 |
DN | L | D | H | H1 | weight/kg |
15 | 140 | 105 | 70 | 210 | — |
20 | 152 | 130 | 75 | 250 | 7.2 |
25 | 165 | 140 | 85 | 261 | 9 |
32 | 178 | 155 | 100 | 262 | 13 |
40 | 190 | 170 | 115 | 294 | 15 |
50 | 216 | 180 | 130 | 352 | 19 |
65 | 241 | 205 | 155 | 398 | 42 |
80 | 283 | 215 | 180 | 461 | 50 |
100 | 305 | 250 | 210 | 488 | 68 |
125 | 381 | — | — | — | 108 |
150 | 403 | — | — | — | 140 |
