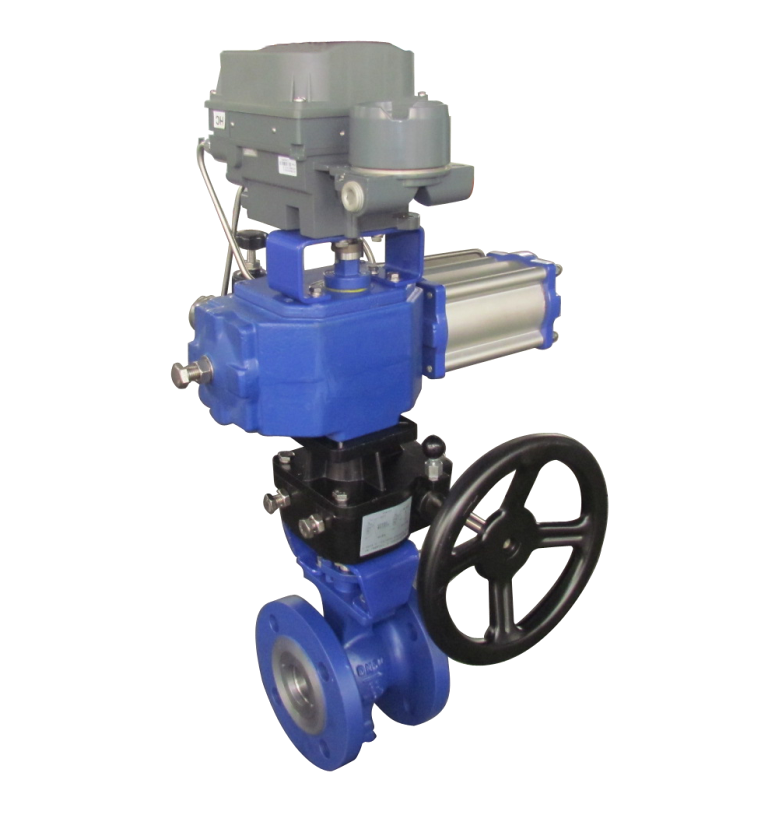

Ve series pneumatic high performance eccentric ball valve V-shaped ball core and seal ring adopts unique eccentric structure, which has the characteristics of compact structure, good sealing performance and long service life. It is widely used in chemical industry, electric power industry, textile industry, food industry, medicine industry, paper industry and so on.
Ve series pneumatic high performance eccentric ball valve V-shaped ball core and seal ring adopts unique eccentric structure, which has the characteristics of compact structure, good sealing performance and long service life. It is widely used in chemical industry, electric power industry, textile industry, food industry, medicine industry, paper industry and so on. The performance of this product is leading in China, reaching the international advanced level!
VETechnical parameters of series pneumatic high performance eccentric ball valve PN16 ~ pn64
Nominal diameter DN(mm) | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | ||
Rated flow coefficientKv | 20 | 30 | 50 | 100 | 150 | 240 | 370 | 620 | 940 | 1540 | 2400 | 3900 | 6150 | 9800 | ||
Nominal pressure PN(MPa) | 1.6、4.0、6.4 | |||||||||||||||
Flow characteristics | Approximately equal percentage | |||||||||||||||
Inherent adjustable ratio | 100 (special requirements up to 200)! | |||||||||||||||
Rated angle(℃) | 90 | |||||||||||||||
Equipped with actuator | Pneumatic piston type | Single acting model | See table for details5~7 | |||||||||||||
torque(Nm) | ||||||||||||||||
Double acting model | ||||||||||||||||
torque(Nm) | ||||||||||||||||
Electric actuator | Code name | |||||||||||||||
torque(Nm) | ||||||||||||||||
Air source pressure(MPa) | 0.4~0.7 | |||||||||||||||
Electricity source | 220 v.ac or 380 v.ac | |||||||||||||||
Input signal | 4~20mA、1~5(V.DC)Or above signal range control |
Annex table | |||||||
Pneumatic eccentric ball valve | Electric eccentric ball valve | ||||||
Code name | option | Code name | option | Code name | option | Code name | |
nothing | Without accessories | S | Solenoid valve | nothing | Without accessories | B | Position transmitter |
P | Pneumatic valve positioner | R | Air filter pressure reducer | D | Electric operator | L | Limit switch |
E | Electric / pneumatic valve positioner | H | handwheel | F | Servo amplifier | K | Torque switch |
T | Electric / pneumatic converter | V | Retaining valve | handwheel | |||
B | Position transmitter | Q | Quick exhaust valve | ||||
L | Limit switch | X | Current limiting speed regulating valve |
1. Be careful in installation and construction, and do not hit the valve.
2. Before installation, the ball valve should be inspected to check the specification and model, and identify whether there is damage, especially for the valve stem. Also turn a few times to see if it is skewed, because during transportation, it is easy to bump the stem. Also remove the debris in the valve.
3. When lifting the ball valve, the rope should not be tied to the hand wheel or the valve stem to avoid damage to these parts, but should be tied to the valve body.
4. The pipeline connected to the ball valve must be cleaned. Compressed air can be used to blow away iron oxide chips, mud and sand, welding slag and other impurities. These debris, not only easy to scratch the sealing surface of the ball valve, in which large particles of debris (such as welding slag), but also block the small valve, so that its failure.
5. The position of valve handle rotation should be reserved during installation. 6. The ball valve cannot be used as throttling. 7. The ball valve with transmission mechanism shall be installed vertically.
