The fixed cone valve is designed and produced by Shanghai European company in recent years according to the imported products and domestic terrain conditions. It is usually used as the free discharge valve of bypass valve of hydraulic turbine generator set, or continuous discharge flow control. Due to the use of inverted conical plunger valve core and named, referred to as conical valve, and because of its excellent energy dissipation effect, it is also known as energy dissipation valve.
Gdzf fixed cone valve is designed and produced by shangou valve company in recent years according to imported products and domestic terrain conditions. It is usually used as the free discharge valve of bypass valve of hydraulic turbine generator set, or continuous discharge flow control. Due to the use of inverted conical plunger valve core and named, referred to as conical valve, and because of its excellent energy dissipation effect, it is also known as energy dissipation valve. Also commonly used in farmland irrigation, also known as irrigation valve. In addition to the conical valve core at the end of the flow channel, all moving parts of the valve are set outside the flow passage of the valve, which makes the internal flow channel of the valve body smooth, with large flow rate and less pressure drop loss, which will not produce cavitation and vibration in the whole working range.
Fixed cone valve is often used in dam, reservoir, barrage or reservoir. The fixed cone valve is also often used as a discharge valve in the side road of hydraulic turbine generator set. At the drainage outlet of the reservoir, the middle section of the water transmission pipeline or the occasions where energy dissipation and drainage control are needed are also widely used. In the case of large fluid flow, high velocity and high pressure, effective energy dissipation by drainage is necessary. And any possible damage caused by cavitation or vibration on the pipeline should be eliminated. Compared with the traditional fixed cone design, the fixed cone and guide vane structure design of the fixed cone valve can effectively dissipate energy and discharge flow and eliminate the impact of pipeline vibration and cavitation damage. Metal to metal zero leakage seal can be realized by moving the outer stainless steel sleeve gate of the valve. After the sleeve gate is opened, the water flow will become a bunch of small water and radiate out in the form of a large-diameter trumpet. If the spray area is to be reduced, a shroud can be installed to limit the spray range of the fluid.

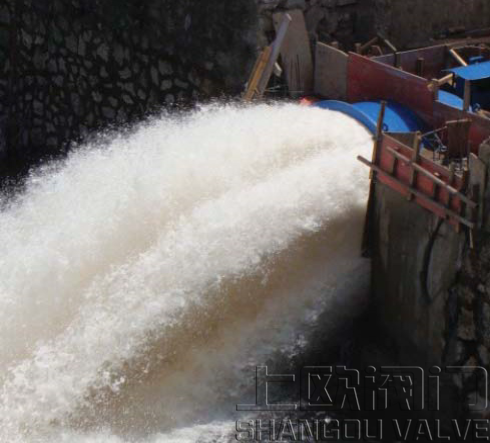

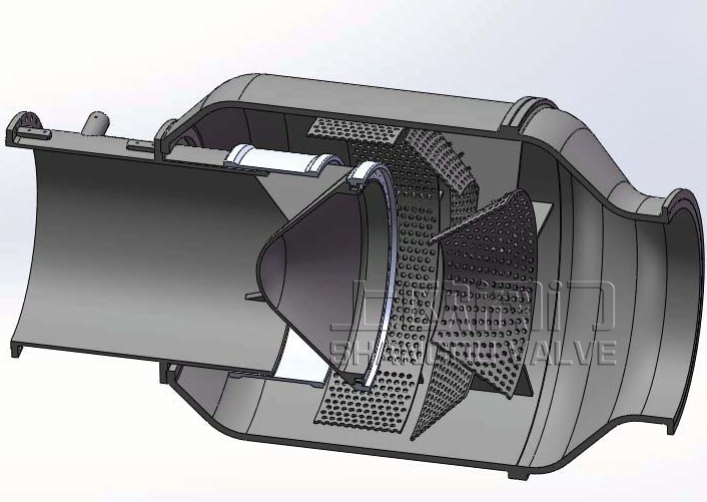

The fluid is discharged after energy dissipation by conical valve
Without the shroud, the fluid is ejected evenly
With deflector, the range of fluid injection is controlled

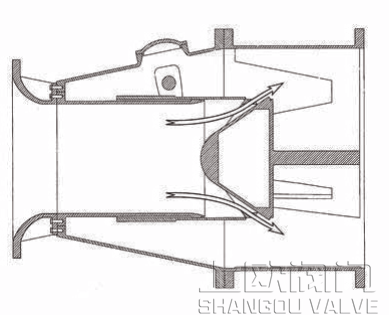

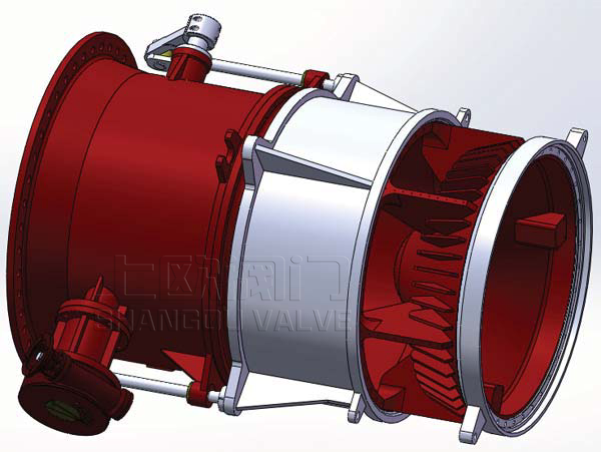

Fixed cone valve, driven by actuator, welded steel body with 60 Hastelloy backing strip, 60 Hastelloy seat. The nozzle and the fixed cone are supported and connected by radial blades. There is an open section without pipe wall between the nozzle and the vertebral body. The sleeve gate is installed outside the nozzle. The length of the open section without pipe wall is changed by the axial movement of the sleeve gate, which can adjust the valve opening. The guide hood can be set at the outlet of the valve according to the actual working conditions, which can restrict the flow pattern of the valve outlet, and further avoid the damage of cavitation and excessive spray range. In general, a guide hood should be added to the medium-sized conical valve in order to prevent the pipe at the back end of the valve from cavitation damage. The discharge type is installed at the end of the pipeline and plays the role of pressure relief, pressure maintaining and water level control.
![]() |
![]() |

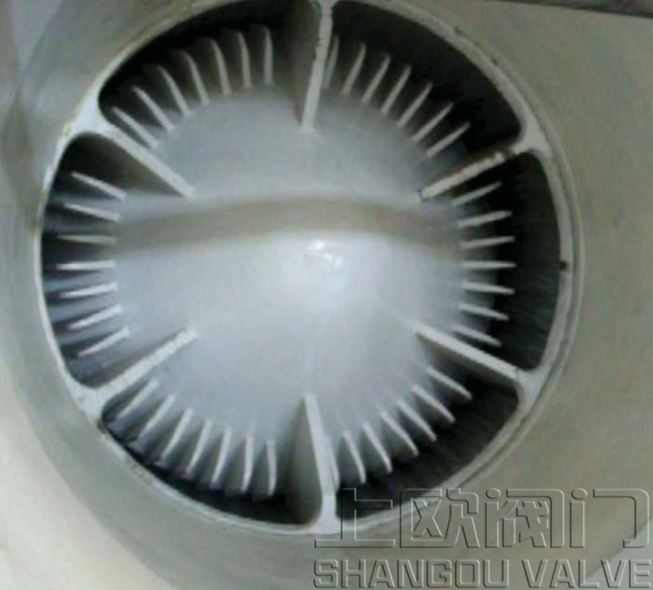

固定锥和导叶 | 产品形式 |
![]() |
流体通过锥形阀消能后排除 |

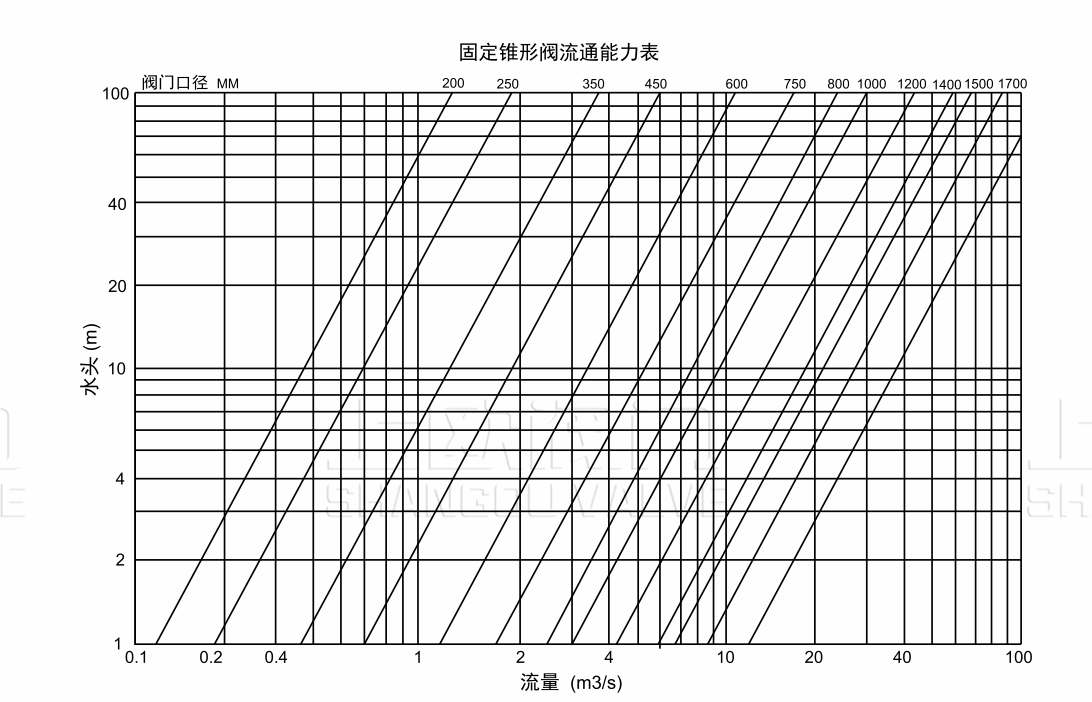

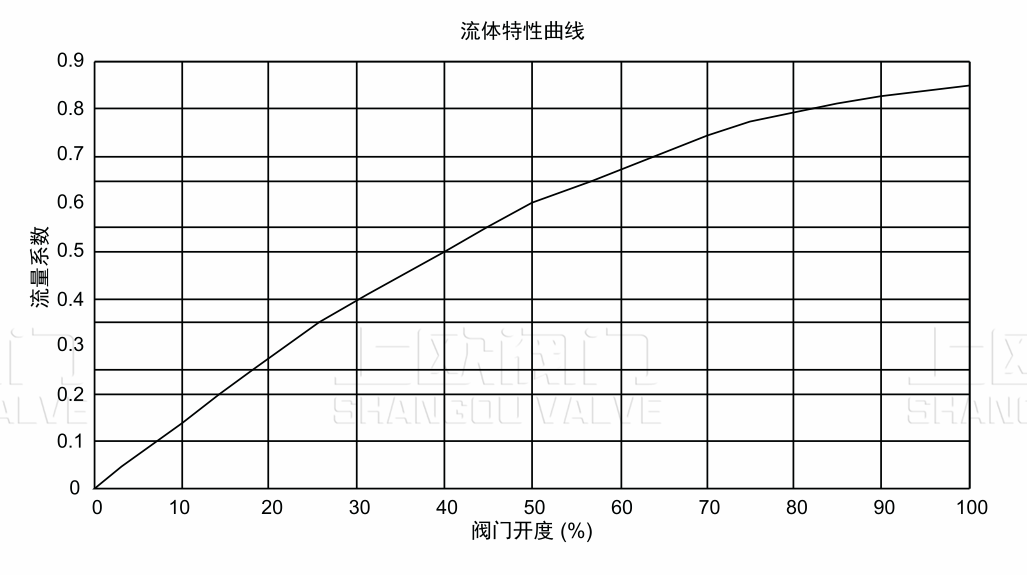

How to choose the size and design of fixed cone valve
- valve diameter mm
- valve Zui large flow m 3 / S
- flow coefficient, without shroud = 0.87, with shroud = 0.79
- gravity acceleration 9.8m/s2
- pressure difference between inlet and outlet
-pi=3.14
In order to select the correct size and design for your working conditions, please contact the factory.

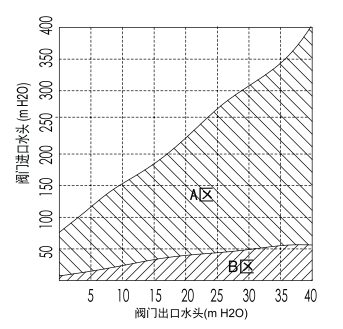

If the water head of inlet and outlet falls in area a, it is recommended to use diversion cover. If it falls in area B, the shroud is not needed.
Various sizes, pressure grades and materials available
Our fixed cone valves range in size from DN 100 (4 inches) to DN3600 (144 inches), with pressure rating of PN10, PN16, PN25 or higher, and a variety of materials are available for customers' requirements or working conditions.
![]() |

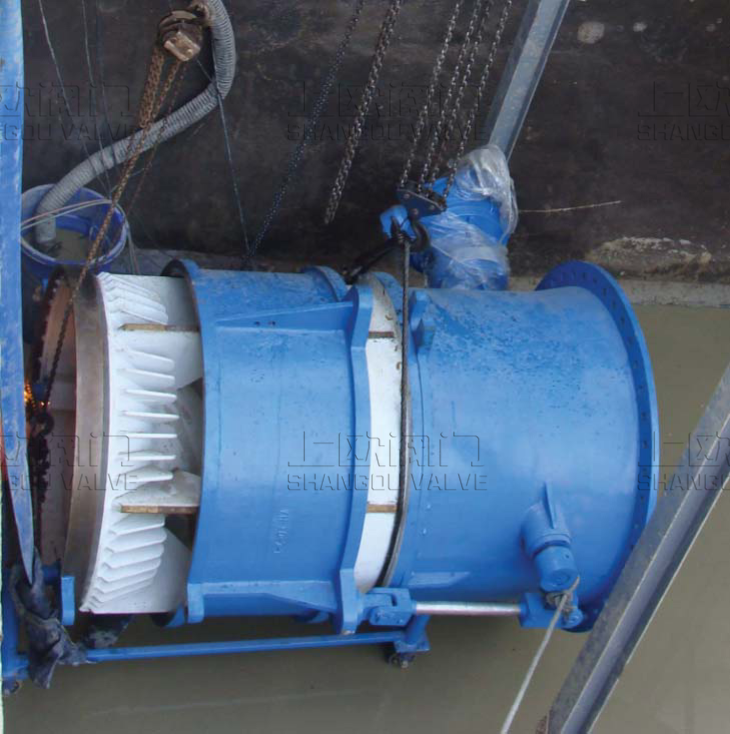

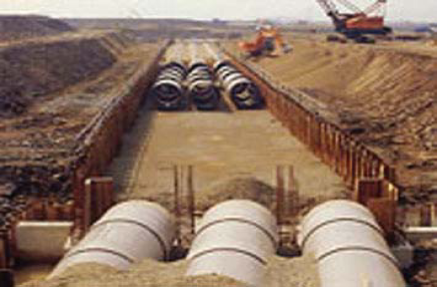

上欧公司DN1600固定锥形阀安装现场 |

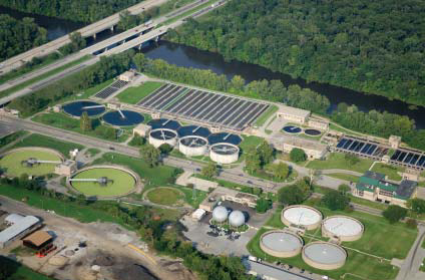

1、水处理行业 |
|
3、大坝系统 |

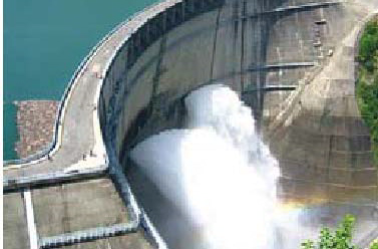

4、水库系统 |
5、石油石化系统 |
6、电厂系统 |

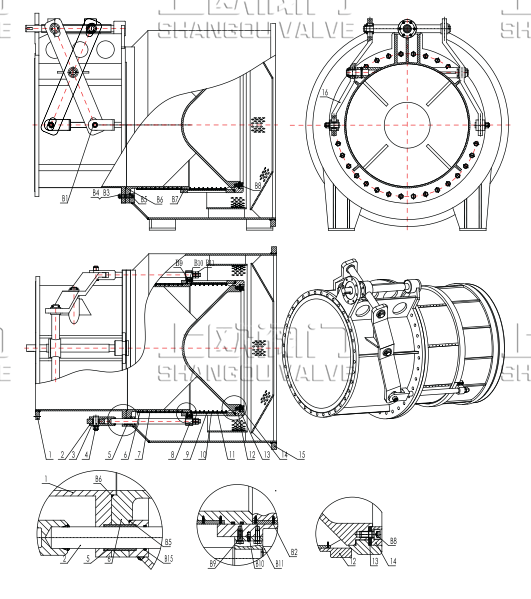

Bill of materials | ||
Serial number | describe | describe |
1 |
Front valve body | steel |
2 |
Driving lever | Stainless steel + copper |
3 |
crank | Ductile iron |
Pin | stainless steel | |
5 |
axle sleeve | copper |
6 |
nozzle | Ductile iron |
7 |
guide | |
8 |
Drive ring | |
9 |
Sleeve gate | stainless steel |
10 |
guide Pressure ring |
copper |
11 |
Guide screw Pressure ring |
stainless steel |
12 |
valve seat |
Stainless steel / Hastelloy |
13 |
seal ring |
|
14 |
Deflector |
stainless steel |
15 |
Deflector | Ductile iron |
crank | Ductile iron | |
B1 |
Hexagon nut | stainless steel |
B2 |
screw | stainless steel |
B3 |
Stud | stainless steel |
B4 |
Hexagon nut | stainless steel |
B5 |
O-ring |
NBR |
B6 |
O-ring |
NBR |
B7 |
O-ring |
NBR |
B8 |
Hexagon socket bolt | stainless steel |
B9 |
Hexagon bolt | |
10 |
screw | stainless steel |
B11 |
Hexagon nut |
Stainless Steel |
Note: please contact factory for other material selection |
