Q45FStainless steel T-type three-way ball valve is a four seat sealed three-way ball valve with beautiful appearance and compact and reasonable structure. It can not only realize the switching of medium flow direction, but also make the three channels connected with each other. At the same time, it can also close any channel to connect the other two channels, so as to flexibly control the confluence or diversion of medium in the pipeline.

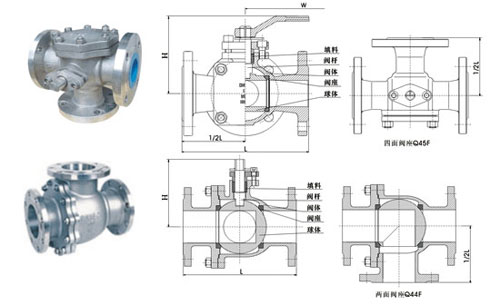

Q45FStainless steel T-type three-way ball valve is a four seat sealed three-way ball valve with beautiful appearance and compact and reasonable structure. It can not only realize the switching of medium flow direction, but also make the three channels connected with each other. At the same time, it can also close any channel to connect the other two channels, so as to flexibly control the confluence or diversion of medium in the pipeline. (T-shaped flow chart below)
Nominal pressure PN(MPa) |
Test pressure | ||
housing | High pressure liquid seal | Low pressure liquid seal | |
1.6 | 2.4 | 1.76 | 0.6 |
2.5 | 3.75 | 2.75 | |
4.0 | 6.0 | 4.4 | |
CLASS150 | 3.0 | 2.2 | |
Applicable conditions | Applicable media | Water, oil, gas and other non corrosive media and acid-base corrosion medium | |
Applicable temperature | -28~350℃ | ||
Application specification | Connecting flange | JB79-59 GB9113、 HG20592-97、ANSI B16.5 |
|
Inspection and test | JB/T 9092-99 、API598 |
Part name | texture of material | |
GB | ASTM | |
Valve body and cover | WCB | A216-WCB |
seal ring | PTFE、Para polyphenylene | PTFE、Para polyphenylene |
sphere | 1Cr18Ni9Ti | SS 304 |
Valve seat and stem | 2Cr13 | A246-416 |
Stud bolt | 35CrMoA | A193-B7 |
Q45FStainless steel T-type three-way ball valve main dimensions (mm) model nominal diameter
DN(mm)尺寸(mm)LL2DD1D2bfZ-dHWQ45F-16C
Q45F-16P
Q45F-16R15150729565451424-1495130201608010575551424-14110130251809011585651424-1812014032200100135100781624-1814418040220110145110851634-18152220502401201601251001634-23182240652601301801451201634-18193270802801401951601352038-182173501003201602151801552038-182455001253801902452101852238-182826001504402202802402102438-23319100020055026033529526526312-23380130025067031040535532030312-25460170030072037046041037530312-255202100
