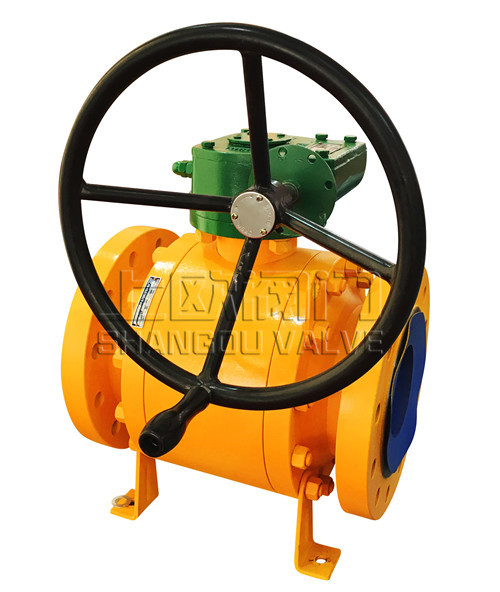

High pressure forged steel fixed ball valve

  • Profile:

    High pressure forged steel fixed ball valve is mainly divided into two sealing forms, one is metal hard sealing, the other is soft sealing. Compared with ordinary soft sealing fixed ball valve, the difference between metal hard sealing forged steel fixed ball valve and ordinary soft sealing fixed ball valve is that the latter is soft sealing seat, while the former's ball and valve seat are hardened by special process, and there are many ways of hardening, for example, the ball and valve seat have integral nitrogen The selection of hardening mode depends on the working medium or user's requirements; high temperature metal hard seal forged steel fixed ball valve is widely used in petroleum, chemical, metallurgy, papermaking, electric power, mining and other industries, especially suitable for medium with high temperature and various dust and solid particles.

Product overview

High pressure forged steel fixed ball valve is mainly divided into two sealing forms, one is metal hard sealing, the other is soft sealing. Compared with ordinary soft sealing fixed ball valve, the difference between metal hard sealing forged steel fixed ball valve and ordinary soft sealing fixed ball valve is that the latter is soft sealing seat, while the former's ball and valve seat are hardened by special process, and there are many ways of hardening, for example, the ball and valve seat have integral nitrogen The selection of hardening mode depends on the working medium or user's requirements; high temperature metal hard seal forged steel fixed ball valve is widely used in petroleum, chemical, metallurgy, papermaking, electric power, mining and other industries, especially suitable for medium with high temperature and various dust and solid particles.

工作原理
Product features

1. The main parts are forged products with dense materials and guaranteed safety performance.
2. The flexible movable metal valve seat structure with cylindrical spring or wave spring preload is adopted. The design of sealing preload is reasonable and the closing and opening is flexible, which can effectively ensure the reliability of sealing.
3. The ball is made of super British speed spraying wear-resistant alloy powder, and the valve seat is overlaid with Stellite cemented carbide and sprayed with other super wear resistant alloy materials.
4. The sealing surface is finely ground, and the sealing is reliable.
5. Full diameter channel design, small flow resistance and large flow capacity.
6. The valve rod anti fly out design is safe and reliable. The anti-static function can be designed according to the requirements.
7. Automatic pressure relief valve seat design, once the valve body cavity abnormal pressure rise, the valve seat will automatically release to the low pressure end, more safe.
8. Both the upper and lower valve stems are designed with bearing structure, and the torque is lighter in the process of opening and closing.
9. A variety of drive mode options: manual, worm gear drive, pneumatic, electric, hydraulic, pneumatic linkage, etc.; can also be used with the automatic transportation control.



Product parameters

Product Name: high pressure forged steel fixed ball valve
Product series: fixed ball valve series
Nominal diameter: dns2 ~ 24 "
Nominal pressure: pn0.25-42.0mpa, class 150-2500
Adopted standards: GB, ANSI, DIN, JIS, BS, API, NACE
Working temperature: - 29 ~ 450 ℃

Structure and Application

The three-part connection forged steel fixed ball valve is divided into three parts along the section perpendicular to the valve channel axis at the two valve seats. The whole valve is symmetrical along the central axis of the valve stem. It is mainly used for cutting off, distributing and changing the flow direction of medium on the pipeline. Its large pivot structure ensures the accurate center position of the ball under high pressure and ensures the good operation performance of the valve; the standard valve seat adopts the spring structure, which pushes the valve seat to the ball to ensure the good bidirectional sealing performance of the inlet and outlet; the self-contained discharge valve is used to make the middle cavity of the valve body discharge outwards; the pivot adopts the anti blowing protection structure to effectively prevent leakage; the low friction coefficient of the valve seat is low The bearing can reduce the torque to the minimum and facilitate the opening and closing of the valve; the effective contact between the valve stem and the valve body makes the anti-static grounding device have superior performance. It has the advantages of excellent performance, high reliability, wide application and reasonable price. It is suitable for: chemical industry, petroleum, natural gas, metallurgy and other industries as well as long-distance natural gas pipeline with hydrogen sulfide medium, impurities and serious corrosion.

Performance specifications

Performance specifications(Mpa)

Nominal pressure(Mpa)

Pressure level(Class)



1.6

2.5

4.0

6.4

10.0

16.0

25.0

150

300

400

600

900

1500

strength test

2.4

3.8

6.0

9.6

15.0

24

37.5

3.1

7.8

10.2

15.3

23.1

38.4

Sealing test

1.8

2.8

4.4

7.0

11.0

17.6

27.5

2.2

5.6

7.5

11.2

16.8

28.1

Air tightness test

0.5-0.7

working temperature

PTEE≤150℃ PPL E≤300℃ carbon fibre≤350℃

Applicable media

C:Water, oil and steam P: nitric acid (temperature ≤ 200 ℃) r: acetic acid (temperature ≤ 200 ℃)



Material of parts
Part name Material Science
Material code

Body bonnet

WCB

ZGOOCr17Ni14Mo2(CF3M)

ZG1Cr18Ni9Ti(CF8)

ZG1Cr18Ni12Mo2Ti(CF8M)

sphere

2Cr13

ZGOOCr17Ni14Mo2(CF3M)

ZG1Cr18Ni9Ti(CF8)

ZG1Cr18Ni12Mo2Ti(CF8M)

Stem

2Cr13

316L

1Cr18Ni9Ti(304)

1Cr18Ni12Mo2Ti(316)

Sealing surface of valve seat

PTFE、Carbon fiber + PTFE, p-polyphenylene

Stud nut

35 35CrMoA(B7) 45(2H)

2Cr13(420) 1Cr18Ni9 1Cr17Ni2(431)

filler

V-type PTFE, flexible graphite



Service commitment

(1) In strict accordance with the requirements of the contract, to provide qualified products that meet the design standards.
(2) Strictly check and control the quality of raw materials, components and accessories.
(3) Ensure that the processing technology of the equipment is perfect and the detection means are complete. Products will never leave the factory with defects.
(4) Be fully responsible for the supply, quality, equipment performance, technical interface, service and other aspects of the subcontractor. The key parts specified in the contract must meet the requirements of relevant qualification and be approved by the demander.
(5) Provide relevant department standards and drawings to the supervision unit according to the contract, provide convenience for the supervision, and inform the demander and the supervision representative of the shutdown parts of the supervision equipment 7 days in advance. The supervision assigned by the demander is to urge us to produce qualified products according to the standards, but it does not reduce all our quality responsibilities.
(6) The quality defects in the process of equipment manufacturing shall be timely reported to the demander and the supervision representative without concealment. If the equipment defect exceeds the standard specified in the contract, the supplier shall replace it unconditionally. In the process of installation and trial operation, if there are quality problems of the equipment, the problems should be dealt with first, and then the responsibilities should be clarified. Everything should be based on the requirements of project progress.
(7) In case of any accident, we will replace and repair the supplied equipment free of charge as soon as possible until the demander is satisfied.
(8) In case of missing parts or missing parts caused by other reasons in the process of unpacking, we are responsible for making up the missing parts for free as soon as possible. We shall be responsible for the quality problems found during the installation and commissioning of the equipment and in the operation of the equipment in the future.
(9) Provide the demander with all technical data and drawings according to the contract on time. Have the obligation to invite the demander to participate in our technical design audit when necessary.
(10) According to the time required by the demander to the site for technical services, guide the demander to install, trial run and trial production according to the requirements of our technical data and drawings.
(11) For the supporting equipment related to the contract equipment purchased by the demander first, we will actively provide the technology meeting the equipment interface requirements
Conditions and information.
(12) Strictly implement the minutes or agreements of the meeting held by both parties on relevant issues.
(13) According to the provisions of the contract, free business training courses on equipment installation, commissioning, use and maintenance technology shall be held for the demander.
(14) Strengthen pre-sale, in-sales and after-sales services, and implement "24-hour service", "advanced service", "whole process service" and "life-long service" in the whole process of product manufacturing, installation, commissioning and overhaul.
(15) After receiving the quality problem information reflected by the demander, reply within 24 hours or send service personnel to the site as soon as possible, so as to ensure that the user is not satisfied with the quality and the service does not stop.
(16) Free for the product to provide lifelong maintenance, where our factory users, have established a detailed user file, our factory after-sales service. Regular return visit and inspection system are implemented to guide the daily maintenance of users, and timely point out and solve possible faults.
(17) At any time to meet the demander's requirements for spare parts, lifetime to provide users with high-quality and low-cost spare parts.
