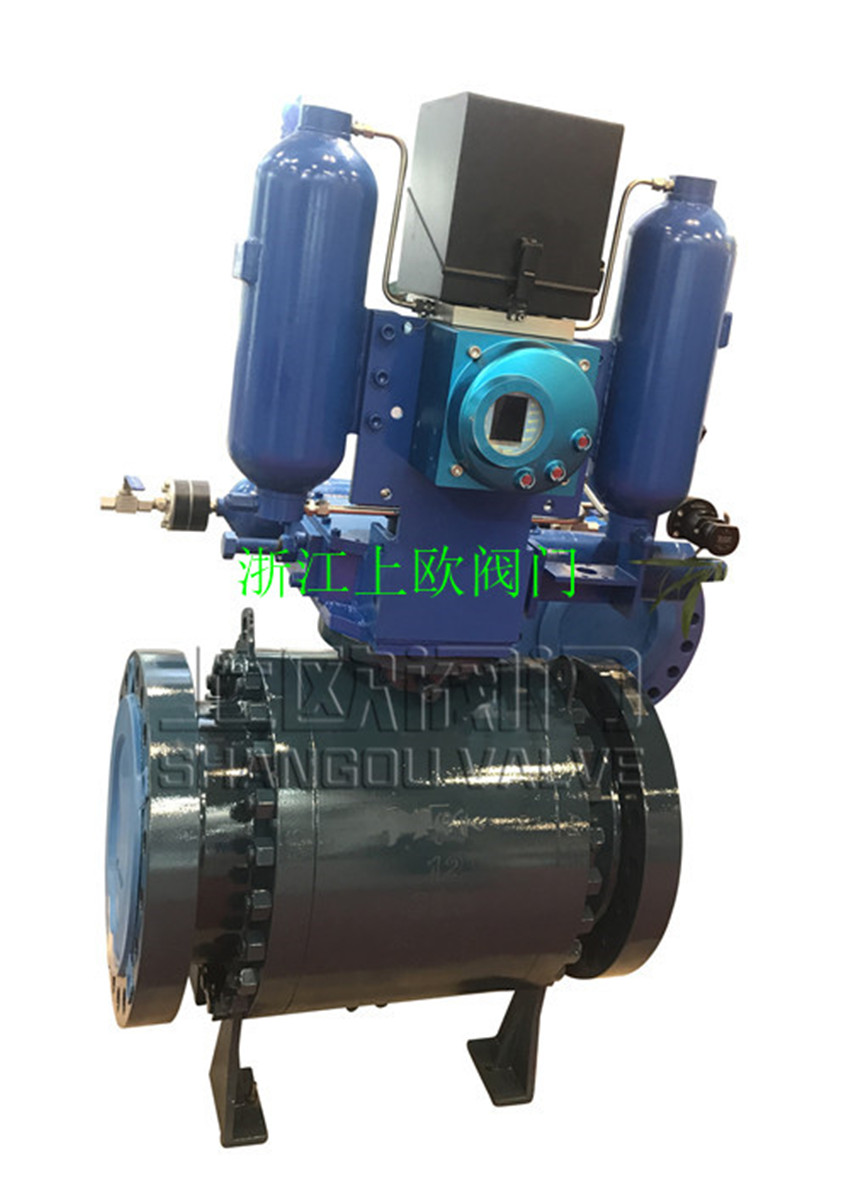

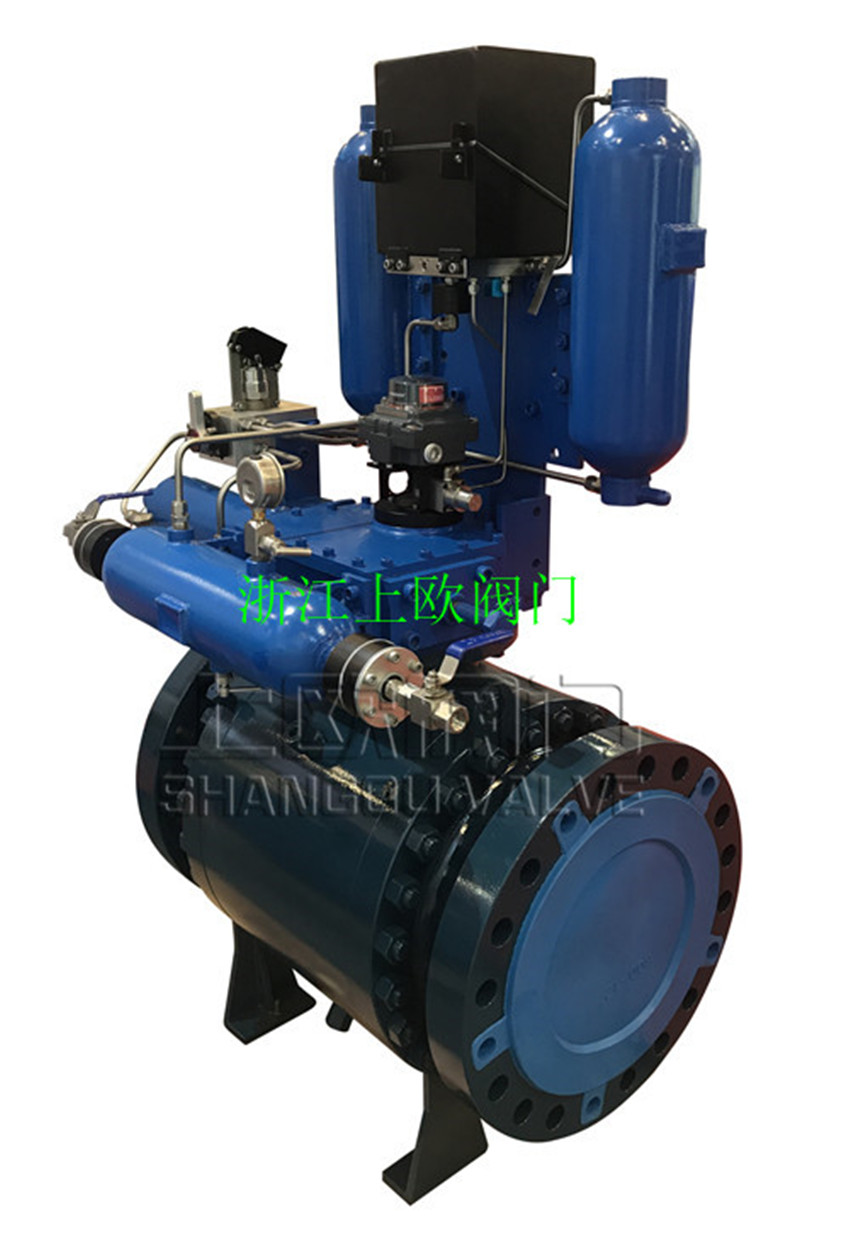

The gas-liquid ball valve produced by Shanghai Europe valve is composed of pneumatic hydraulic actuator and high-pressure ball valve. The power source of the pneumatic hydraulic actuator is directly from the high-pressure natural gas of the independent pipeline. After being filtered, the natural gas is directly stored in the gas storage tank. The integrated module, large flow and high pressure design technology is adopted to make less control elements bear high pressure, prolong the service life of seals, reduce piping and system leakage points, so as to improve the overall safety of the equipment. The hydraulic system has the advantages of strong transmission rigidity, hard compression, stable transmission and easy sealing. Gas has the advantage of high compression ratio. The pneumatic hydraulic actuator combines the advantages of gas and liquid perfectly through the conversion of gas-liquid transmission mode. High pressure gas enters into the gas-liquid tank through the control system for conversion, and the constant pressure hydraulic oil in the tank is pressed into the corresponding hydraulic piston cylinder. At the same time, the hydraulic oil of the hydraulic piston cylinder flows back to another gas-liquid tank. The piston action drives the actuator to drive the valve to open or close smoothly. The performance of pneumatic hydraulic actuator is stable and reliable. The whole travel time of the actuator can be adjusted by adjusting the flow of hydraulic oil.

Connection mode	Flange butt welding, etc
size(mm)	2″～40″DN50-1000（DiameterFull Bore）
	3″～42″DN80-1050(Reducing diameterReducedbore)
Applicable temperature(℃)	-96～+300℃
Nominal pressure(MPa)	ANSI CLASS150、300、600、900、1500、2500
body material	Carbon steel, stainless steel, alloy steel, etc
Valve core material	Carbon steel + ENP, stainless steel, alloy steel, etc
Valve stem material	Stainless steel, alloy steel, etc
seat material	PTFE、 R.PTFE、PEEK、NYLON 、 PPL
Scope of application	It is suitable for petroleum, petrochemical, etc
Applicable media	Gas, natural gas and other gas source media

characteristic	It has all the features of fixed ball valve
	The pressure of pipeline medium is used as the pressure source of actuator
	Realize the function of emergency automatic cut-off of pipeline ultra-high pressure, ultra-low pressure and pipeline rupture
	It can be connected with hydraulic control system to realize various simple and complex valve control
	Solar energy can be used as control power supply to realize field operation and remote control
	Meet the requirements of high torque output, Zui high torque 90000 n · M

(1) In strict accordance with the requirements of the contract, to provide qualified products that meet the design standards.
(2) Strictly check and control the quality of raw materials, components and accessories.
(3) Ensure that the processing technology of the equipment is perfect and the detection means are complete. Products will never leave the factory with defects.
(4) Be fully responsible for the supply, quality, equipment performance, technical interface, service and other aspects of the subcontractor. The key parts specified in the contract must meet the requirements of relevant qualification and be approved by the demander.
(5) Provide relevant department standards and drawings to the supervision unit according to the contract, provide convenience for the supervision, and inform the demander and the supervision representative of the shutdown parts of the supervision equipment 7 days in advance. The supervision assigned by the demander is to urge us to produce qualified products according to the standards, but it does not reduce all our quality responsibilities.
(6) The quality defects in the process of equipment manufacturing shall be timely reported to the demander and the supervision representative without concealment. If the equipment defect exceeds the standard specified in the contract, the supplier shall replace it unconditionally. In the process of installation and trial operation, if there are quality problems of the equipment, the problems should be dealt with first, and then the responsibilities should be clarified. Everything should be based on the requirements of project progress.
(7) In case of any accident, we will replace and repair the supplied equipment free of charge as soon as possible until the demander is satisfied.
(8) In case of missing parts or missing parts caused by other reasons in the process of unpacking, we are responsible for making up the missing parts for free as soon as possible. We shall be responsible for the quality problems found during the installation and commissioning of the equipment and in the operation of the equipment in the future.
(9) Provide the demander with all technical data and drawings according to the contract on time. We are obliged to invite the demander to join us when necessary
Technical design audit.
(10) According to the time required by the demander to the site for technical services, guide the demander to install, trial run and trial production according to the requirements of our technical data and drawings.
(11) For the supporting equipment related to the contract equipment purchased by the demander first, we will actively provide the technical conditions and data meeting the equipment interface requirements.
(12) Strictly implement the minutes or agreements of the meeting held by both parties on relevant issues.
(13) According to the provisions of the contract, free business training courses on equipment installation, commissioning, use and maintenance technology shall be held for the demander.
(14) Strengthen pre-sale, in-sales and after-sales services, and implement "24-hour service", "advanced service", "whole process service" and "life-long service" in the whole process of product manufacturing, installation, commissioning and overhaul.
(15) After receiving the quality problem information reflected by the demander, reply within 24 hours or send service personnel to the site as soon as possible, so as to ensure that the user is not satisfied with the quality and the service does not stop.
(16) Free for the product to provide lifelong maintenance, where our factory users, have established a detailed user file, our factory after-sales service. Regular return visit and inspection system are implemented to guide the daily maintenance of users, and timely point out and solve possible faults.
(17) At any time to meet the demander's requirements for spare parts, lifetime to provide users with high-quality and low-cost spare parts.
