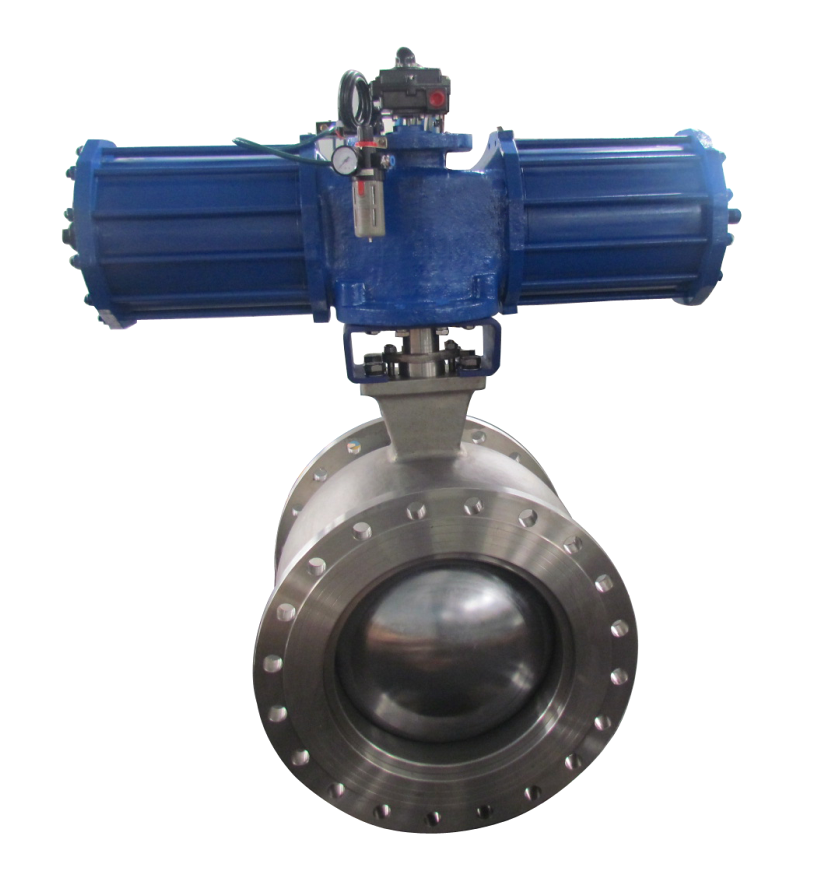

Main advantages of hemispherical eccentric valve:
1. The valve seat is provided with a matching structure of the outer step and the inner step of the valve body to prevent the ball and the valve seat from jamming or detaching.
2. When the eccentric body is used for rotating movement, it will be automatically centered in the common track. The closer the valve is closed, the tighter it will be. When the valve is opened and closed, the ball and the valve seat will be separated to eliminate the wear of the sealing surface.
3. The non-metallic elastic material is embedded in the metal valve seat, and the metal sealing surface of the valve seat is well protected.
4. The shearing action between the ball and the valve seat with hemispherical incision is especially suitable for medium containing fiber and tiny fixed particles.
5. When it is fully opened, the flow capacity is large and the pressure loss is small. And the medium will not deposit in the valve body cavity.

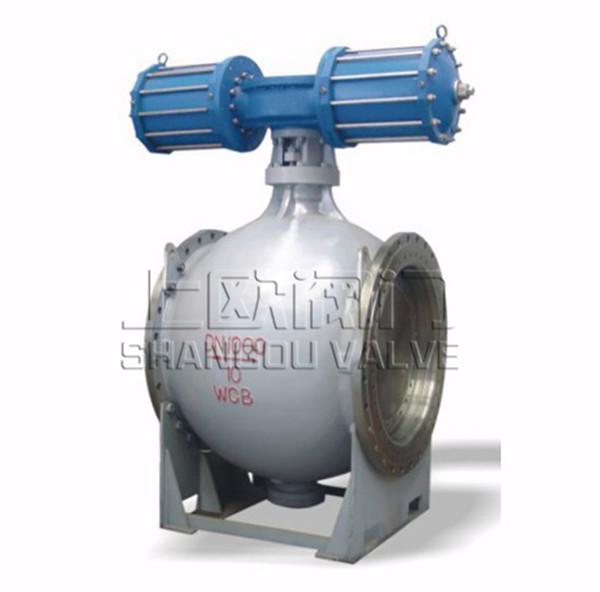

Product features

Aw pneumatic actuator features and technical parameters click this link
Function and usage of pneumatic actuator and accessories

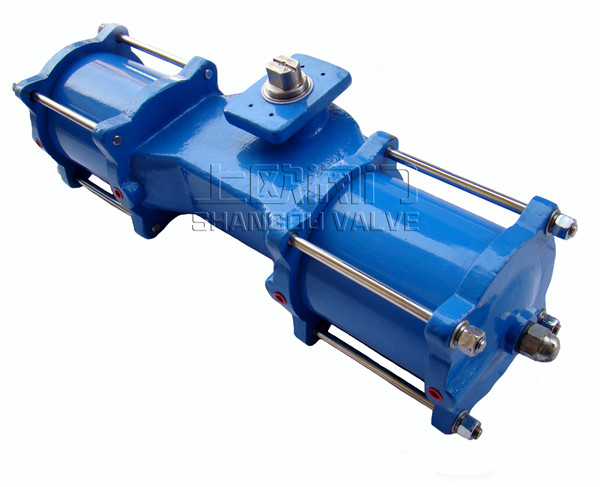

1. Aw pneumatic actuator is divided into double acting type and single acting type (spring return). It has two separate cylinders, which is easy to manufacture large size cylinder block. Meet the needs of various large rotary valves.
2. The output torque is large, and the action is flexible and stable; the inner wall of cylinder block and piston shaft are plated with hard chromium, which has good wear resistance; all sliding parts are equipped with oil-free lubrication shaft and guide ring to reduce friction coefficient and prolong service life. The U-shaped curve characteristic of AW pneumatic actuator is more suitable for large diameter ball valve and butterfly valve.
3. Rotation angle: double acting type = 90 ° single acting type = 90 ° adjustable angle ± 5 ° from both ends
4. Working environment temperature: - 20 ~ 90 ℃. 5. Air source: filtered, dried or lubricated clean air, Zui atmospheric pressure 0.4MPa, Zui atmospheric pressure 1.0MPa.

Structure length and flange size of eccentric hemisphere ball valve
caliber	L	D	D1	D2	N-φ	b	f
DN50	178	160	125	100	4-18	16	3
DN65	190	180	145	120	4-18	18	3
DN80	203	195	160	135	8-18	20	3
DN100	229	215	180	155	8-18	20	3
DN125	254	245	210	185	8-18	22	3
DN150	267	280	240	210	8-23	24	3
DN200	292	335	295	265	12-23	26	3
DN250	330	405	335	320	12-25	30	3
DN300	356	460	410	375	12-25	30	4
DN350	381	520	470	435	16-25	34	4
DN400	406	580	525	485	16-30	36	4
ND500	457	705	650	608	20-34	44	4
DN600	508	840	770	718	20-41	48	4

Choose pneumatic valve to determine the following parameters
Product Name:
Product model:
Nominal pressure:
Nominal diameter:
Valve body material:
Connection mode:
Pneumatic actuator series: at series imported from Italy (standard), GT series imported from America, aw large torque cylinder
Type: double acting cylinder, single acting cylinder (air on or off)
Power supply of solenoid valve: AC220 V, 380 V, 110 V, DC 24 v
Protection type: ordinary type, explosion-proof type
Accessories (optional): two position five way solenoid valve (standard configuration), air filtration pressure reducing valve (standard configuration), limit switch buzzer (standard configuration), manual hand wheel clutch mechanism, electric valve positioner, pneumatic accelerator, retaining valve, pneumatic amplifier
Media name:
Medium temperature:
Service pressure:
