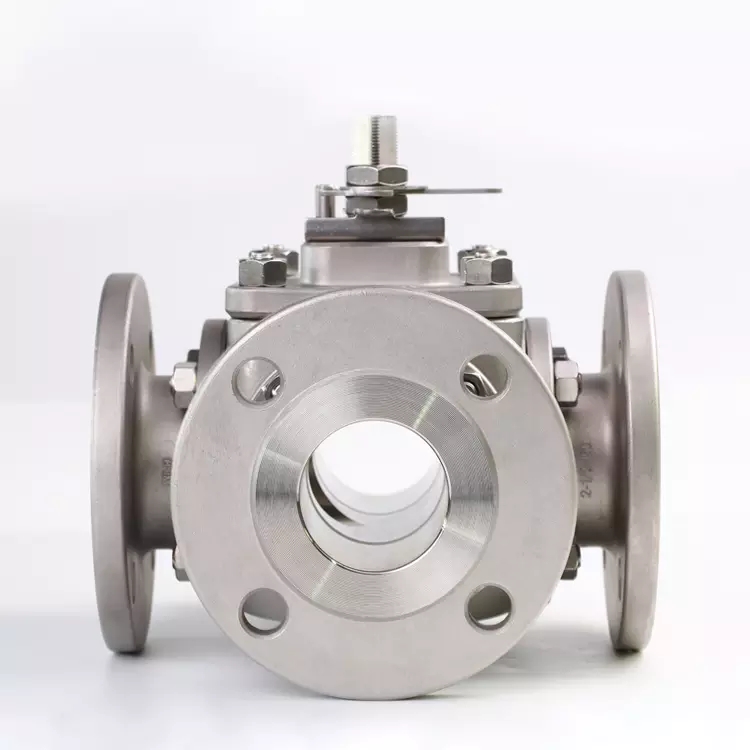

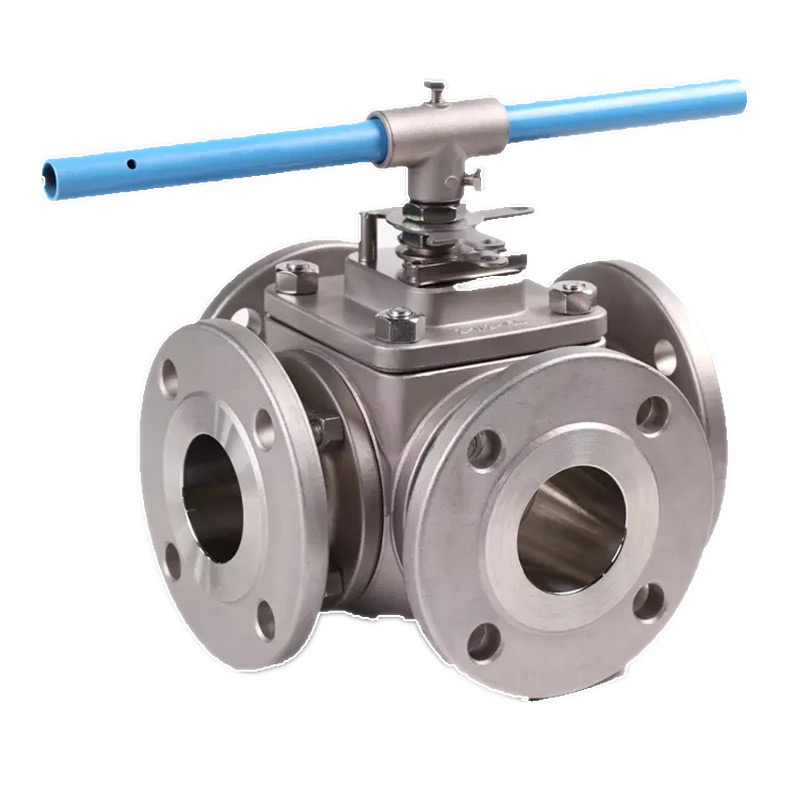

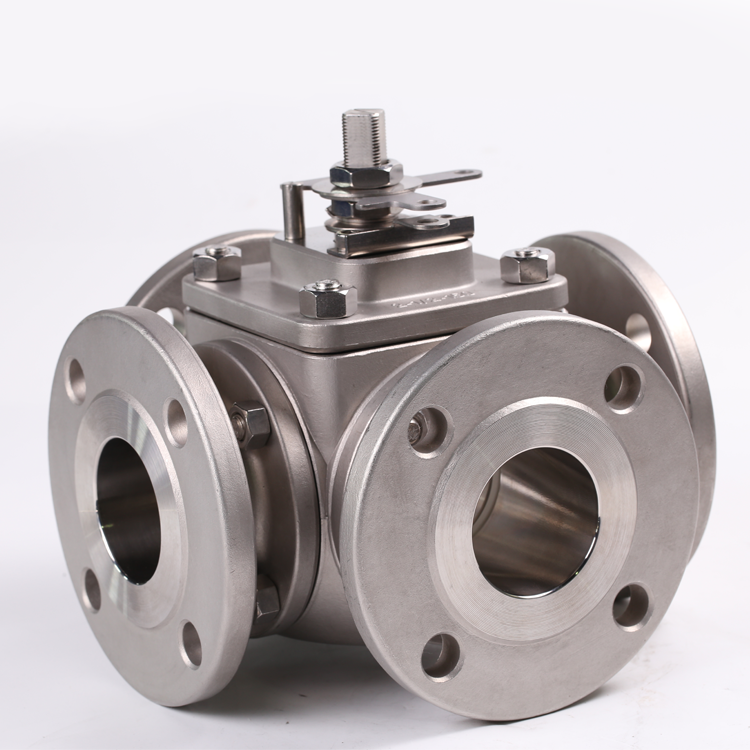

1The manual part of q46f soft seal four-way ball valve can be made of steel plate or cast by stainless steel. The handle is equipped with a limit structure to set the limit at the opening and closing positions of the valve. When the valve is used on the key device, the limit block is provided with a lock hole to lock the switch position to avoid misoperation. The handle is clearly marked with opening and closing.
2. The valve stem of q46f ball valve is forged and modulated by a182f (1Cr13), and the hardness reaches hb220-250. The valve rod is connected with the handle through flat key or spline or square wedge, which has strong universality and is easy to disassemble and assemble. The valve rod is equipped with anti blowing structure.
3. The packing of q46f ball valve adopts braided, flexible graphite sealing ring or tetrafluoroene sealing ring, which makes the valve stem reliable sealing under certain lubrication conditions.
4. According to the requirements, the ball valve can be designed as an anti-static structure, and conductive springs are set between the ball and the valve stem, and between the valve stem and the valve body, so as to avoid the ignition of flammable substances by static electricity and ensure the safety of the system.
5. The seal pairs have various forms. According to different working conditions, soft seal, hard seal, fireproof valve seat and other structures can be selected; floating ball type is below DN 150, and fixed ball form is below DN200.
6. The auxiliary sealing structure can be set at the valve seat of the ball valve, and the grease injection valve can be installed at the valve seat and the valve rod, which can be temporarily sealed in case of emergency, and the valve rod can be lengthened according to the need to be suitable for the place of buried laying.

Q46FMain parts materials of soft seal four way ball valve

Body cover	GB	WCB		ZGlCrl8Ni9Ti		ZGOCfl8Nil2M02Ti
	ASTM	WCB		CF8		CF8M
sphere	GB	2Cfl3		1Cfl8Ni9Ti		0Cfl8Ni12M02Ti
	ASTM	420		304		316
Stem	GB	2Crl3		1Crl8Ni9Ti		0Crl8Ni12M02Ti
	ASTM	420		304		316
valve seat Sealing surface	GB	teflon	Para polyphenylene	teflon	Para polyphenylene	teflon	Para polyphenylene
	ASTM
filler	GB		Flexible graphite		Flexible graphite		Flexible graphite
	ASTM
Bolt	GB	35		0Crl8Ni9		0Crl8Ni9
	ASTM	A193B7		A320-B8		A320-B8
Nut	GB	45		0Cfl8Ni9		0Crl8Ni9
	ASTM	A1942H		A194-8		A194-8



Q46FMain connection dimensions of soft seal four way ball valve

Nominal pressure PN	Nominal diameter DN	Dimensions(mm)
		L	L0	D	K	d	Y	b	z-do	Hw	Hd
1．6MPa	50	260	130	165	125	100		16	4-ф18	205	265
	65	320	160	185	145	120		18	4-ф18	245	295
	80	320	160	200	160	135		20	8-ф18	305	345
	100	370	185	220	180	155		20	8-ф18	340	420
	125	510	255	250	210	185		22	8-ф18	425	465
	150	510	255	285	240	2'0		24	8-ф23	450	505
	200	580	290	340	295	265		26	12-ф23	480	525
	250	670	335	405	355	320		30	12-ф25	530	565
	300	760	380	460	410	375		30	12-ф25	585	630
	350	850	425	520	470	435		34	16-ф25	625	675
	400	980	490	580	525	485		36	16-ф30	670	710
	450	1080	540	640	585	545		40	20-ф30	705	770
	500	1220	610	715	650	608		44	20-ф34	765	825
	600	1360	680	840	770	718		48	20-ф41	840	945
	700	1750	875	910	840	788		50	24-ф41	1050	1110
	800	1850	925	1025	950	898		52	24-ф41	1125	1220
	900	2050	1025	1125	1050	998		54	28-ф41	1260	1315
	1000	2150	1075	1255	1170	1110		56	28-ф48	1325	1385
	1200	2450	1225	1485	1390	1325		58	32-ф54	1395	1450
2．5MPa	50	260	130	165	125	100		20	4-ф18	205	265
	65	320	160	185	145	120		22	8-ф18	245	295
	80	320	160	200	160	135		22	8-ф18	305	345
	100	370	185	230	190	160		24	8-ф23	340	420
	125	510	255	270	220	188		28	8-ф25	405	465
	150	510	255	300	250	218		30	8-ф25	450	505
	200	580	290	360	310	278		34	12-ф25	480	525
	250	670	335	425	370	332		36	12-ф30	530	565
	300	760	380	485	430	390		40	16-ф30	585	630
	350	850	425	555	490	448		44	16-ф34	625	675
	400	980	490	620	550	505		48	16-ф34	670	710
	450	1080	540	670	600	555		50	20-ф34	705	770
	500	1220	610	730	660	610		52	20-ф41	765	825
	600	1360	680	845	770	718		56	20-041	840	945
	700	1750	875	960	875	815		60	24-ф48	1050	1110
	800	1850	925	1085	990	930		64	24-ф48	1125	1220
	900	2050	1025	1185	1090	1025		66	28-ф54	1260	1315
	1000	2150	1075	1320	1210	1140		68	28-ф58	1325	1385
	1200	2450	1225	1520	1420	1350		72	32-ф58	1395	1450
4．0MPa	50	260	130	165	125	100	88	20	8-ф18	245	285
	65	320	160	185	145	120	110	22	8-ф18	265	315
	80	320	160	200	160	135	121	22	8-ф18	320	365
	100	370	185	235	190	160	150	24	8-ф23	355	465
	125	510	255	270	220	188	176	28	8-ф25	425	495
	150	510	255	300	250	218	204	30	8-ф25	470	535
	200	580	290	375	320	282	260	38	12-ф30	480	565
	250	670	335	450	385	345	313	42	12-ф34	530	605
	300	760	380	515	450	408	364	46	16-ф34	585	675
	350	850	425	580	510	465	422	52	16-ф34	625	705
	400	980	490	660	585	535	474	58	16-ф41	670	745
	450	1080	540	685	610	560	524	60	20-ф41	705	795
	500	1220	610	755	670	612	576	62	20-ф48	765	855
	600	1360	680	890	795	730	678	62	20-ф54	840	985
C1aSS150	2"	260	130	152	120．5	92		16	伞φ19	205	265
	2 1/2"	320	160	178	139．5	105		18	4-ф19	245	295
	3"	320	160	190	152．5	127		19	4-ф19	305	345
	4"	370	185	229	190．5	157		24	8-ф19	340	420
	5"	510	255	254	216	186		24	8-ф22	425	465
	6"	510	255	279	241．5	216		26	8-ф22	450	505
	8"	580	290	343	298．5	270		29	8-ф22	530	525
	10"	670	335	406	362	324		31	12-ф25	630	565
	12"	760	380	483	432	381		32	12-ф25	680	630
	14"	850	425	533	476	413		35	12-ф29	625	675
	16"	980	490	597	540	470		37	16-ф29	670	710
	18"	1080	540	635	578	533		40	16-ф32	705	770
	20"	1220	610	699	635	584		43	20-ф32	765	825
	24"	1360	680	813	749．5	692		48	20。ф35	840	945
	28"	1750	875	927	864	800		71	28-ф35	1050	1110
	32"	1850	925	1060	978	914		81	28-ф41	1125	1220
	36"	2050	1025	1168	1086	1022		90	32-ф41	1260	1315
	40"	2150	1075	1289	1200	1124		90	36-ф41	1325	1385
	48"	2450	1225	1511	1422	1359		108	44-ф41	1395	1450



1. Be careful in installation and construction, and do not hit the valve.
2. Before installation, the ball valve should be inspected to check the specification and model, and identify whether there is damage, especially for the valve stem. Also turn a few times to see if it is skewed, because during transportation, it is easy to bump the stem. Also remove the debris in the valve.
3. When lifting the ball valve, the rope should not be tied to the hand wheel or the valve stem to avoid damage to these parts, but should be tied to the valve body.
4. The pipeline connected to the ball valve must be cleaned. Compressed air can be used to blow away iron oxide chips, mud and sand, welding slag and other impurities. These debris, not only easy to scratch the sealing surface of the ball valve, in which large particles of debris (such as welding slag), but also block the small valve, so that its failure.
5. The position of valve handle rotation should be reserved during installation. 6. The ball valve cannot be used as throttling. 7. The ball valve with transmission mechanism shall be installed vertically.
