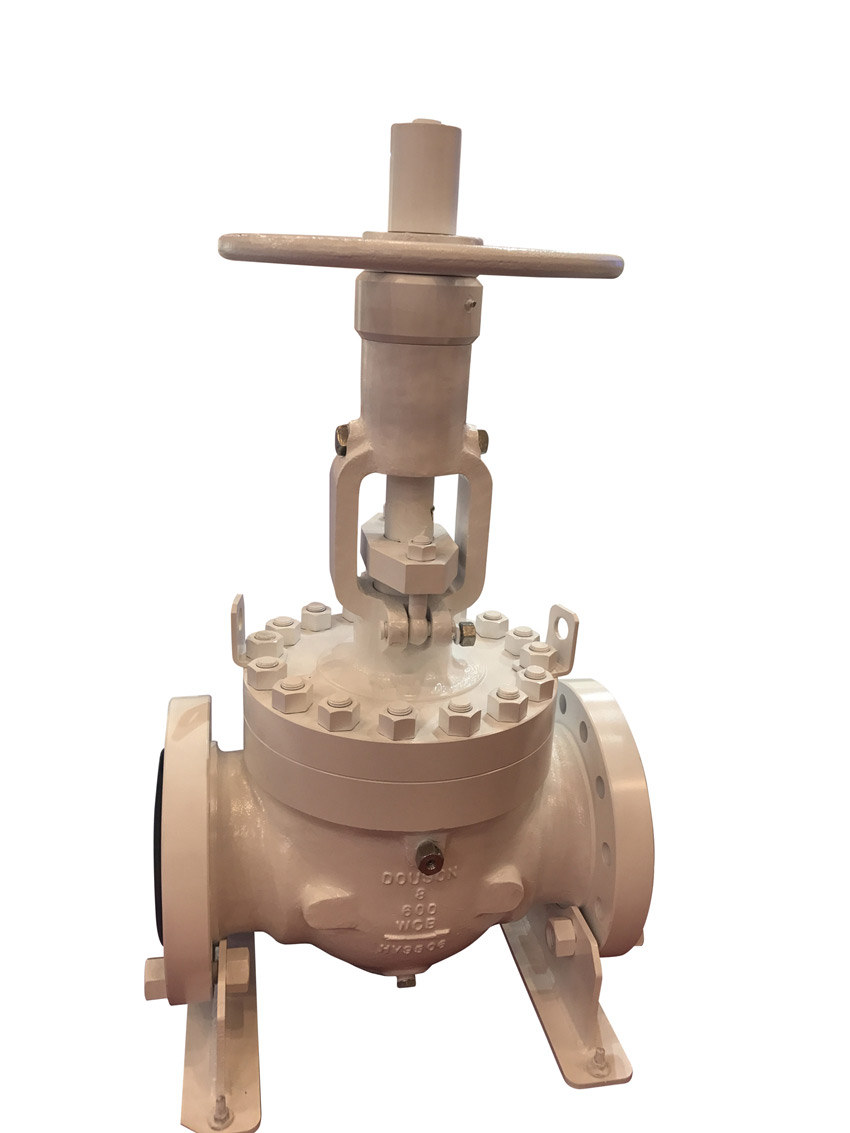

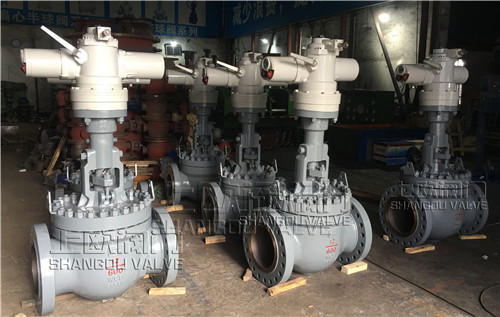

GQ947HT-type rail type steel electric ball valve is suitable for petrochemical, LPG storage, refinery, natural gas, compressor system, oil and gas transmission pipeline, light industry, textile and other industries.
GQ947HT-type rail type steel electric ball valve is suitable for petrochemical, LPG storage, refinery, natural gas, compressor system, oil and gas transmission pipeline, light industry, textile and other industries.
Structure length: JB / t7745 GB / t12221
Connecting flange: GB / t9113 JB / 79 hg20592
Butt welding end: GB / t12224
Inspection and test: JB / t9092
1. Open and close without friction. This function completely solves the problem of traditional valve sealing affected by mutual friction between sealing faces
2. Top mounted structure. The valve installed on the pipeline can be directly inspected and maintained online. It can effectively reduce the shutdown of the device and reduce the production cost
3. Single seat design. The problem that the medium in the valve chamber is affected by abnormal pressure rise is eliminated
4. Low torque design. The valve stem of special structure design can be opened and closed easily with a small hand wheel valve
5. Wedge seal structure. The valve is sealed by the mechanical force provided by the valve stem to press the ball wedge onto the valve seat. The sealing performance of the valve is not affected by the change of pipeline pressure difference, and the sealing performance is reliably guaranteed under various working conditions
6. Self cleaning structure of sealing surface. When the ball tilts away from the valve seat, the fluid in the pipeline will pass through the sealing surface of the ball evenly in 360 degrees. It not only eliminates the local scour of high-speed fluid on the valve seat, but also washes away the accumulation on the sealing surface to achieve the purpose of self-cleaning
model | GQ947H-16C | GQ947H-25C | |
working pressure(MPa) | 1.6 | 2.5 | |
working temperature(℃) | -190~550 | ||
Applicable media | Water, steam and oil | ||
Material Science | Valve body and cover | WCB | |
Stem | 2Cr13 | ||
sphere | WCB+HCr/STL | ||
valve seat | 25 | ||
filler | Flexible graphite |
Pressure level | Main dimensions | Nominal diameter | |||||||||||||||
25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | ||
PN1.6MPa | L | 100 | 180 | 200 | 230 | 290 | 310 | 350 | 480 | 480 | 600 | 730 | 850 | 980 | 1100 | 1200 | 1250 |
H | 24 | 260 | 307 | 360 | 410 | 483 | 512 | 581 | 581 | 617 | 672 | 723 | 758 | 791 | 828 | 870 | |
㎏ | 9.5 | 16 | 19 | 28 | 30 | 41 | 55 | 115 | 115 | 215 | 270 | 385 | 502 | 876 | 980 | 1240 | |
PN2.5MPa | L | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 480 | 480 | 600 | 730 | 850 | 980 | 1100 | 1200 | 1250 |
H | 260 | 280 | 320 | 260 | 430 | 490 | 525 | 604 | 604 | 642 | 695 | 742 | 781 | 815 | 864 | 905 | |
㎏ | 9.5 | 16 | 19 | 28 | 30 | 45 | 59 | 121 | 121 | 230 | 289 | 402 | 540 | 913 | 1120 | 1280 | |
PN4.0MPa | L | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 480 | 480 | 600 | 730 | 850 | 980 | 1100 | 1200 | 1250 |
H | 260 | 280 | 320 | 360 | 436 | 492 | 527 | 649 | 649 | 701 | 750 | 750 | 790 | 832 | 875 | 910 | |
kg | 10 | 17 | 20 | 25 | 32 | 45 | 59 | 115 | 115 | 2130 | 295 | 402 | 540 | 913 | 1124 | 348 | |
PN6.4MPa | L | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 480 | 480 | 600 | 730 | 850 | 980 | 1100 | - | - |
H | 280 | 300 | 329 | 365 | 450 | 509 | 541 | 725 | 725 | 781 | 790 | 806 | 821 | 858 | - | - | |
kg | 10 | 17 | 20 | 25 | 32 | 52 | 68 | 106 | 168 | 281 | 355 | 498 | 689 | 1134 | - | - | |
150Lb | L | 127 | 140 | 165 | 178 | 190 | 203 | 229 | 356 | 394 | 457 | 533 | 910 | 686 | 762 | 964 | 914 |
300Lb | L | 165 | 178 | 190 | 216 | 214 | 283 | 305 | 381 | 403 | 502 | 568 | 648 | 762 | 838 | 914 | 991 |
600Lb | L | 216 | 229 | 241 | 292 | 330 | 356 | 432 | 508 | 559 | 660 | 787 | 838 | 889 | 991 | 1092 | 1194 |
