Location:Home > Product Center > Ball Valve > Q641F Type B pneumatic flange two piece ball valve PN16~PN25

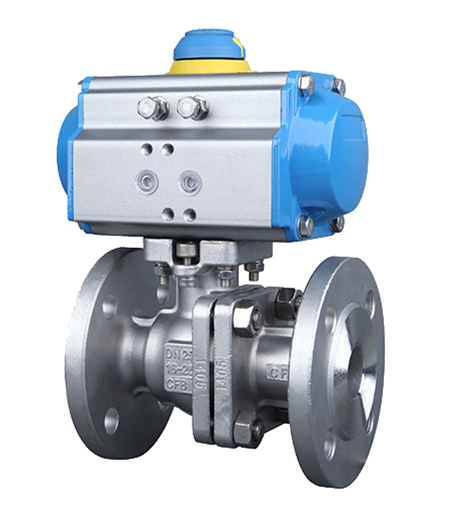

Q641F Two piece ball valve PN16 ~ PN25 is composed of piston type pneumatic actuator and ball valve. Pneumatic flange ball valve has the advantages of compact structure, small volume, reliable operation, low flow resistance coefficient, good sealing, easy maintenance, convenient installation and strong adaptability.
Q641FTwo piece ball valve PN16 ~ PN25 is composed of piston type pneumatic actuator and ball valve. Pneumatic flange ball valve has the advantages of compact structure, small volume, reliable operation, low flow resistance coefficient, good sealing, easy maintenance, convenient installation and strong adaptability. Pneumatic flange ball valve is especially suitable for the medium is viscous, containing particles, fiber properties. Pneumatic flanged ball valves are widely used in petroleum, chemical, teaching equipment, light industry, high pressure equipment, pharmaceutical, paper making and other industrial automation control systems, for remote centralized control or local control.
Nominal diameterDN(mm) | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
---|---|---|---|---|---|---|---|---|---|---|---|---|
Rated flow coefficientKV | 21 | 38 | 72 | 112 | 170 | 273 | 384 | 512 | 940 | 1452 | 2222 | 3589 |
Nominal pressure(MPa) | PN1.6、2.5、4.0、6.4 MPa;ANSI 150、300LB | |||||||||||
Allowable differential pressure(MPa) | ≤Nominal pressure | |||||||||||
Valve body form | Two stage cast ball valve | |||||||||||
Connection form | Flange type, welding type and thread type | |||||||||||
Spool form | "O" type spherical valve core | |||||||||||
Packing | V-type PTFE packing, flexible graphite packing, etc | |||||||||||
Flow characteristics | Approximate quick opening type | |||||||||||
Range of motion | 0~90° | |||||||||||
Leakage Q | According to GB / t4213-92, less than rated kv0.01% | |||||||||||
Adjustable range | 250:1 | 350:1 | ||||||||||
Configuration of actuator | It can be equipped with GT, Sr, St, at, AW series pneumatic actuators | |||||||||||
control mode | 20 mA control switch (4-position control switch) |
Part name | Material Science | |||
---|---|---|---|---|
WCB | 304(CF8) | 316(CF8M) | 316L(CF3M) | |
sphere | 2Cr13+Nitriding treatment | 304 | 316 | 316L |
Stem | 2Cr13 | 304 | 316 | 316L |
Seat sealing ring | PTFE (polytetrafluoroethylene), ppl (para polyphenylene), metal seal (cemented carbide) | |||
filler | V-type PTFE packing, flexible graphite |

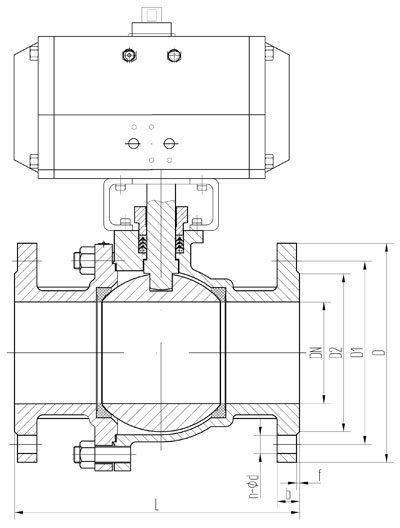

Nominal diameter DN(mm) |
Main dimensions | Flange size | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
PN1.6MPa | PN2.5MPa | |||||||||||
L | H | H1 | L1 | D | D1 | D2 | n-φd | D | D1 | D2 | n-φd | |
15 | 130 | 185 | / | 140 | 95 | 65 | 46 | 4-14 | 95 | 65 | 46 | 4-14 |
20 | 140 | 191 | / | 140 | 105 | 75 | 45 | 4-14 | 105 | 75 | 56 | 4-14 |
25 | 150 | 193 | / | 140 | 115 | 85 | 65 | 4-14 | 115 | 85 | 65 | 4-14 |
32 | 165 | 212 | / | 164 | 140 | 100 | 76 | 4-18 | 140 | 100 | 76 | 4-18 |
40 | 180 | 217 | / | 164 | 150 | 110 | 84 | 4-18 | 150 | 110 | 84 | 4-18 |
50 | 200 | 260 | 102 | 190 | 165 | 125 | 99 | 4-18 | 165 | 125 | 99 | 4-18 |
65 | 220 | 293 | 114 | 210 | 185 | 145 | 118 | 4-18 | 185 | 145 | 118 | 8-18 |
80 | 250 | 323 | 127 | 247 | 200 | 160 | 132 | 8-18 | 200 | 160 | 132 | 8-18 |
100 | 280 | 382 | 152 | 276 | 220 | 180 | 156 | 8-18 | 235 | 190 | 156 | 8-22 |
125 | 320 | 468 | 184 | 348 | 250 | 210 | 184 | 8-18 | 270 | 220 | 184 | 8-26 |
150 | 360 | 510 | 219 | 378 | 285 | 240 | 211 | 8-22 | 300 | 250 | 211 | 8-26 |
200 | 400 | 655 | 273 | 524 | 340 | 295 | 266 | 12-22 | 360 | 310 | 274 | 12-26 |
250 | 630 | / | 360 | / | 405 | 355 | 319 | 12-26 | 425 | 370 | 330 | 12-30 |
300 | 750 | / | 395 | / | 460 | 410 | 370 | 12-26 | 485 | 430 | 389 | 16-30 |
