We always firmly believe that the long-term plan, quality first, we adhere to the quality first, achievement of high-quality valve, we create first-class service with first-class quality. The company mainly produces gate valves, ball valves, butterfly valves, high temperature valves, high pressure valves, power station valves, industrial valves and other high-quality valves. If you need more information about the products of ash discharge ball valve, welcome to visit Zhejiang shangou valve product classification → best quality, first-class service, shangou will create more value for you!

Valve model: q347mf, q947mf, q647mf
Connection type: flange
Product material: carbon steel
Nominal diameter: DN 15-600 (mm) mm
Suitable medium: steam
Pressure environment: 0.6-40
Working temperature: normal temperature
Valve standards: national standard, German standard, Japanese standard, British standard, American Standard
Flow direction: bidirectional

1. Design and manufacture: gb12237-89, api608, API 6D, JPI 7s-48, BS5351, din3357.
2. Flange dimensions: JB / t74-90 (jb74-90), gb9112-9131, hgj44-76, sh3406, ANSI B16.5, JIS b2212-2214, NF e29-211, din2543.
3. Structural length: gb12221-89, ANSI B16.10, JIS B2002, NF e29-305, din3202.
4. Main test: JB / T 9092, API 598.

The ash discharge ball valve is evolved from the stop valve. It has the same rotation 90 degree lifting action, the difference is that the cock body is a ball, with a circular through hole or channel through its axis. The ratio of the sphere to the port should be such that when the ball rotates 90 degrees, it should be spherical at the inlet and outlet, thus cutting off the flow.
Purpose of dust discharge ball valve:
Ball valve is widely used in oil, natural gas, coal and ore mining, refining and processing and pipeline transportation system; in chemical products, medicine and food production; in hydropower, thermal power and nuclear power power power production system; in urban and industrial enterprise water supply and drainage, heating, and gas supply system; in farmland drainage and irrigation system; in gold production system It is an important mechanical product closely related to production and construction, national defense construction and people's life. The ball valve is sealed in all kinds of pipeline system, which is used to cut off or connect the medium flow, so that the medium can be transported to each designated point according to the predetermined procedure.

valve body	Stem	Valve ball	Sealing surface	shim	filler	working temperature	Applicable media
WCB	1Cr13	1Cr13	1Cr13 Stellite alloy body material	Flexible graphite stainless steel plus flexible graphite 08 mild steel f304f316	Flexible graphite stone ink	-29-425℃	Water, steam and oil
WC6	15CrMo	15CrMo				-29-425℃
WC9	25Cr2MoV	25Cr2MoV
LCB	304	304				-46-354℃
CF8	304	304				-196-600℃	Partial acid and alkali
CF3	304L	304L
CF8M	316	316
CF3M	316L	316L



1. The manual part can be made of steel plate or cast by stainless steel. The handle is equipped with a limit structure to set the limit at the opening and closing positions of the valve. When the valve is used on the key device, the limit block is provided with a lock hole to lock the switch position to avoid misoperation. The handle is clearly marked with opening and closing.
2. The valve rod is forged and modulated by a182f (1Cr13), and the hardness reaches hb220-250. The valve rod is connected with the handle through flat key or spline or square wedge, which has strong universality and is easy to disassemble and assemble. The valve rod is equipped with anti blowing structure.
3. The packing of the valve is braided, flexible graphite sealing ring or tetrafluorone sealing ring, which makes the valve stem reliable sealing under certain lubrication conditions.
4. According to the requirements, the ball valve can be designed as an anti-static structure, and conductive springs are set between the ball and the valve stem, and between the valve stem and the valve body, so as to avoid the ignition of flammable substances by static electricity and ensure the safety of the system.
5. The seal pairs have various forms. According to different working conditions, soft seal, hard seal, fireproof valve seat and other structures can be selected; floating ball type is below DN 150, and fixed ball form is below DN200.
6. The auxiliary sealing structure can be set at the valve seat of the ball valve, and the grease injection valve can be installed at the valve seat and the valve rod, which can be temporarily sealed in case of emergency, and the valve rod can be lengthened according to the need to be suitable for the underground laying place

Nominal pressure		50	65	80	100	125	150	200	250	300	350	400	450
series1L		216	241	283	305	356	394	457	533	610	686	762	864
series2L		-	-	-	-	-	-	500	600	700	800	900	-
H		102	114	127	152	184	219	273	360	395	430	470	550
Manual	H1	107	125	152	178	300	330	398	495	580	625	670	698
	E	-	-	-	-	-	-	115	116	171	171	257	257
	F	-	-	-	-	-	-	350	350	400	420	400	420
	W	230	400	400	650	1050	1050	600	600	800	800	800	800
	WT（KG）	12	16	22	35	58	74	205	322	460	576	864	1280
Electric	H2	-	-	-	-	-	554	600	652	760	770	830	-
	L1	-	-	-	-	-	235	235	235	259	400	400	-

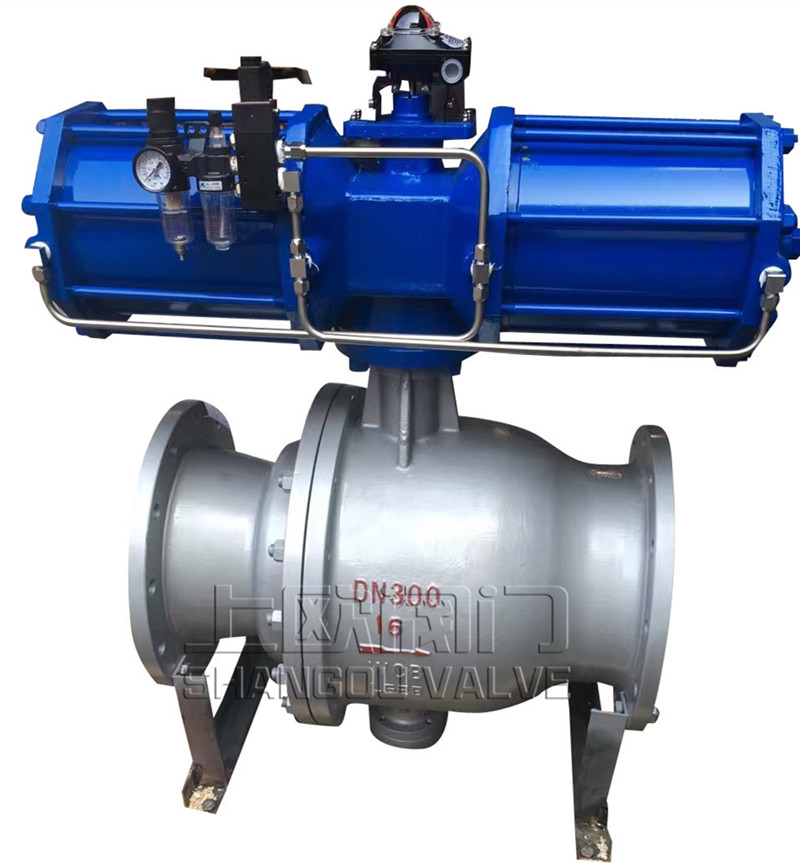

Pneumatic	H3	274	379	389	479	552	666	736	926	1059	1127	1127	1468
	L2	270	405	405	576	576	776	776	776	1060	1060	1060	1360
