Location:Home > Product Center > Ball Valve > ZAJVElectric V-type flange regulating ball valvePN16~PN40

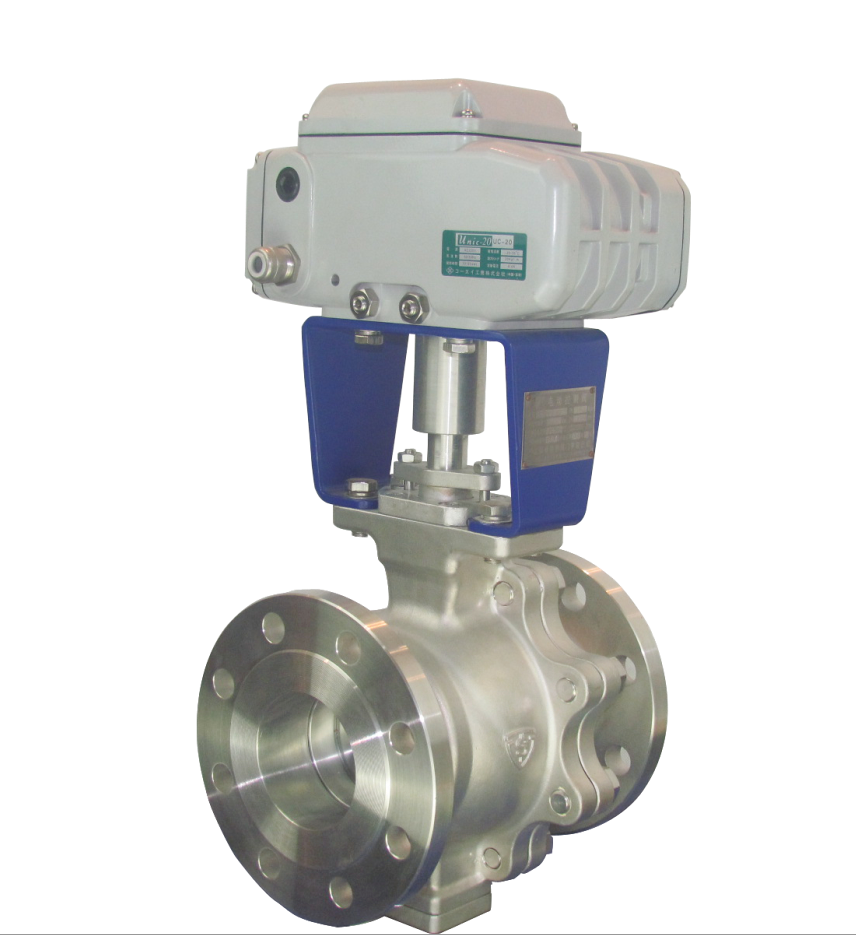

ZAJVThe electric V-type flange regulating ball valve pn16-pn40 is a kind of rotary ball valve with metal core seat or metal to PTFE sealing and matching. It combines the Zui good control characteristics of ball valve and butterfly valve, and can be used as control regulating valve and shut-off valve.
Zajv electric V-type flange regulating ball valve pn16-pn40 is a kind of rotary ball valve with metal core seat or metal to PTFE seal fit. It combines the Zui good control characteristics of ball valve and butterfly valve, and can be used as control regulating valve and shut-off valve.
Zajv electric V-type ball valve is composed of yxr, PSQ electric actuator and V-type ball valve. It is an angular stroke control valve controlled by the V-notch spherical valve plate rotating close to the sealing surface in a small opening range.
The V-notch ball plate of the electric V-type ball valve can increase the regulating ratio and shear the sealing ring during the closure. Therefore, it is suitable for the control system with large regulation ratio and the control of fluid containing fiber and slurry.
Electric v-ball valve is widely used in petroleum, chemical, electric power, metallurgy, steel, paper, medicine, food, textile, light industry and other industries.
AJVMain technical parameters of electric V-type flange regulating ball valve PN16 ~ PN40
type | Straight through two body casting V-type ball valve DN25 ~ 200 Straight through integral casting V-type ball valve DN250 ~ 300 |
---|---|
Nominal diameter | DN25、32、40、50、65、80、100、125、150、200、250、300 |
Nominal pressure | ANSI 150、300 Lb;JIS 10、20 K;PN1.6、2.5、4.0MPa |
Connection form | Flange connection: RF, FM, according to ANSI B16.5; JIS b2201; hg20596 (or gb9113-2000) |
body material | WCB / SCPh3,WC6/ SCPh31,WC9/ SCPH32,CF8 / SCS13A, CF8M / SCS14A Please refer to table for the combination of valve body and trim materials and working temperature range 1 |
Service temperature | Normal temperature type: - 29 ~ + 150 ℃ high temperature type:+150~+450℃ |
filler | Normal temperature type: - 29 ~ + 150 ℃ high temperature type |
Connection with actuator |
Spool type | V-notch spool |
---|---|
Flow characteristics | Flow characteristics 2 |
discharge coefficient | See table 2 |
Trim material | Please refer to table for the combination of valve body and trim materials and working temperature range 1 |
Ball core angle | 90° |
parameter | Unic-10 | Unic-20 | Unic-40 | Unic-60 | Unic-100 | Unic-150 |
---|---|---|---|---|---|---|
Output shaft torque | 10kgf·m | 20kgf·m | 40kgf·m | 60kgf·m | 100kgf·m | 150kgf·m |
supply voltage | single-phase AC100V、200V、220V,50/60Hz | |||||
Range of motion | 0~90° | |||||
Action time | 30 second/(50Hz 时) | 45 秒 | ||||
second | 20W | 30W | 90W | 90W | 100W | 100W |
Protector | Overheat protector (automatic recovery type) | |||||
ambient temperature | -25~+55℃ | |||||
insulation resistance | 100MΩ(500V-DC) | |||||
Withstand voltage value | AC1500V 1 minute | |||||
Manual operation | Operate with detachable handle | |||||
Limiting element | ||||||
Water resistance | Equivalent to IP65 standard | |||||
Installation status | It can adapt to various directions | |||||
weight | 4.5kg | 7.8kg | 8.5kg | 20kg | 21kg | 22kg |
Body material | Die casting of aluminum alloy | |||||
Wiring interface | PF 1/2×2 Plastic waterproof joint |
Zajv electric V-type flange regulating ball valve PN16 ~ pn40kv value and flow characteristics nominal diameter (mm) 253240506580100125150200250300 valve seat diameter (mm) 2831374053536689104130173212255 flow coefficient kv303556901402303876009655156724003900
Nominal diameter(mm) | Dimensions(mm) | Executive Agency | weight(kg) | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A | h1 | h3 | h3 | h4 | H1 | h3 | ФD | n×Фc | |||||||
① | ② | ① | ② | ① | ② | ① | ② | ||||||||
25 | 165 | 165 | 114 | 136 | 12 | 265 | 212 | 348 | 70 | 4×Ф10 | 4×Ф10 | Unic-10 | Unic-10 | 8.1 | 9.2 |
32 | 178 | 180 | 114 | 136 | 12 | 265 | 212 | 348 | 70 | 9.1 | 10.3 | ||||
40 | 165 | 190 | 152 | 176 | 15 | 305 | 257 | 386 | 70 | 12.5 | 15 | ||||
50 | 178 | 216 | 160 | 200 | 15 | 315 | 279 | 409 | 70 | 4×Ф12 | Unic-20 | 15 | 20.5 | ||
65 | 190 | 241 | 187 | 228 | 16 | 368 | 349 | 487 | 102 | 4×Ф12 | Unic-40 | Unic-40 | 25 | 30 | |
80 | 203 | 283 | 193 | 230 | 20 | 370 | 354 | 494 | 102 | 35 | 40.6 | ||||
100 | 305 | 305 | 209 | 250 | 16 | 390 | 393 | 533 | 102 | 4×Ф14 | 50 | 55 | |||
125 | 356 | 381 | 269 | 312 | 28 | 482 | 485 | 555 | 136×116 | 4×Ф14 | Unic-60 | Unic-100 | 103 | 113 | |
150 | 394 | 403 | 284 | 325 | 28 | 495 | 515 | 685 | 136×116 | Unic-100 | Unic-150 | 115 | 125 | ||
200 | 457 | 502 | 322 | 365 | 28 | 540 | 589 | 764 | 136×116 | Unic-150 | 165 | 170 | |||
250 | 533 | 568 | 460 | 530 | 36 | — | 815 | — | 165 | 4×Ф22 | 4×Ф22 | — | — | 185 | 200 |
300 | 610 | 648 | 475 | 565 | 36 | — | 875 | — | 165 | 205 | 220 |
①The pressure level is ANSI 150 Lb;JIS 10 K;PN1.6MPa
②The pressure level is ANSI 300 Lb;JIS 20 K;PN2.5、4.0MP
1. Be careful in installation and construction, and do not hit the valve.
2. Before installation, the ball valve should be inspected to check the specification and model, and identify whether there is damage, especially for the valve stem. Turn it a few times to see if it is skewed, because Zui is prone to bump the stem during transportation. Also remove the debris in the valve.
3. When lifting the ball valve, the rope should not be tied to the hand wheel or the valve stem to avoid damage to these parts, but should be tied to the valve body.
4. The pipeline connected to the ball valve must be cleaned. Compressed air can be used to blow away iron oxide chips, mud and sand, welding slag and other impurities. These debris, not only easy to scratch the sealing surface of the ball valve, in which large particles of debris (such as welding slag), but also block the small valve, so that its failure.
5. The position of valve handle rotation should be reserved during installation. 6. The ball valve cannot be used as throttling. 7. The ball valve with transmission mechanism shall be installed vertically.
