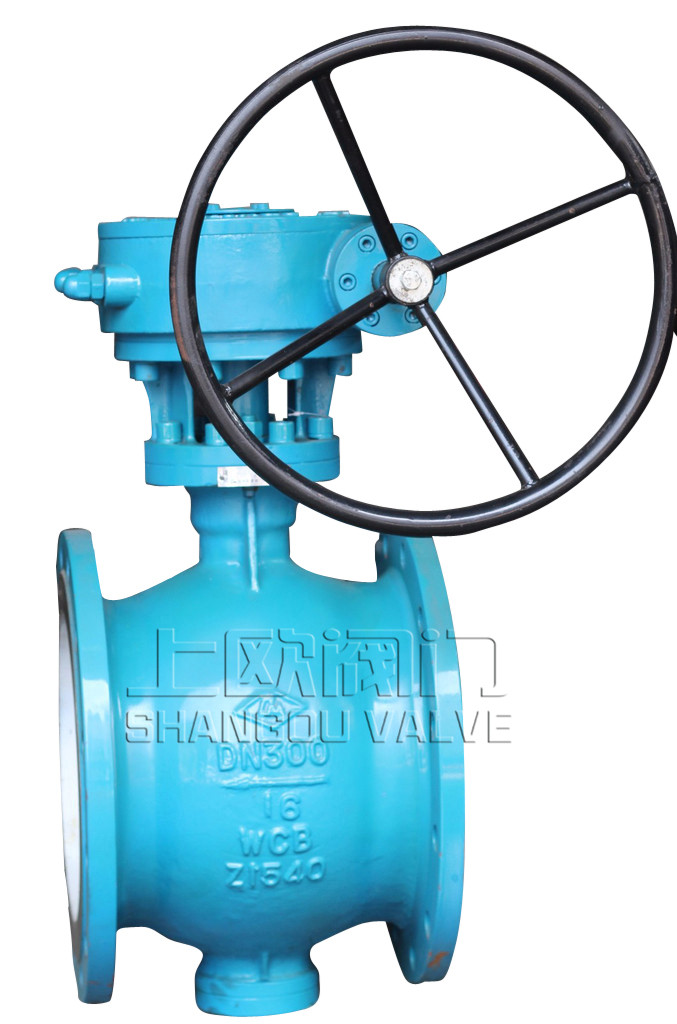

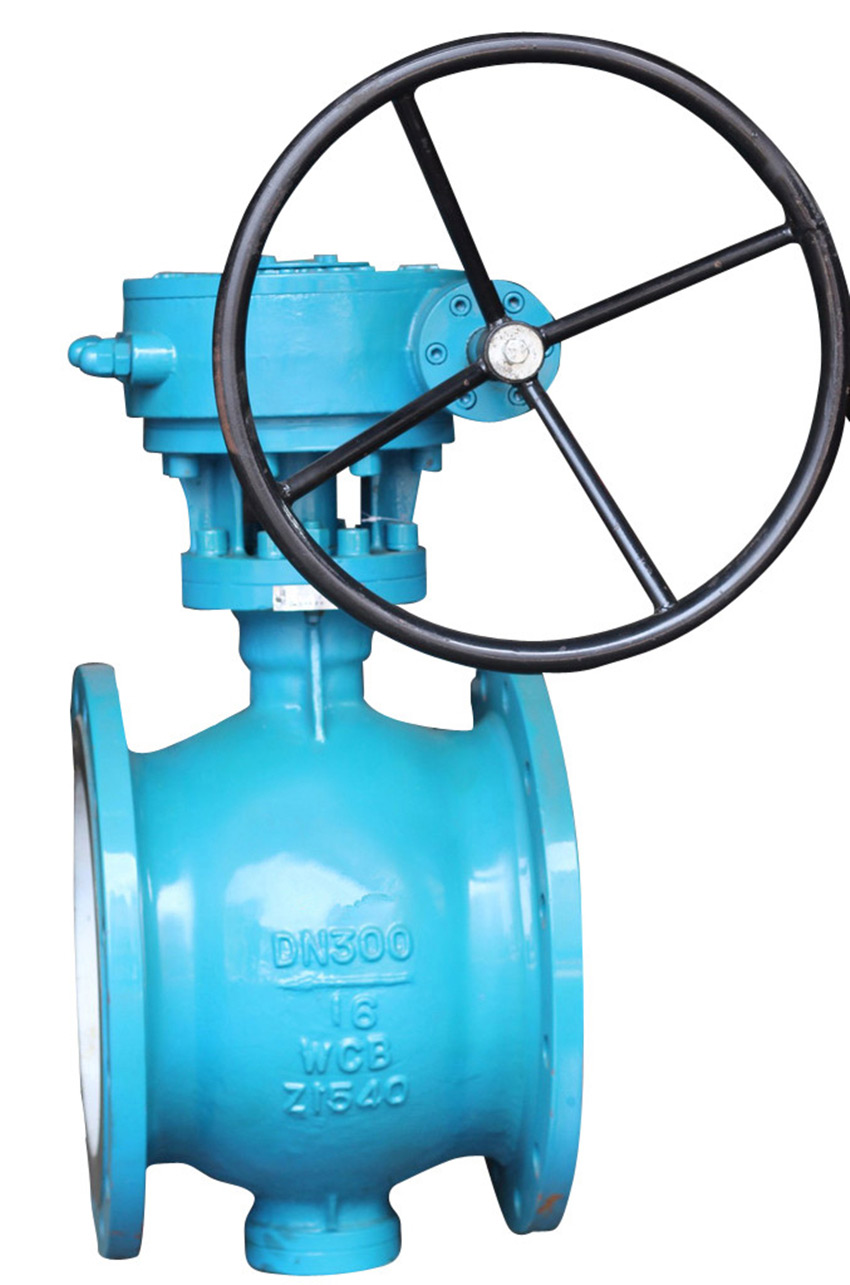

Location:Home > Product Center > Ball Valve > PBQ340HManual side mounted eccentric hemisphere valve
PBQ340HThe utility model has the advantages of easy operation, easy operation, easy operation, easy operation, easy operation, easy operation, easy operation, easy to operate, and easy to operate.
PBQ340H The utility model has the advantages of easy operation, easy operation, easy operation, easy operation, easy operation, easy operation, easy operation, easy to operate, and easy to operate.
1. General class: suitable for sewage treatment, pulp, gasification of aluminum, urban heating and heating requirements are strict occasions.
2. Special oil and chemical industry: suitable for crude oil, heavy oil and other oil products, chemical industry corrosion-resistant, two-phase mixed flow medium. The temperature resistance can reach 425 ℃.
3. Special gas class: suitable for the control of gas, natural gas and liquefied gas. The product structure is characterized by seal ring surfacing valve with different chromium alloy, tight sealing and corrosion resistance.
4. Slurry special class: suitable for liquid, solid two-phase mixed flow or liquid transportation, chemical reaction crystallization precipitation or scaling industrial pipeline transportation. According to the different medium and temperature required by customers, the ball is overlaid with chromium molybdenum and vanadium alloy, and the valve seat is overlaid with chromium, molybdenum, chromium alloy and stainless steel alloy electrodes to meet the needs of different slurry transportation.
5. Special class of pulverized coal ash and slag: it is applicable to the control of power plant, hydraulic slag removal or gas conveying pipeline. Wear resistance is required for the product. The ball is made of composite ball bimetallic, which has high rigidity.
1. The structure of the outer step of the valve seat and the inner step of the valve body design can effectively prevent the ball and the valve seat from jamming and valve seat separation.
2. Large flow area and no flow resistance: This is because the ball is hidden in the valve cavity after opening, and there is no flow resistance direct current channel. The flow channel is smooth, and there is no ash accumulation or blocking phenomenon. The pressure loss is small, and the medium will not deposit in the valve cavity.
3. Light switch: due to the principle of eccentricity, the ball and valve seat are completely separated when opening, without any contact, and the opening and closing torque is small, and the opening and closing can be completed by turning 90 degrees, and the operation is convenient.
4. Reliable sealing and long service life: under the action of double eccentricity, when the valve is closed, the more close the eccentric ball and the valve seat, the better sealing effect can be achieved; the ball with hemispherical cutting and the valve seat have shearing and squeezing cutting functions, which can effectively remove the scale or dirt on the sealing surface and keep a good sealing. Under the action of double eccentricity, when the valve is opened, the ball and the valve seat are completely separated without any contact, and there is no friction between the ball and the valve seat, which effectively overcomes the problem that the sealing surface of the traditional ball valve always rubs against the sealing surface of the valve seat, so the sealing surface is well protected. The sealing surface is wear-resistant, and the valve seat and ball are provided with compensation. When the valve seat is worn and turned a little, it can still be reliably sealed. In addition, the valve seat can be adjusted or replaced to prolong the service life. This is the most significant feature of the hemispherical valve.
PBQ340HMaterial of main parts of manual side mounted eccentric hemisphere valve |
||
name | texture of material | |
valve body |
QT450、WCB、ZG20CrMo、ZG1Cr18Ni9Ti |
|
Valve shaft |
2Cr13、1Cr13 |
|
Disc | Alloy nitriding steel, nitriding stainless steel, wear-resistant steel | |
valve seat | Alloy nitriding steel, nitriding stainless steel, wear-resistant steel | |
Bearing | Aluminum bronze, Fz-1 composite | |
filler | Polytetrafluoroethylene, flexible graphite |
All the text, data and pictures in this paper are only for reference. For details of performance parameters, structural dimension parameters and price of pbq340h manual side mounted eccentric hemisphere valve, please contact us at Tel:
