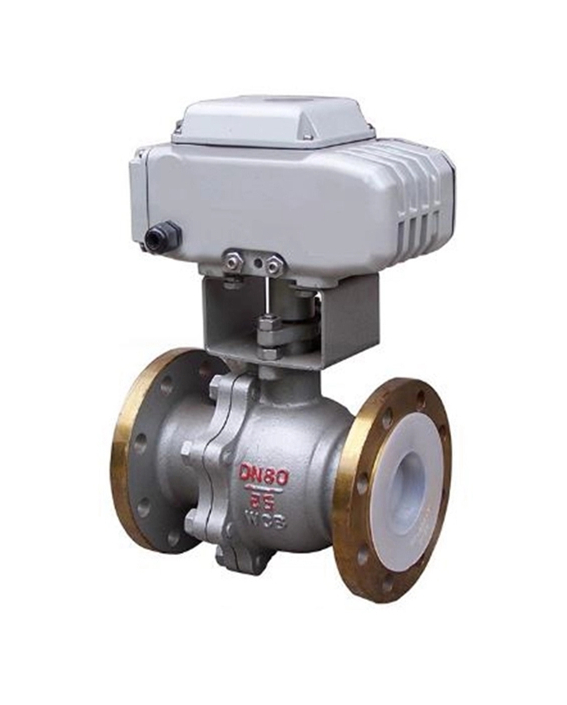

Q941f electric fluorine lined flange ball valve PN10 ~ PN16 is composed of electric actuator and O-type fluorine lined ball valve. The inner cavity and ball core of the electric fluorine lined ball valve are lined with corrosion-resistant and aging resistant poly (perfluoroethylene) by high-pressure injection molding process, so it has reliable corrosion resistance and sealing performance. It is mainly used to adjust or cut off strong corrosive media such as acid and alkali in the production process.

Q941FMain technical parameters of electric fluorine lined flange ball valve PN10 ～ PN16

Nominal diameter(mm)	15	20	25	32	40	50	65	80	100	125	150	200	250	300
Nominal pressure(MPa)	PN1.0、1.6MPa
Leakage	Soft seal: zero leakage
Valve body form	Two stage valve body (floating ball)											Two stage valve body (fixed ball)
Spool form	Type a spherical valve core
	teflon(PTFE)
Connection form	flange
Adjustable range								DN80-300
	250:1							350:1
Basic error	±1%
dead zone	≤1%
Return difference	≤1%
Applicable temperature	Sealing surface
	PTFE≤180℃
Configuration of actuator
control mode	Switch in place light (switch two position control), intelligent regulation (4 ~ 20mA analog signal control)

Q941FMaterials of main parts of electric fluorine lined flange ball valve PN10 ～ PN16

Part name
Valve body and cover	WCB+F46	304(CF8)+F46	316(CF8M)+F46	316L(CF3M)+F46
sphere	2Cr13+Nitriding treatment+46	304+46	316+46	316L+46
Stem	2Cr13+46	304+46	316+46	316L+46
Seat sealing ring	PTFE、Carbon fiber＋PTFE
Packing	VPTFE packing

Q941FOutline structure dimension of electric fluorine lined flange ball valve PN10 ～ PN16

Nominal diameter		Standard value						reference value
DN（mm）	NPS(inch)	L	D	K	D1	f	b	z-Φd	W	H
15	1/2	140/130	95	65	45	2	14	4-Φ14	231	211
20	3/4	140/130	105	75	55	2	16	4-Φ14	231	211
25	1	150/140	115	85	65	2	16	4-Φ14	231	214
32	11/4	165	135	100	78	2	18	4-Φ18	231	221
40	11/2	180/165	145	110	85	3	18	4-Φ18	231	227
50	2	200/203	160	125	100	3	20	4-Φ18	231	247
65	21/2	220/222	180	145	120	3	20	4-Φ18	261	268
80	3	250/241	195	160	135	3	22	4-Φ18	261	331
100	4	280/305	215	180	155	3	24	4-Φ18	285	361
125	5	320/356	245	210	185	3	26	4-Φ18	285	390
150	6	360/394	280	240	210	3	28	8-Φ23	325	408
200	8	457	335	295	265	3	30	8-Φ23	325	478

1. Be careful in installation and construction, and do not hit the valve.
2. Before installation, the ball valve should be inspected to check the specification and model, and identify whether there is damage, especially for the valve stem. Also turn a few times to see if it is skewed, because during transportation, it is easy to bump the stem. Also remove the debris in the valve.
3. When lifting the ball valve, the rope should not be tied to the hand wheel or the valve stem to avoid damage to these parts, but should be tied to the valve body.
4. The pipeline connected to the ball valve must be cleaned. Compressed air can be used to blow away iron oxide chips, mud and sand, welding slag and other impurities. These debris, not only easy to scratch the sealing surface of the ball valve, in which large particles of debris (such as welding slag), but also block the small valve, so that its failure.
5. The position of valve handle rotation should be reserved during installation. 6. The ball valve cannot be used as throttling. 7. The ball valve with transmission mechanism shall be installed vertically.
