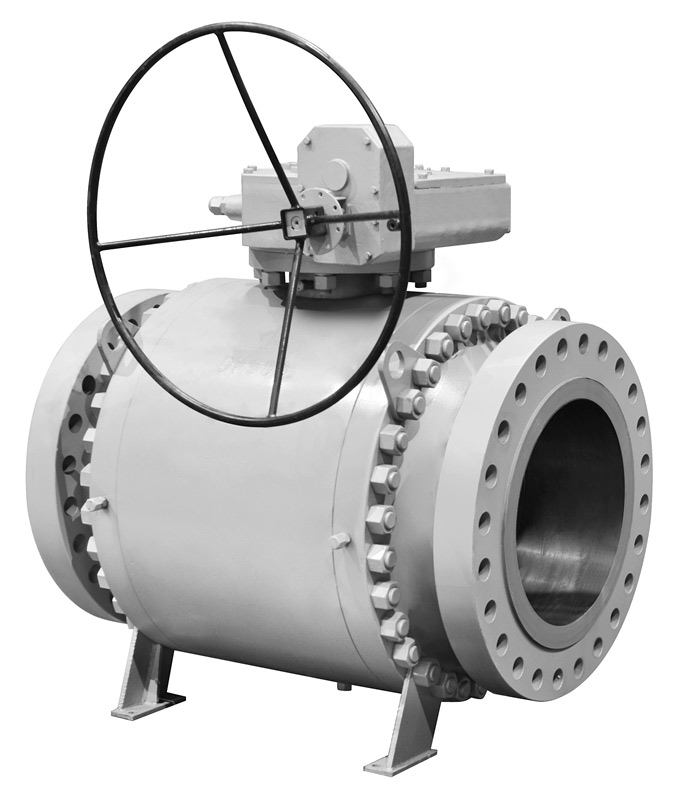

QY347FAs the opening and closing device of oxygen pipeline in metallurgical industry, the worm gear oxygen flange ball valve has many strict requirements compared with other general valves. Because oxygen belongs to flammable and explosive dangerous goods, it is necessary to prevent leakage, static electricity and fire prevention to avoid accidents.
QY347FAs the opening and closing device of oxygen pipeline in metallurgical industry, the worm gear oxygen flange ball valve has many strict requirements compared with other general valves. Because oxygen belongs to flammable and explosive dangerous goods, it is necessary to prevent leakage, static electricity and fire prevention to avoid accidents. In structure, the design is as follows: when the valve disc is opened and closed, the valve stem only rises and falls without rotation, which effectively reduces the wear of sealing pair, packing and upper seal; the side flange is equipped with grounding screw to avoid electrostatic spark; the exposed part of valve stem is sealed with plexiglass to prevent dust and oil.
valve body | WCB | ZG1Cr18Ni9Ti | CF8 | CF3 | ZG1Cr18Ni12Mo2Ti | CF8M | CF3M |
Ball stem | 2Cr13 | 1Cr18Ni9Ti | 304 | 304L | 1Cr18Ni12Mo2Ti | 316 | 316L |
Valve seat | Polytetrafluoroethylene (PTFE) and Poe fiber reinforced polytetrafluoroethylene PTFE + glass p-phenylene ppl | ||||||
shim | PTFE stainless steel / flexible graphite toothed gasket | ||||||
Stem seat | |||||||
filler | PTFE reinforced flexible graphite | ||||||
Packing gland | 1Cr18Ni9Ti | 304 | 304L | 1Cr18Ni12Mo2Ti | 316 | 316L | |
temperature | -29~150(Polytetrafluoroethylene PTFE) - 29 ~ 200 (glass fiber reinforced polytetrafluoroethylene PTFE + glass) - 29 ~ 300 (PPL) | ||||||
medium | Steam oil | Nitric acid | Strong oxidation medium | Nitric acid | ureas |
QY347FAs the opening and closing device of oxygen pipeline in metallurgical industry, the worm gear oxygen flange ball valve has many strict requirements compared with other general valves. Because oxygen belongs to flammable and explosive dangerous goods, it is necessary to prevent leakage, static electricity and fire prevention to avoid accidents. In structure, the design is as follows: when the valve disc is opened and closed, the valve stem only rises and falls without rotation, which effectively reduces the wear of sealing pair, packing and upper seal; the side flange is equipped with grounding screw to avoid electrostatic spark; the exposed part of valve stem is sealed with plexiglass to prevent dust and oil.
Nominal diameterDN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
L | 130 | 140 | 150 | 165 | 180 | 200 | 220 | 250 | 280 | 320 | 360 | 400 |
H | 59 | 63 | 75 | 85 | 95 | 107 | 140 | 152 | 178 | 252 | 272 | 342 |
W | 130 | 130 | 160 | 180 | 230 | 230 | 400 | 400 | 650 | 1050 | 1050 | 1410 |
Wt(㎏) | 2.5 | 3 | 5 | 6 | 7 | 10 | 15 | 19 | 33 | 58 | 93 | 160 |
Nominal diameterDN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
L | 130 | 140 | 150 | 165 | 180 | 200 | 220 | 250 | 320 | 400 | 400 | 550 |
H | 59 | 63 | 75 | 97 | 107 | 142 | 152 | 178 | 252 | 272 | 342 | 345 |
W | 130 | 130 | 160 | 230 | 230 | 400 | 400 | 700 | 1100 | 1100 | 1500 | 1500 |
