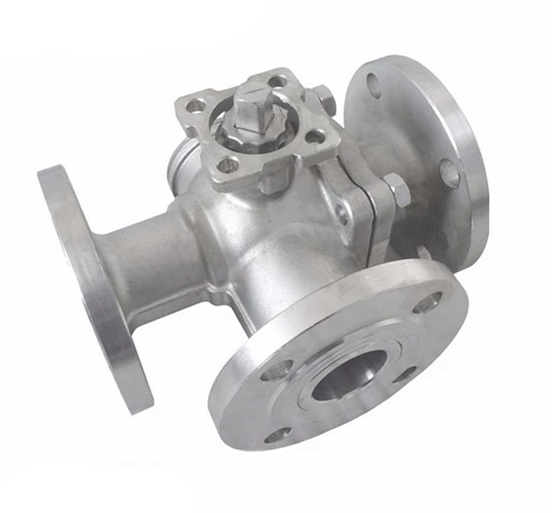

Q45FThree way manual ball valve
Q45FThere are T-shape and L-shape for pn16-pn40 three-way manual ball valve. T-shape can make three orthogonal pipelines connect with each other and cut off the third channel, which plays the role of shunt and confluence. The L-shape can only connect the two orthogonal pipes, but can not keep the third pipe connected at the same time. It only plays the role of distribution.
1. The three-way ball valve adopts integrated structure in structure; 2. The three-way ball core is divided into T-shaped and L-shaped, with long service life, large flow capacity and small resistance; 3. The ball valve is divided into single acting type and double acting type according to the action type. The characteristic of single acting type is that once the power source fails, the ball valve will be in the state required by the control system; 4. The sealing type of face valve seat, with less flange connection and high reliability, has realized lightweight design;
model | Q45F-16C | Q45F-25C | Q45F-40C | Q45F-16P | Q45F-25P | Q45F-40P | |
working pressure(℃) | 1.6 | 2.5 | 4.0 | 1.6 | 2.5 | 4.0 | |
Applicable temperature(℃) | ≤150 | ||||||
Applicable media | Water, steam, oil, etc | Weak corrosive medium | |||||
Material Science | valve body | Carbon steel castings | Cr Ni Ti stainless steel castings | ||||
Ball, stem | Cr Ni Ti stainless steel | ||||||
seal ring | Reinforced polytetrafluoroethylene | ||||||
filler | teflon |
Q45FDimension of PN16 ~ PN40 three way manual ball valve(mm)
Nominal diameter
Structural connection size | ||||||||
L | D | D1 | D2 | b | Z-d | H | W | |
15 | 108 | 95 | 65 | 45 | 14 | 414 | 95 | 140 |
20 | 117 | 105 | 75 | 55 | 14 | 414 | 105 | 160 |
25 | 127 | 115 | 85 | 65 | 14 | 414 | 113 | 180 |
32 | 140 | 135 | 100 | 78 | 16 | 418 | 135 | 250 |
40 | 165 | 145 | 110 | 85 | 16 | 418 | 142 | 300 |
50 | 178 | 160 | 125 | 100 | 16 | 418 | 154 | 350 |
65 | 191 | 180 | 145 | 120 | 18 | 418 | 175 | 350 |
80 | 203 | 195 | 160 | 135 | 20 | 818 | 190 | 400 |
100 | 229 | 215 | 180 | 155 | 20 | 818 | 225 | 500 |
125 | 356 | 245 | 210 | 185 | 22 | 818 | 245 | 600 |
150 | 394 | 280 | 240 | 210 | 24 | 823 | 265 | 800 |
200 | 457 | 335 | 295 | 265 | 26 | 1223 | 305 | 800 |
250 | 533 | 405 | 355 | 320 | 30 | 1225 | 370 | 1300 |
1. Be careful in installation and construction, and do not hit the valve.
2. Before installation, the ball valve should be inspected to check the specification and model, and identify whether there is damage, especially for the valve stem. Turn it a few times to see if it is skewed, because Zui is prone to bump the stem during transportation. Also remove the debris in the valve.
3. When lifting the ball valve, the rope should not be tied to the hand wheel or the valve stem to avoid damage to these parts, but should be tied to the valve body.
4. The pipeline connected to the ball valve must be cleaned. Compressed air can be used to blow away iron oxide chips, mud and sand, welding slag and other impurities. These debris, not only easy to scratch the sealing surface of the ball valve, in which large particles of debris (such as welding slag), but also block the small valve, so that its failure.
5. The position of valve handle rotation should be reserved during installation. 6. The ball valve cannot be used as throttling. 7. The ball valve with transmission mechanism shall be installed vertically.
