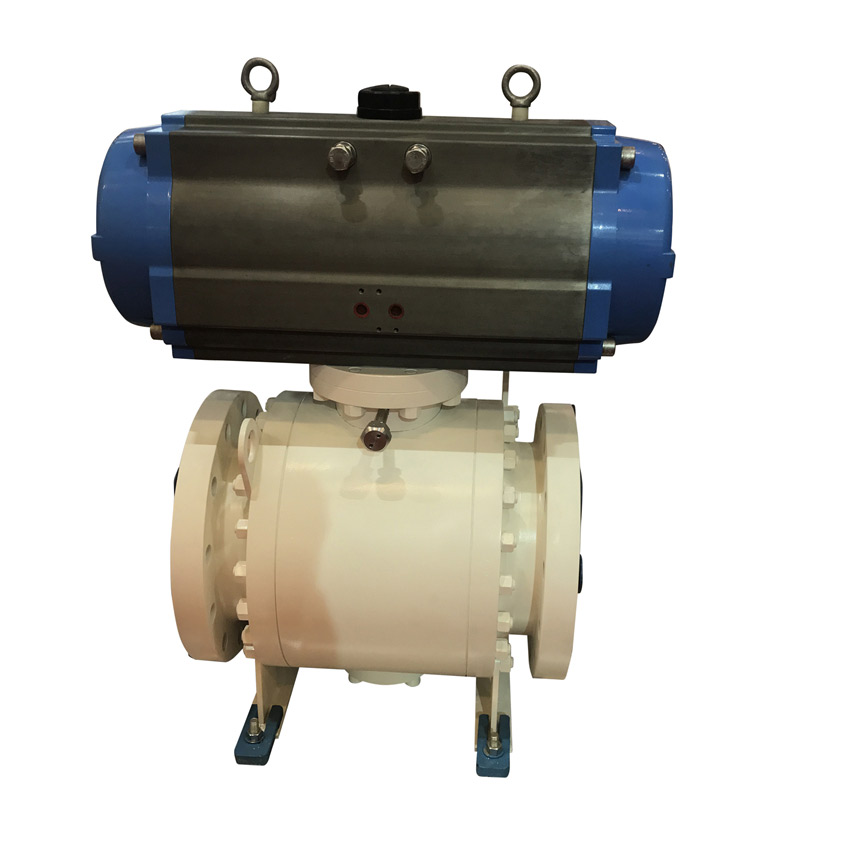

Q647f stainless steel pneumatic fixed ball valve is a two-way valve with unlimited flow direction. The middle flange is connected with studs, and the upper and lower valve stems are equipped with sliding bearings, which can reduce friction and operate labor-saving and stable. Under normal conditions: the valve seat seal is sealed by the spring preload when the pressure is low, and the valve seat is tightly sealed to the ball. When the pressure is high, the piston effect is formed on the valve seat, and the ball seat is pressed to the seal under the pressure of the upstream medium.

Q647F Main technical parameters of stainless steel pneumatic fixed ball valve

Valves	Transmission mode	Transmission mode	structural style	Sealing surface	Nominal pressure（MPa）	body material
globe valve	6-Pneumatic 6s-Pneumatic with manual	4-Flange type	Fixed ball straight through	F-Fluoroplastics H-Alloy steel PPL	1.6 2.5 4.0 6.4	According to the valve body in the table Material code
Nominal diameterDN（mm）		50-500
Material code		C		P		R
main want Zero piece	valve body	WCB		ZG1Cr18Ni9Ti		ZG1Cr18Ni12Mo2Ti
	paddles	2Cr13		1Cr18Ni9Ti		1Cr18Ni12MoTi
	Stem	2Cr13		1Cr18Ni9Ti		1Cr18Ni12MoTi
	seal ring	Enhanced polytetrafluoroethylene para polybenzenes
	filler	Polytetrafluoroethylene flexible graphite
suitable use work condition	Applicable media	Water, steam and oil		Nitric acid		Acetic acid
	Applicable temperature	-28℃～300℃
Control type		Control type
Action pattern		Cut / adjust
Input signal		Electrical signal: 0-10mA, - 4-10ma gas signal 20-100kpa
Return voltage		AC220V/DC24V
Purified compressed air		Purified compressed air
Actuator	model	GT series, HY series, AW series, Zsh series, etc
	Air source pressure	0.4～0.7MPa

Q647F External dimensions of stainless steel pneumatic fixed ball valve(mm)

Nominal diameterDN（mm）	Dimensions（mm）															Actuator model
	1.6MPa					2.5MPa					4.0MPa
	L	D	D1	B	Z-φD	L	D	D1	B	Z-φD	L	D	D1	B	Z-φD
50	203	160	125	16	4-18	216	160	125	20	4-18	216	160	125	20	4-18	Optional GTD / GTE AW/AWS、HY、 Zsh series actuators (the above options are for election only The specific selection is based on the actual requirements）
65	222	180	146	18	4-18	241	180	145	22	8-18	241	180	145	22	8-18
80	241	195	160	20	8-18	283	195	160	22	8-18	283	195	160	22	8-18
100	305	215	180	20	8-18	305	230	190	24	8-23	305	230	190	24	8-23
125	356	245	210	22	8-18	381	270	220	28	8-25	381	270	220	28	8-25
150	394	280	240	24	8-23	403	300	250	30	8-25	403	300	250	30	8-25
200	457	335	295	26	12-23	502	360	310	34	12-25	502	375	320	38	12-30
250	533	405	355	30	12-25	586	425	370	36	12-30
300	610	460	410	30	12-25	648	485	430	40	16-30
350	686	520	470	34	16-25	762	550	490	44	16-34
400	762	580	525	36	16-30	838	610	550	48	16-34
450	864	640	585	40	20-30	914	660	600	50	20-34
500	914	705	650	44	20-34	991	730	660	52	20-41



1. Be careful in installation and construction, and do not hit the valve.
2. Before installation, the ball valve should be inspected to check the specification and model, and identify whether there is damage, especially for the valve stem. Turn it a few times to see if it is skewed, because Zui is prone to bump the stem during transportation. Also remove the debris in the valve.
3. When lifting the ball valve, the rope should not be tied to the hand wheel or the valve stem to avoid damage to these parts, but should be tied to the valve body.
4. The pipeline connected to the ball valve must be cleaned. Compressed air can be used to blow away iron oxide chips, mud and sand, welding slag and other impurities. These debris, not only easy to scratch the sealing surface of the ball valve, in which large particles of debris (such as welding slag), but also block the small valve, so that its failure.
5. The position of valve handle rotation should be reserved during installation. 6. The ball valve cannot be used as throttling. 7. The ball valve with transmission mechanism shall be installed vertically.
