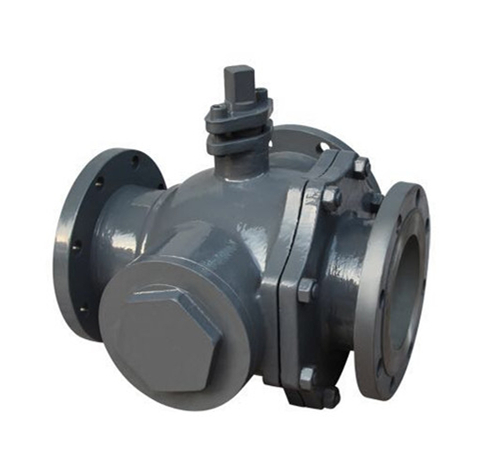

L-type q44f manual three-way ball valve has the advantages of compact structure, beautiful appearance and good sealing performance. L-type three-way ball valve is suitable for switching the flow direction of medium, and can connect the two vertical channels.

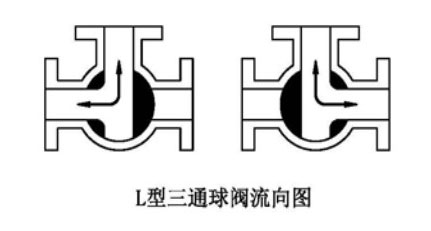

L-type q44f manual three-way ball valve has the advantages of compact structure, beautiful appearance and good sealing performance. L-type three-way ball valve is suitable for switching the flow direction of medium, and can connect the two vertical channels. (the following L-shaped flow chart)
1. Compact structure, quick opening and closing, smooth flow passage and small fluid resistance.
2. Good sealing performance: using PTFE elastic deformation of four sides seat material to realize no leakage sealing.
3、_ The valve has many functions: any port can be used as inlet without leakage, and tee can be made into L-type or T-type.
4. Convenient maintenance: after the system is depressurized, it is not necessary to remove the whole generation for inspection and maintenance.
5. It is widely used in water supply, petrochemical, metallurgy, mining, textile, energy, paper, food, steel and other pipeline systems to switch the flow direction of medium and to separate or mix the medium.
Main performance parameters of L-type q44f manual three-way ball valve
Nominal pressure PN(MPa) |
Test pressure | ||
housing | High pressure liquid seal | Low pressure liquid seal | |
1.6 | 2.4 | 1.76 | 0.6 |
2.5 | 3.75 | 2.75 | |
4.0 | 6.0 | 4.4 | |
CLASS150 | 3.0 | 2.2 | |
Applicable conditions | Water, oil, gas and other non corrosive media and acid-base corrosion medium | ||
Applicable temperature | -28~350℃ | ||
Application specification | Connecting flange | JB79-59 GB9113、 HG20592-97、ANSI B16.5 |
|
Inspection and test | JB/T 9092-99 ,API598 |
Part name | texture of material | |
GB | ASTM | |
Valve body and cover | WCB | A216-WCB |
seal ring | PTFE、Para polyphenylene | PTFE、Para polyphenylene |
sphere | 1Cr18Ni9Ti | SS 304 |
Valve seat and stem | 2Cr13 | A246-416 |
Stud bolt | 35CrMoA | A193-B7 |

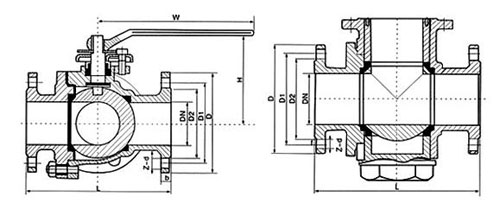

model | Nominal diameter DN(mm) |
size(mm) | |||||||||
L | L1 | D | D1 | D2 | b | f | Z-d | H | W | ||
Q44F-16C | 15 | 150 | 72 | 95 | 65 | 45 | 14 | 2 | 4-14 | 95 | 130 |
20 | 160 | 80 | 105 | 75 | 55 | 14 | 2 | 4-14 | 110 | 130 , | |
25 | 180 | 90 | 115 | 85 | 65 | 14 | 2 | 4-14 | 120 | 140 | |
32 | 200 | 100 | 135 | 100 | 78 | 16 | 2 | 4-18 | 144 | 180 | |
40 | 220 | 110 | 145 | 110 | 85 | 16 | 3 | 4-18 | 152 | 220 | |
50 | 240 | 120 | 160 | 125 | 100 | 16 | 3 | 4-18 | 182 | 220 | |
65 | 260 | 130 | 180 | 145 | 120 | 16 | 3 | 4-18 | 193 | 240 | |
80 | 280 | 140 | 195 | 160 | 135 | 20 | 3 | 8-18 | 217 | 270 | |
100 | 320 | 160 | 215 | 180 | 155 | 20 | 3 | 8-18 | 245 | 350 | |
125 | 380 | 190 | 245 | 210 |
185 |
22 | 3 | 8-18 | 282 | 500 | |
150 | 440 | 220 | 280 | 240 | 210 | 24 | 3 | 8-23 | 319 | 600 | |
200 | 550 | 260 | 335 | 295 | 265 | 26 | 3 | 12-23 | 380 | 1000 | |
250 | 670 | 310 | 405 | 355 | 320 | 30 | 3 | 12-25 | 460 | 1400 | |
300 | 720 | 370 | 460 | 410 | 375 | 30 | 3 | 12-25 | 520 | 1800 |
