Location:Home > Product Center > Ball Valve > ZSJQPneumatic cut off two way ball valve

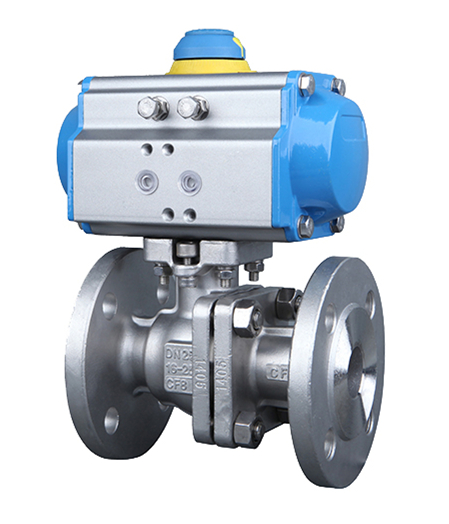

ZSJQPneumatic cut-off two-way ball valve is a kind of rotary cut-off ball valve, which is the executive unit in the combination instrument of pneumatic or electric unit, and is generally used in combination with solenoid valve and other components. There are two kinds of sealing forms: soft sealing and hard sealing, which are used under the working conditions of - 40 ℃ - 180 ℃ and - 60 ℃ - 450 ℃.
ZSJQPneumatic cut-off two-way ball valve is a kind of rotary cut-off ball valve, which is the executive unit in the combination instrument of pneumatic or electric unit, and is generally used in combination with solenoid valve and other components. There are two kinds of sealing forms: soft sealing and hard sealing, which are used under the working conditions of - 40 ℃ - 180 ℃ and - 60 ℃ - 450 ℃. The O-type cut-off ball valve adopts piston type pneumatic actuator or electric actuator. The spherical surface of O-type cut-off ball valve is hardened by special process to make its surface smooth and wear-resistant. The valve seat and sealing material are made of high-temperature and wear-resistant carbon fiber materials, and the product structure is exquisite and reasonable. This series of products have the characteristics of high rotating efficiency, large thrust, good sealing, large rated flow coefficient and good interchangeability of parts. This series of products are widely used in oil, chemical, pharmaceutical, metallurgy, textile, paper, sewage treatment and other production departments of gas, liquid transmission pipeline medium cut or open, to meet the requirements of working conditions.
ZSJQMain technical parameters of pneumatic cut off two way ball valve
Ontology | |
---|---|
Valve body form | Through casting valve |
body material | ZG230-450 ZG1Cr18Ni9Ti |
Nominal diameter | DN15-DN300 |
Nominal pressure | PN1.6 2.5 4.0 6.4MPa ANSI 150 300LB JIS 10K 20K 30K |
Connection form | Flange FF RF RTJ etc |
Structural length | Connection form |
Valve cover form | Integrated |
filler | Polytetrafluoroethylene flexible graphite, etc |
a seal | Metal clip graphite gasket, tetrafluoroethylene gasket, etc |
Valve internals | |
Spool type | Spherical shape |
Flow characteristics | linear |
Interior material | Please refer to the attached table for standard material combination, service temperature and pressure |
Executive Agency | |
Pneumatic | Piston type pneumatic actuator |
Air on (spring return) | |
Double action | Air on / air off |
1. Special inspection;
2. Completely remove oil and water;
3. Copper prohibition treatment;
4. Special interface and piping;
5. Use under vacuum condition;
6. Specifies the layer pigment;
7. Special medium (oxygen, hydrogen, chlorine gas);
8. Use stainless steel connectors;

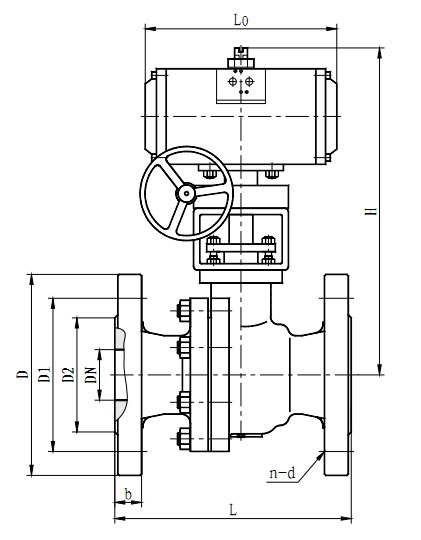

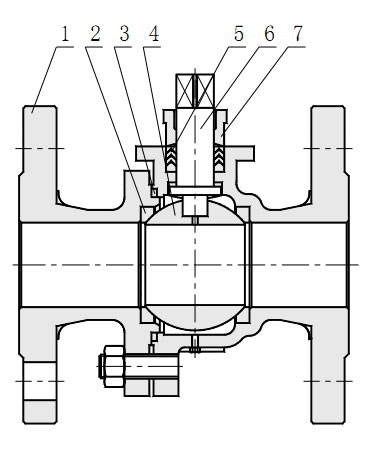

The body material is carbon steel | ||||
1 | valve body | WCB | LCB | WC9 |
2 | seal ring | PTFE/PPL | ||
3 | shim | PTFE/Metal graphite spiral wound gasket | ||
4 | The Ball | According to the actual working conditions | ||
5 | filler | PTFE/graphite | ||
6 | Stem | 2Cr13 | 2Cr13 | 2Cr13 |
7 | Packing gland | WCB | LCB | WC9 |
The body is made of stainless steel | ||||
1 | valve body | CF8 | CF8M | CF3M |
2 | seal ring | PTFE/PPL | ||
3 | shim | PTFE/Metal graphite spiral wound gasket | ||
4 | The Ball | According to the actual working conditions | ||
5 | filler | PTFE/graphite | ||
6 | Stem | 304 | 316 | 316L |
7 | Packing gland | CF8 | CF8M | CF3M |
Note: the above is the standard configuration structure. The standard valve body materials are carbon steel and stainless steel, which can also be configured according to user requirements.
Specifications and technical parameters
Nominal diameter DN(mm) |
15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 300 |
Rated flow coefficient KV |
20 | 38 | 72 | 110 | 170 | 270 | 380 | 510 | 940 | 1400 | 2200 | 3500 | 8500 |
Spool angle | 1.6、4.0、 6.4 | ||||||||||||
Spool angle(°) | 0°±4°~90°±4° | ||||||||||||
Applicable operating temperature | Soft seal - 40 ~ 180 hard seal-60~450 | ||||||||||||
Allowable differential pressure(MPa) | Equal to nominal pressure | ||||||||||||
Allowable leakage level | Soft seal grade VI hard seal grade IV | ||||||||||||
Action time(S) | 0.5~0.7 | ||||||||||||
Protection level | Equivalent to ip65.5 dustproof and waterproof type | ||||||||||||
Cylinder output torque (N.m) |
5.9~6780 | ||||||||||||
Electric actuator input Torque output(Kgf.m) |
2~60 | ||||||||||||
Cylinder operating pressure (MPa) |
Double acting 0.2-1.0 single acting 0.3-1.0 | ||||||||||||
