The difference between the metal hard seal cast steel fixed ball valve and the soft seal fixed ball valve is that the latter is a soft sealing valve seat, while the former's ball and valve seat are hardened by special process, and there are many hardening methods, such as integral nitriding, flame spraying, surfacing welding and so on (not limited to this). The selection of hardening mode depends on the working medium or use High temperature metal hard sealed cast steel fixed ball valve is widely used in petroleum, chemical industry, metallurgy, papermaking, electric power, mining and other industries, especially suitable for medium with high temperature and various dust and solid particles.
The difference between the metal hard seal cast steel fixed ball valve and the soft seal fixed ball valve is that the latter is a soft sealing valve seat, while the former's ball and valve seat are hardened by special process, and there are many hardening methods, such as integral nitriding, flame spraying, surfacing welding and so on (not limited to this). The selection of hardening mode depends on the working medium or use High temperature metal hard sealed cast steel fixed ball valve is widely used in petroleum, chemical industry, metallurgy, papermaking, electric power, mining and other industries, especially suitable for medium with high temperature and various dust and solid particles.

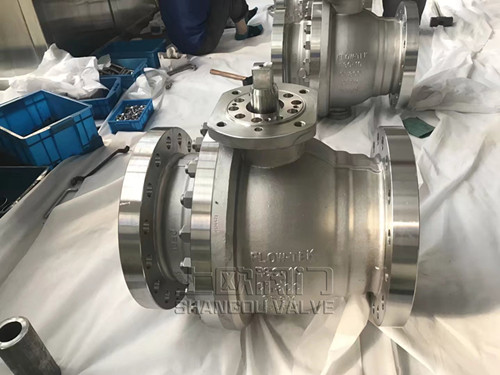

Product Name: metal hard seal cast steel fixed ball valve
Product series: fixed ball valve series, nominal diameter: DN50 ~ DN600, NPS2 "~ 24"
The nominal temperature is - 150.0mpa, the working pressure is - 150.0mpa
1. The main valve body, auxiliary valve body, gland and other main parts of the product are molded by casting, which has the advantages of light weight and lower cost than forged steel valve.
2. The flexible movable metal valve seat structure with cylindrical spring or wave spring preload is adopted. The design of sealing preload is reasonable and the closing and opening is flexible, which can effectively ensure the reliability of sealing.
3. The ball is made of super British speed spraying wear-resistant alloy powder, and the valve seat is overlaid with Stellite cemented carbide and sprayed with other super wear resistant alloy materials.
4. The sealing surface is finely ground, and the sealing is reliable.
5. Full diameter channel design, small flow resistance and large flow capacity.
6. The valve rod anti fly out design is safe and reliable. The anti-static function can be designed according to the requirements.
7. Automatic pressure relief valve seat design, once the valve body cavity abnormal pressure rise, the valve seat will automatically release to the low pressure end, more safe.
8. Both the upper and lower valve stems are designed with bearing structure, and the torque is lighter in the process of opening and closing.
9. A variety of drive mode options: manual, worm gear drive, pneumatic, electric, hydraulic, pneumatic linkage, etc.; can also be used with the automatic transportation control.
Design and manufacture |
Structural length |
Flange size |
Pressure temperature |
Test inspection |
GB122237 |
GB12221 |
GB9113 JB79 |
GB9131 |
GB/T13927 JB/T9092 |
Nominal pressure NominalPressure |
1.6 |
2.5 |
4.0 |
strength test |
2.4 |
3.8 |
6.0 |
Water seal test |
1.8 |
2.8 |
4.4 |
Airtight seal test |
0.4-0.7 |
valve body |
WCB |
ZG1Cr18Ni9Ti |
CF8 |
CF3 |
ZG1Cr18Ni12Mo2Ti |
CF8M |
CF3M |
Ball stem |
2Cr13 |
1Cr18Ni9Ti |
304 |
304L |
1Cr18Ni12Mo2Ti |
316 |
316L |
Valve seat |
Polytetrafluoroethylene (PTFE) and Poe fiber reinforced polytetrafluoroethylene PTFE + glass p-phenylene ppl | ||||||
shim |
PTFE stainless steel / flexible graphite serrated gasketTooth Profile Gasket |
||||||
Stem seat |
PTFE stainless steel / flexible graphite Stainless Steel/Flexible Graphite |
||||||
filler |
PTFE reinforced flexible graphite Enhanced Flexible Graphite |
||||||
Packing gland |
WCB |
1Cr18Ni9Ti |
304 |
304L |
1Cr18Ni12Mo2Ti |
316 |
316L |
temperature |
-29~150(Polytetrafluoroethylene PTFE) - 29 ~ 200 (glass fiber reinforced polytetrafluoroethylene PTFE + glass) - 29 ~ 300 (PPL) |
||||||
medium |
Steam oil |
Nitric acid Nitric Acid |
Strong oxidation medium |
Acetic acid Acetic Acid |
ureas Urea |
1.6MPa |
DN |
L |
D |
D1 |
D2 |
b |
n-φd |
H0 |
H1 |
H2 |
Raised face flange Q347F 16C 16P 16R |
32 |
140 |
135 |
100 |
78 |
16 |
4-18 |
30 |
85 |
160 |
40 |
165 |
145 |
110 |
85 |
16 |
4-18 |
32 |
95 |
230 |
|
50 |
178 |
160 |
125 |
100 |
16 |
4-18 |
43 |
107 |
230 |
|
65 |
190 |
180 |
145 |
120 |
18 |
4-18 |
70 |
142 |
400 |
|
80 |
203 |
195 |
160 |
135 |
20 |
8-18 |
110 |
152 |
400 |
|
100 |
305 |
215 |
180 |
155 |
20 |
8-18 |
150 |
178 |
500 |
|
125 |
356 |
245 |
210 |
185 |
22 |
8-18 |
200 |
252 |
500 |
|
150 |
394 |
280 |
240 |
210 |
24 |
8-23 |
230 |
278 |
600 |
|
200 |
457 |
335 |
295 |
265 |
26 |
12-23 |
260 |
395 |
600 |
|
250 |
533 |
405 |
355 |
320 |
30 |
12-25 |
283 |
480 |
800 |
|
300 |
610 |
460 |
410 |
375 |
30 |
12-25 |
380 |
585 |
800 |
|
350 |
686 |
520 |
470 |
435 |
34 |
16-25 |
425 |
625 |
800 |
|
400 |
762 |
580 |
525 |
485 |
36 |
16-30 |
492 |
720 |
800 |
|
500 |
914 |
705 |
650 |
608 |
44 |
20-34 |
555 |
840 |
830 |
|
600 |
1067 |
840 |
770 |
718 |
48 |
20-41 |
675 |
1050 |
830 |
|
700 |
1245 |
910 |
940 |
788 |
50 |
24-41 |
850 |
1150 |
830 |
(1) In strict accordance with the requirements of the contract, to provide qualified products that meet the design standards.
(2) Strictly check and control the quality of raw materials, components and accessories.
(3) Ensure that the processing technology of the equipment is perfect and the detection means are complete. Products will never leave the factory with defects.
(4) Be fully responsible for the supply, quality, equipment performance, technical interface, service and other aspects of the subcontractor. The key parts specified in the contract must meet the requirements of relevant qualification and be approved by the demander.
(5) Provide relevant department standards and drawings to the supervision unit according to the contract, provide convenience for the supervision, and inform the demander and the supervision representative of the shutdown parts of the supervision equipment 7 days in advance. The supervision assigned by the demander is to urge us to produce qualified products according to the standards, but it does not reduce all our quality responsibilities.
(6) The quality defects in the process of equipment manufacturing shall be timely reported to the demander and the supervision representative without concealment. If the equipment defect exceeds the standard specified in the contract, the supplier shall replace it unconditionally. In the process of installation and trial operation, if there are quality problems of the equipment, the problems should be dealt with first, and then the responsibilities should be clarified. Everything should be based on the requirements of project progress.
(7) In case of any accident, we will replace and repair the supplied equipment free of charge as soon as possible until the demander is satisfied.
(8) In case of missing parts or missing parts caused by other reasons in the process of unpacking, we are responsible for making up the missing parts for free as soon as possible. We shall be responsible for the quality problems found during the installation and commissioning of the equipment and in the operation of the equipment in the future.
(9) Provide the demander with all technical data and drawings according to the contract on time. Have the obligation to invite the demander to participate in our technical design audit when necessary.
(10) According to the time required by the demander to the site for technical services, guide the demander to install, trial run and trial production according to the requirements of our technical data and drawings.
(11) For the supporting equipment related to the contract equipment purchased by the demander first, we will actively provide the technology meeting the equipment interface requirements
Conditions and information.
(12) Strictly implement the minutes or agreements of the meeting held by both parties on relevant issues.
(13) According to the provisions of the contract, free business training courses on equipment installation, commissioning, use and maintenance technology shall be held for the demander.
(14) Strengthen pre-sale, in-sales and after-sales services, and implement "24-hour service", "advanced service", "whole process service" and "life-long service" in the whole process of product manufacturing, installation, commissioning and overhaul.
(15) After receiving the quality problem information reflected by the demander, reply within 24 hours or send service personnel to the site as soon as possible, so as to ensure that the user is not satisfied with the quality and the service does not stop.
(16) Free for the product to provide lifelong maintenance, where our factory users, have established a detailed user file, our factory after-sales service. Regular return visit and inspection system are implemented to guide the daily maintenance of users, and timely point out and solve possible faults.
(17) At any time to meet the demander's requirements for spare parts, lifetime to provide users with high-quality and low-cost spare parts.
