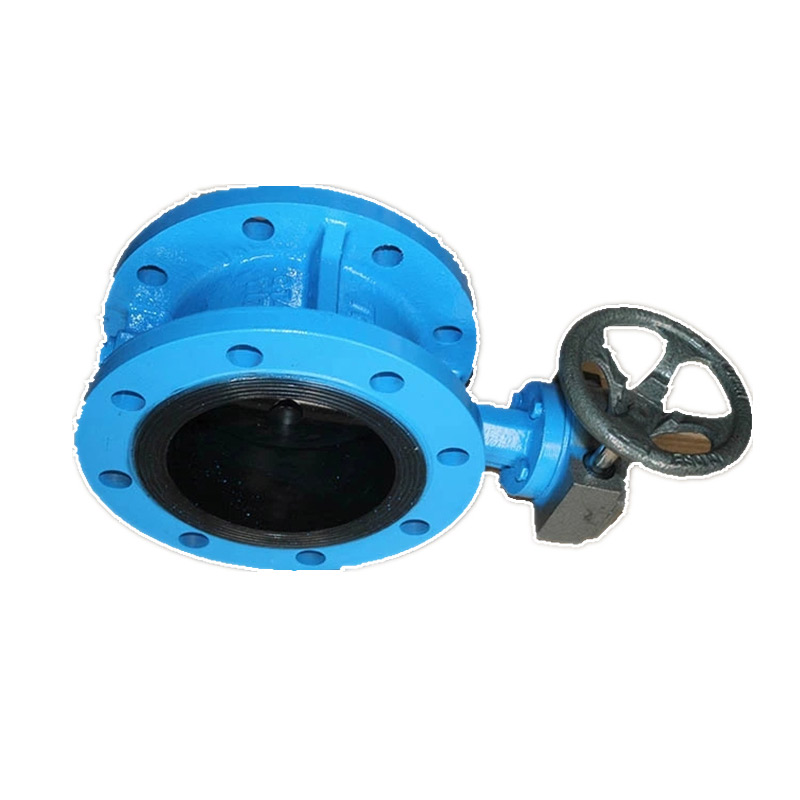

D341J-10The sealing of the worm gear flange type fully lined rubber butterfly valve shaft is controlled by adding rubber to the rotating surface between the butterfly plate and the valve seat. The rubber sealing surface and rubber lined butterfly plate are adopted to ensure that the valve shaft does not contact with the fluid medium in the cavity, with tight sealing performance and long service life, It can be used to cut off or adjust the flow rate quickly, and it is suitable for the occasions requiring reliable sealing and good regulating characteristics.
D341J-10The sealing of worm gear flange type fully lined rubber butterfly valve shaft is controlled by adding rubber on the rotating surface between the butterfly plate and the valve seat. The rubber sealing surface and rubber lined butterfly plate are adopted to ensure that the valve shaft does not contact with the fluid medium in the cavity. The sealing performance is tight and the service life is super long. It can be used to cut off or adjust the flow quickly. It is suitable for the field requiring reliable sealing and good regulating characteristics Together. D341j-10 worm gear flange type full rubber lined butterfly valve is used for regulating flow and intercepting medium on water supply and drainage and gas pipelines of food, medicine, chemical industry, petroleum, electric power, light textile, papermaking, etc. with temperature ≤ 85 ℃ and nominal pressure ≤ 1.6Mpa.
1. The design is novel, reasonable, unique in structure, light in weight and quick in opening and closing.
2. Small operating torque, convenient operation, labor saving and dexterous.
3. It can be installed in any position and easy to maintain.
4. The sealing element can be replaced, the sealing performance is reliable, and the two-way sealing is zero leakage.
5. The sealing material has the characteristics of aging resistance, corrosion resistance and long service life.
D341J-10Main technical parameters of worm gear flange type rubber lined butterfly valve |
||||
Nominal diameter |
DN(mm) |
50~2000 |
||
Nominal pressure |
PN(MPa) |
0.6 |
1.0 |
1.6 |
Test pressure | strength test |
0.9 |
1.5 |
2.4 |
|
Sealing test |
0.66 |
1.1 |
1.76 |
|
Airtight seal test |
0.6 |
0.6 |
0.6 |
Applicable media |
Air, water, sewage, steam, gas, oil, etc。 |
|||
Driving form |
D341J-10Material of main parts of worm gear flange type fully lined rubber butterfly valve |
|
Part name | Material Science |
valve body | |
蝶板 |
Cast iron, ductile iron, carbon steel, stainless steel, carbon steel completely covered with rubber or fluoroplastics Cast iron, ductile iron, carbon steel, stainless steel, carbon steel completely covered with rubber or fluoroplastics Carbon steel nickel phosphorus, stainless steel NR, Cr, NBR, EPDM and FKM |
seal ring | |
Stem | |
filler |
Design standard: GB / t2238-1989
Flange connection size: GB / t9113.1-2000; GB / t9115.1-2000; jb78
Structural length: GB / t12221-1989
Pressure test: GB / t13927-1992; JB / t9092-1999
D341J-10Selection of sealing material and applicable temperature of worm gear flange type fully lined rubber butterfly valve |
||||||
Material variety | Chloroprene rubber | Butadiene rubber | Ethylene propylene rubber | teflon | silicon rubber | Fluororubber |
Code name |
Xoror J |
XAoror JA |
XBoror JB |
XC、JCoror F |
XDoror JD |
XEoror JE |
High temperature resistance to Zui |
82℃ |
93℃ |
150℃ |
232℃ |
250℃ |
204℃ |
Resistance to low temperature of Zui |
-40℃ |
-40℃ |
-40℃ |
-268℃ |
-70℃ |
-23℃ |
Applicable operating temperature |
≤65℃ |
≤80℃ |
≤120℃ |
≤200℃ |
≤200℃ |
≤180℃ |

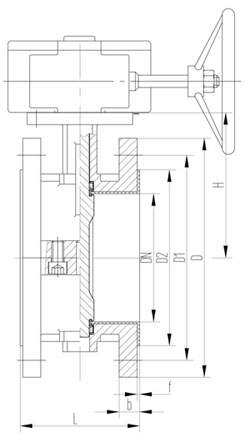

D341J-10Main external connection dimensions of worm gear flange type rubber lined butterfly valve(mm) |
||||||||
Nominal diameter |
L |
D |
D1 |
D2 |
b |
f |
z-φd |
H |
50 |
108 |
160 |
125 |
99 |
16 |
3 |
4-φ18 |
112 |
65 |
112 |
180 |
145 |
118 |
18 |
3 |
4-φ18 |
122 |
80 |
114 |
195 |
160 |
132 |
18 |
3 |
4-φ18 |
129 |
100 |
127 |
215 |
180 |
155 |
20 |
3 |
8-φ18 |
142 |
125 |
140 |
245 |
210 |
184 |
22 |
3 |
8-φ18 |
157 |
150 |
140 |
280 |
240 |
210 |
22 |
3 |
8-φ23 |
170 |
