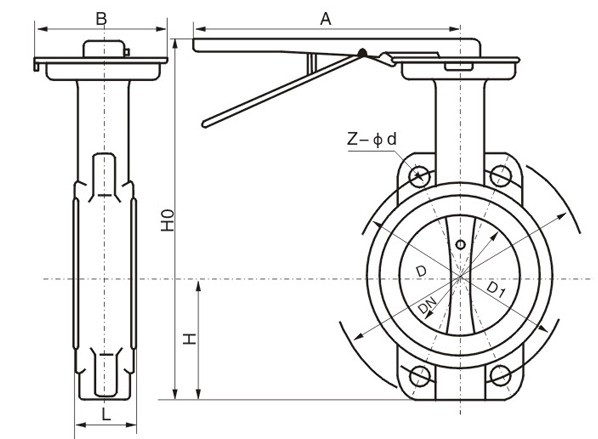

D71X Manual double clip type soft seal butterfly valve has compact structure, easy 90 ° rotary switch, reliable sealing and long service life. It is widely used in water supply and drainage of water plants, power plants, steel mills, papermaking, chemical industry, catering and other systems as regulation and cut-off use.
D71X Manual double clip type soft seal butterfly valve has compact structure, easy 90 ° rotary switch, reliable sealing and long service life. It is widely used in water supply and drainage of water plants, power plants, steel mills, papermaking, chemical industry, catering and other systems as regulation and cut-off use.
1. D71X manual clamp type soft seal butterfly valve adopts double eccentric structure, which has the sealing function of closing more tightly, and the sealing performance is reliable. 2. Stainless steel and NBR oil resistant rubber are used as sealing materials, which have long service life.
3. The rubber seal ring can be located on the valve body or butterfly plate. It can be used in different media for users to choose.
4. The butterfly plate adopts frame structure with high strength, large flow area and small flow resistance.
5. It can be used in different media as long as the sealing material of sealing valve seat is replaced.
6. The valve has the function of two-way sealing. It is not controlled by the flow direction of medium or affected by the space position. It can be installed in any direction.
7. The valve has unique structure, flexible operation, labor saving and convenience.
Part name | Material Science |
valve body | |
Disc |
WCB、QT450-10、HT200、HT250 |
Valve shaft |
2Cr13 |
seal ring | Oil resistant nitrile rubber |
Flexible graphite |
Manufacturing standards |
GB/T 122387-89 |
Flange standard |
GB9113-2000、GB17241.6-1998 |
Structural length standard |
GB12221-89 |
Inspection standard |
Nominal diameterDN(mm) |
50~2000 |
50~1600 |
|
Nominal pharmacologyPN(MPa) |
0.6 |
1.0 |
1.6 |
Sealing test(MPa) |
0.66 |
1.1 |
1.76 |
strength test(MPa) |
0.9 |
1.5 |
2.4 |
Applicable temperature | |||
Applicable media | Water, air, natural gas, oil and weak corrosive fluid | ||
Leakage rate | In accordance with GB / T13927-92 | ||
Driving mode | Worm gear drive, electric, pneumatic and hydraulic |
DN |
L |
H |
HO |
A |
B |
0.6MPa |
1.0MPa |
1.6MPa |
|||
|
|
|
|
|
|
DO |
n-d |
DO |
n-d |
DO |
n-d |
50 |
43 |
63 |
235 |
270 |
110 |
110 |
4-14 |
125 |
4-18 |
125 |
4-18 |
65 |
46 |
70 |
250 |
270 |
110 |
130 |
4-14 |
145 |
4-18 |
145 |
4-18 |
80 |
46 |
83 |
275 |
270 |
110 |
150 |
4-18 |
160 |
8-18 |
160 |
8-18 |
100 |
52 |
105 |
316 |
270 |
110 |
170 |
4-18 |
180 |
8-18 |
180 |
8-18 |
125 |
56 |
115 |
340 |
310 |
110 |
200 |
8-18 |
210 |
8-18 |
210 |
8-18 |
150 |
56 |
137 |
376 |
310 |
110 |
225 |
8-18 |
240 |
8-22 |
240 |
8-22 |
200 |
60 |
164 |
430 |
353 |
150 |
280 |
8-18 |
295 |
8-22 |
295 |
8-22 |
250 |
68 |
206 |
499 |
353 |
150 |
335 |
12-18 |
350 |
12-22 |
355 |
12-26 |
300 |
78 |
230 |
570 |
380 |
150 |
395 |
12-22 |
400 |
12-22 |
410 |
12-26 |
