Location:Home > Product Center > Butterfly Valve > D371J-10Worm gear double clip full rubber lined butterfly valve
The butterfly valve also has the advantages of small volume, light weight and simple structure. Compared with the same parameter gate valve, the average weight reduction is 30~50%. The butterfly plate can rotate 90 degrees to realize the opening and closing process. Because the butterfly force on both sides of the rotating shaft is approximately equal to the medium force, the torque is opposite, because the opening and closing moment is smaller.
D371J-10The butterfly valve with worm gear pair clamp is a butterfly valve with valve stem rotating together as the opening and closing parts to realize the opening, closing and adjustment of the valve. The rubber lined butterfly valve is lined with rubber, and the valve plate is wrapped with rubber. In addition to cut-off and cut-off in pipeline, the sealing performance of butterfly valve has been taken as the main evaluation index in recent years, which is favored by the market. In addition, butterfly valve has the advantages of small size, light weight and simple structure. Compared with the gate valve with the same parameters, the average weight is reduced by 30 ~ 50%. The opening and closing process can be realized by rotating the butterfly plate by 90 degrees. Moreover, due to the similar medium force on both sides of the rotating shaft, the torque is opposite, and the opening and closing torque is small.
Material code of sealing ring | Applicable temperature | Applicable media |
NR | ≤85℃ | Applicable media |
CR | ≤85℃ | Water, gas, acid and alkali |
≤100℃ | Water, oil | |
EPDM | ≤120℃ | Water, steam, general acid and alkali |
FKM | ≤150℃ | Water, steam, strong acid and alkali |
Design and manufacture: gb12238 structure length: gb12221 (20 series) flange connection size: gb4216
1 | valve body | Cast iron, ductile iron, carbon steel, stainless steel |
2 | Disc | Cast iron, ductile iron, carbon steel, stainless steel, carbon steel completely covered with rubber or fluoroplastics |
3 | Stem | Carbon steel nickel phosphorus, stainless steel |
4 | Seat sealing ring | NR, Cr, NBR, EPDM and FKM |
Handle | Aluminum alloy, carbon steel |
Pressure rating: PN (MPA) 1.01.6
Test: lining layer: EDM
The test and inspection shall be in accordance with GB / t13927 standard
Nominal pressure: PN (MPA)
Valve body: PN × 1.5
Seal: PN × 1.1

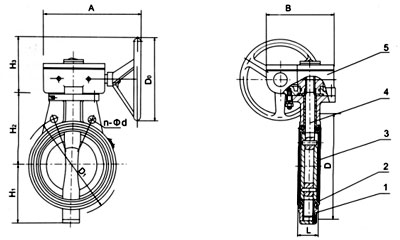

D371J-10Main external connection dimensions of worm gear double clip full rubber lined butterfly valve(mm) |
|||||||||||||
Nominal diameter DN |
Nominal pressure MPa |
working pressure MPa |
L |
D |
D1 |
n-Φd |
H1 |
H2 |
Do |
H3 |
A |
B |
quality |
40 |
1.0 |
1.0 |
33 |
150 |
110 |
4-18 |
55 |
100 |
150 |
62 |
164 |
125 |
6 |
50 |
|
|
43 |
165 |
125 |
4-18 |
64 |
120 |
150 |
62 |
164 |
125 |
7 |
65 |
|
|
46 |
185 |
145 |
4-18 |
80 |
120 |
208 |
62 |
164 |
125 |
10 |
80 |
|
|
46 |
200 |
160 |
8-18 |
112 |
130 |
260 |
62 |
164 |
125 |
11 |
100 |
|
|
52 |
220 |
180 |
8-18 |
90 |
140 |
275 |
62 |
164 |
125 |
12 |
125 |
|
|
56 |
250 |
210 |
8-18 |
112 |
160 |
350 |
106 |
289 |
200 |
18 |
150 |
|
|
56 |
285 |
240 |
8-22 |
135 |
175 |
350 |
106 |
289 |
200 |
29 |
200 |
|
|
60 |
340 |
295 |
8-22 |
160 |
210 |
240 |
106 |
289 |
200 |
34.5 |
250 |
|
0.6 |
68 |
395 |
350 |
12-22 |
206 |
235 |
240 |
106 |
289 |
200 |
44 |
300 |
|
|
78 |
445 |
400 |
12-22 |
232 |
273 |
320 |
112 |
370 |
253 |
64.5 |
350 |
|
|
78 |
505 |
450 |
16-22 |
263 |
310 |
320 |
112 |
370 |
253 |
75.5 |
400 |
|
|
102 |
565 |
515 |
16-26 |
295 |
340 |
400 |
270 |
562 |
280 |
156 |
450 |
|
|
114 |
615 |
565 |
20-26 |
327 |
370 |
400 |
270 |
562 |
280 |
171.5 |
500 |
|
|
127 |
670 |
620 |
20-26 |
358 |
399 |
400 |
270 |
562 |
280 |
206.5 |
500 |
|
|
127 |
670 |
620 |
20-26 |
358 |
399 |
400 |
270 |
562 |
280 |
206.5 |
550 |
0.4 |
140 |
730 |
675 |
20-30 |
384 |
430 |
400 |
270 |
562 |
280 |
215 |
|
600 |
154 |
780 |
725 |
20-30 |
474 |
460 |
500 |
270 |
562 |
280 |
283 |
||
700 |
165 |
895 |
840 |
24-30 |
486 |
510 |
500 |
125 |
503 |
443 |
426 |
||
800 |
190 |
1015 |
950 |
24-33 |
591 |
672 |
500 |
200 |
513 |
531 |
550 |
||
900 |
203 |
1115 |
1050 |
28-33 |
|
500 |
200 |
513 |
531 |
1070 |
|||
1000 |
216 |
1230 |
1160 |
28-36 |
721 |
800 |
550 |
273 |
713 |
815 |
1296 |
