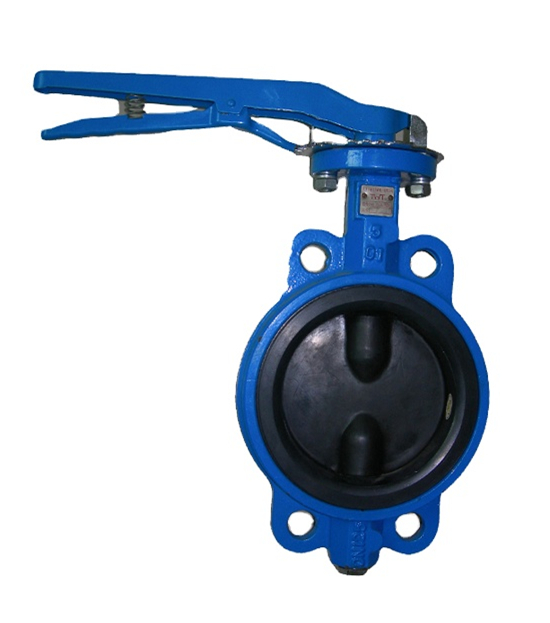

Location:Home > Product Center > Butterfly Valve > D71JButterfly valve with double clip and full rubber lining
With rubber sealing surface and rubber lining butterfly plate, the valve shaft is not in contact with the fluid medium in the cavity. It has tight sealing performance and long service life. It can be used for quick cut-off or flow regulation. It is suitable for occasions requiring reliable sealing and good regulating characteristics.
D71JWith rubber sealing surface and rubber lining butterfly plate, the valve shaft is not in contact with the fluid medium in the cavity. It has tight sealing performance and long service life. It can be used for quick cut-off or flow regulation. It is suitable for occasions requiring reliable sealing and good regulating characteristics.
1. Soft seal, low torque and large flow rate;
2. The sealing surface and butterfly plate are rubber lined to ensure that the valve shaft is not in contact with the fluid medium in the cavity and is more corrosion-resistant;
3. The valve seat is inlaid in the groove of the valve body with elastic strip;
4. The special transition curve at the joint of shaft head and butterfly plate and reasonable interference of valve seat; it has bidirectional sealing function and absolutely ensures zero leakage inside and outside the valve;
1 | valve body | Cast iron, ductile iron, carbon steel, stainless steel |
2 | Disc | Cast iron, ductile iron, carbon steel, stainless steel, carbon steel completely covered with rubber or fluoroplastics |
3 | Stem | Carbon steel nickel phosphorus, stainless steel |
4 | Seat sealing ring | NR, Cr, NBR, EPDM and FKM |
Handle | Aluminum alloy, carbon steel |
Material code of sealing ring | Applicable temperature | Applicable media |
NR | ≤85℃ | Water, air, acid and alkali |
CR | ≤85℃ | Water, gas, acid and alkali |
NBR | ≤100℃ | Water, oil |
EPDM | ≤120℃ | Water, steam, general acid and alkali |
FKM | ≤150℃ | Water, steam, strong acid and alkali |
Test lining layer: electric spark detection
The test and inspection shall be in accordance with GB / t13927 standard
Nominal pressure: PN (MPA)
Valve body: PN × 1.5
Seal: PN × 1.1
Design and manufacture: gb12238
Structure length: gb12221 (20 series)
Flange connection size: gb4216

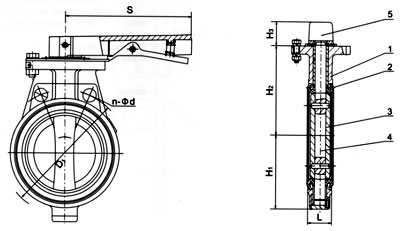

D71JMain connection dimensions of double clip butterfly valve with rubber lining(mm) |
|||||||||||
Nominal diameter |
Nominal pressure |
working pressure |
L |
D |
D1 |
n-Φd |
H1 |
H2 |
S |
H3 |
quality |
40 |
1.6 |
1.6 |
33 |
150 |
110 |
4-18 |
55 |
100 |
235 |
27 |
2 |
50 |
|
|
43 |
165 |
125 |
4-18 |
64 |
120 |
235 |
27 |
2.5 |
65 |
|
|
46 |
185 |
145 |
4-18 |
80 |
120 |
235 |
27 |
4.5 |
80 |
|
|
46 |
200 |
160 |
8-18 |
112 |
130 |
265 |
27 |
5.5 |
100 |
|
|
52 |
220 |
180 |
8-18 |
90 |
145 |
265 |
27 |
6.5 |
125 |
|
|
56 |
250 |
210 |
8-18 |
112 |
160 |
365 |
32 |
11.5 |
150 |
|
|
56 |
285 |
240 |
8-22 |
135 |
175 |
365 |
32 |
13.5 |
