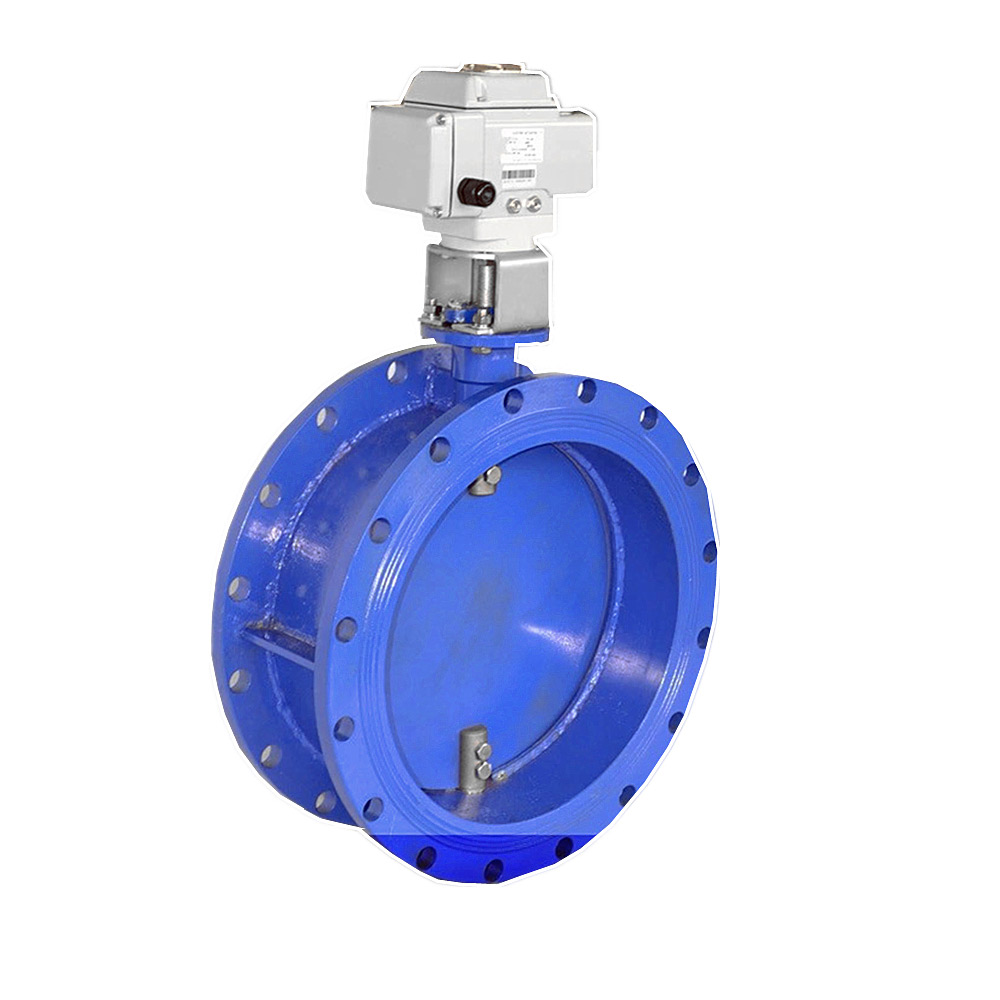

TD941WThe electric ventilation large diameter butterfly valve is made of steel plate welding, which has the characteristics of short structure size, light weight and convenient installation. The valve has small driving torque, flexible opening and closing, and convenient operation. There is no visible gap between the sealing pairs and the leakage rate is small. The expansion gap between butterfly plate and valve body is large, which can effectively prevent the jamming caused by heat expansion and cold contraction. The valve can be equipped with a variety of driving devices, such as manual device, worm gear transmission device, pneumatic device, electric device. Ventilation butterfly valve is widely used in metallurgy, petrochemical, electric power, building materials, mining and other industrial pipelines, to control or regulate medium gas

TD941WMain technical parameters of large diameter butterfly valve with electric ventilation

Leakage rate（Mpa)	0.05MPa	Medium temperature	-30℃～-350℃
strength test	0.1MPa	Applicable media	Cold and hot air, flue gas
Medium velocity	25m/s	Leakage rate	3%



TD941WMaterials of main parts of large diameter butterfly valve with electric ventilation

Part name	Part name	Valve plate	Valve shaft
Material Science	carbon steel	carbon steel	Carbon steel, stainless steel

1. Before installation, check whether the specification, pressure, temperature and corrosion resistance of butterfly valve meet the use requirements. Check whether the parts are damaged or loose.
2. The butterfly valve can be installed on the pipeline at any angle and should be closed; when welding the pipe flange, the valve sealing port should be blocked with a plate to prevent particles and sundries from damaging the sealing surface. After welding, take down the valve, clean the valve sealing surface and pipe cavity, and then install the fixed valve.
3. Please pay attention to the pressure bearing direction when the valve is closed.
4. Before installation, the sealing surface (sealing surface at both ends, sealing surface of butterfly plate and sealing surface of valve seat) shall be thoroughly cleaned to remove dust and dirt.
5. Before installation, the butterfly valve should be air tested, and the opening and closing position should be flexible, and the opening and closing position should be consistent with the position indicated by the pointer.
6. Manual operation, clockwise is off, counter clockwise is on, pointer indication is in place, it is not allowed to open and close the valve with additional force.
7. During the pressure test of the valve, it is not allowed to use single flange for installation and pressure test, but double flange installation and pressure test must be adopted. The test pressure shall comply with GB / T13927-92.
8. The bolts shall be tightened symmetrically and alternately instead of separately.
9. The limit screw has been adjusted before delivery, so it is not allowed to adjust it easily. If the configuration of driving device is electric or pneumatic, please refer to the manual of supporting drive device.
10. When the electric butterfly valve leaves the factory, the opening and closing stroke of the control mechanism has been adjusted. In order to prevent the wrong direction when the power supply is connected, the user should first manually open it to the half open position before connecting the power for the first time, and then press the inching switch to check that the direction of the indicator wheel is consistent with the opening direction of the valve.
11. If the valve is found to be open and closed abnormally, the cause shall be found out for repair and elimination, so as to prevent the valve from being damaged due to opening and closing by means of applying force.
