Location:Home > Product Center > Butterfly Valve > D971J-10Double clip electric fully lined rubber butterfly valve

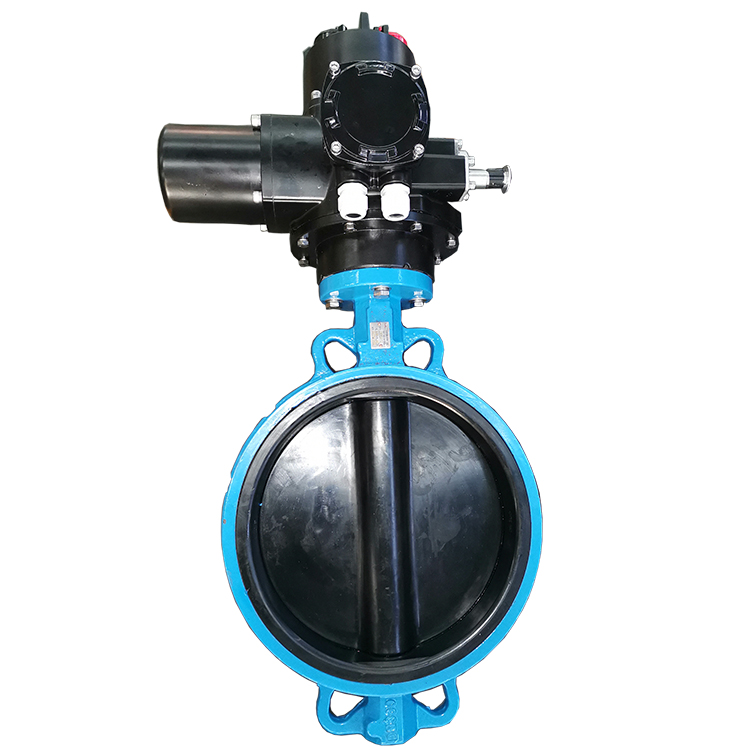

D971J-10The valve body is lined with rubber and the valve plate is covered with rubber. It can be used to control the flow of water, steam, oil, gas, mud, corrosive media, liquid metal and radioactive fluid. Butterfly valve is a butterfly plate with the valve stem rotating together as the opening and closing parts to realize the opening, closing and adjustment of the valve.
D971J-10The valve body is lined with rubber and the valve plate is covered with rubber. It can be used to control the flow of water, steam, oil, gas, mud, corrosive media, liquid metal and radioactive fluid. Butterfly valve is a butterfly plate with the valve stem rotating together as the opening and closing parts to realize the opening, closing and adjustment of the valve. In recent years, the sealing performance of butterfly valve has been regarded as the main evaluation index in pipeline, which is favored by the market. In addition, butterfly valve has the advantages of small size, light weight and simple structure. Compared with the gate valve with the same parameters, the average weight is reduced by 30 ~ 50%. The opening and closing process can be realized by rotating the butterfly plate by 90 degrees. Moreover, due to the similar medium force on both sides of the rotating shaft, the torque is opposite, and the opening and closing torque is small.
D971J-10Temperature resistance and suitable medium of main sealing ring of double clip electric full lined rubber butterfly valve |
||
Material code of sealing ring | Applicable temperature | Applicable media |
NR |
≤85℃ |
Water, air, acid and alkali |
CR |
≤85℃ |
Water, gas, acid and alkali |
NBR |
≤100℃ |
Water, oil |
EPDM |
≤120℃ |
Water, steam, general acid and alkali |
FKM |
≤150℃ |
Water, steam, strong acid and alkali |
1. The design is novel, reasonable, unique in structure, light in weight and quick in opening and closing.
2. Small operating torque, convenient operation, labor saving and dexterous.
3. It can be installed in any position and easy to maintain.
4. The sealing element can be replaced, the sealing performance is reliable, and the two-way sealing is zero leakage.
5. The sealing material has the characteristics of aging resistance, weak corrosion resistance and long service life.
Note: for the corrosion resistance of rubber lined valve, refer to the corrosion resistance table of various chemical media of rubber lined valve.
D971J-10Materials of main parts of clip type electric full lined rubber butterfly valve |
|
valve body | Cast iron, ductile iron, carbon steel, stainless steel |
Disc | Cast iron, nodular cast iron, carbon steel, stainless steel, carbon steel completely coated with rubber |
Stem | |
Seat sealing ring | |
motor unit |
Assembly |
Pressure rating: PN (MPA) 1.01.6
Test: lining layer: EDM
The test and inspection shall be in accordance with GB / t13927 standard
Nominal pressure: PN (MPA)
Valve body: PN × 1.5
Seal: PN × 1.1
All the text, data and pictures in this paper are only for reference. Please contact us for performance parameters, structural dimension parameters and price of d971j-10 double clip electric full lined rubber butterfly valve
