Location：Home > Product Center > Hydraulic Control Valve > BFDS108HX Piston type electric control valve
Telephone：
0577-67975099
It is installed on various water supply pipelines to replace various electric gate valves and electric butterfly valves. It does not need electric device, saves energy and is easy to maintain. It can be operated remotely to realize the linkage control of pump and valve.
It is composed of main valve and external control components. The main valve is composed of valve body, valve plate, valve cover, valve seat, piston, piston cylinder, etc It is composed of solenoid valve and connecting pipe fittings. When the external signal controls the solenoid valve to open, the pressure water in the main valve control room flows out and the main valve opens; when the external signal controls the solenoid valve to close, the pressure medium at the inlet of the main valve enters the control room of the main valve through the regulating valve and filter, so that the piston moves downward to close the main valve.

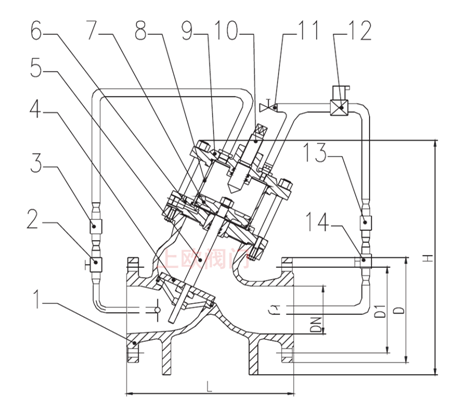

1. Valve body 2, ball valve 3, filter 4, large valve plate 5, valve stem 6, cylinder seat 7, piston 8, piston cylinder 9, cylinder head 10, marking rod 11, ball valve 12, solenoid valve 13, filter 14, ball valve
It is installed on various water supply pipelines to replace various electric gate valves and electric butterfly valves. It does not need electric device, saves energy and is easy to maintain. It can be operated remotely to realize the linkage control of pump and valve.
|
DN |
L |
H |
H0 |
D |
D1 |
N-Фd |
A |
B |
C |
heavy amount |
|||||||||
|
|
|
|
|
PN10 |
PN16 |
PN25 |
PN40 |
PN10 |
PN16 |
PN25 |
PN40 |
PN10 |
PN16 |
PN25 |
PN40 |
|
|
|
|
|
50 |
230 |
320 |
100 |
165 |
165 |
165 |
165 |
125 |
125 |
125 |
125 |
4-Ф18 |
4-Ф18 |
4-Ф18 |
4-Ф18 |
\ |
\ |
\ |
30 |
|
65 |
290 |
370 |
110 |
185 |
185 |
185 |
185 |
145 |
145 |
145 |
145 |
4-Ф18 |
4-Ф18 |
4-Ф18 |
4-Ф18 |
\ |
\ |
\ |
35 |
|
80 |
300 |
400 |
120 |
200 |
200 |
200 |
200 |
160 |
160 |
160 |
160 |
8-Ф18 |
8-Ф18 |
8-Ф18 |
8-Ф18 |
\ |
\ |
\ |
44 |
|
100 |
350 |
480 |
130 |
220 |
220 |
235 |
235 |
180 |
180 |
190 |
190 |
8-Ф18 |
8-Ф18 |
8-Ф22 |
8-Ф22 |
\ |
\ |
\ |
72 |
|
125 |
400 |
470 |
150 |
250 |
250 |
270 |
270 |
210 |
210 |
220 |
220 |
8-Ф18 |
8-Ф18 |
8-Ф26 |
8-Ф26 |
\ |
\ |
\ |
60 |
|
150 |
480 |
620 |
180 |
285 |
285 |
300 |
300 |
240 |
240 |
250 |
250 |
8-Ф22 |
8-Ф22 |
8-Ф26 |
8-Ф26 |
\ |
\ |
\ |
112 |
|
200 |
500 |
700 |
185 |
340 |
340 |
360 |
375 |
295 |
295 |
310 |
320 |
8-Ф22 |
12-Ф22 |
12-Ф26 |
12-Ф30 |
\ |
\ |
\ |
175 |
|
250 |
600 |
800 |
235 |
395 |
405 |
425 |
450 |
350 |
355 |
370 |
385 |
12-Ф22 |
12-Ф26 |
12-Ф30 |
12-Ф33 |
\ |
\ |
\ |
262 |
|
300 |
700 |
840 |
270 |
445 |
460 |
485 |
515 |
400 |
410 |
430 |
450 |
12-Ф22 |
12-Ф26 |
16-Ф30 |
16-Ф33 |
\ |
\ |
\ |
324 |
|
350 |
800 |
1050 |
300 |
505 |
520 |
555 |
580 |
460 |
470 |
490 |
510 |
16-Ф22 |
16-Ф26 |
16-Ф33 |
16-Ф36 |
\ |
\ |
\ |
488 |
|
400 |
900 |
1180 |
325 |
565 |
580 |
620 |
660 |
515 |
525 |
550 |
585 |
16-Ф26 |
16-Ф30 |
16-Ф36 |
16-Ф39 |
\ |
\ |
\ |
710 |
|
450 |
1000 |
1220 |
345 |
615 |
640 |
670 |
685 |
565 |
585 |
600 |
610 |
20-Ф26 |
20-Ф30 |
20-Ф36 |
20-Ф39 |
570 |
350 |
210 |
950 |
|
500 |
1100 |
1400 |
405 |
670 |
715 |
730 |
755 |
620 |
650 |
660 |
670 |
20-Ф26 |
20-Ф33 |
20-Ф36 |
20-Ф42 |
650 |
400 |
225 |
1060 |
|
600 |
1300 |
1530 |
440 |
780 |
840 |
845 |
890 |
725 |
770 |
770 |
795 |
20-Ф30 |
20-Ф36 |
20-Ф39 |
20-Ф48 |
850 |
450 |
225 |
1478 |
|
700 |
1400 |
1800 |
540 |
895 |
910 |
960 |
\ |
840 |
840 |
875 |
\ |
24-Ф30 |
24-Ф36 |
24-Ф42 |
\ |
900 |
650 |
250 |
2015 |
|
800 |
1500 |
1900 |
550 |
1015 |
1025 |
1085 |
\ |
950 |
950 |
990 |
\ |
24-Ф33 |
24-Ф39 |
24-Ф48 |
\ |
900 |
700 |
300 |
2550 |
|
900 |
1700 |
2606 |
620 |
1115 |
1125 |
1185 |
\ |
1050 |
1050 |
1090 |
\ |
28-Ф33 |
28-Ф39 |
28-Ф48 |
\ |
900 |
800 |
350 |
3560 |
|
1000 |
1900 |
2765 |
700 |
1230 |
1255 |
1320 |
\ |
1160 |
1170 |
1210 |
\ |
28-Ф36 |
28-Ф56 |
28-Ф56 |
\ |
1000 |
900 |
450 |
4320 |
