Location:Home > Product Center > Hydraulic Control Valve > 100SAngle type diaphragm sludge discharge valve

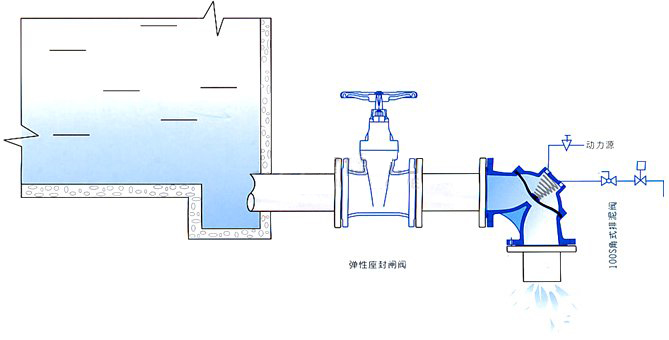

100SAngle type diaphragm sludge discharge valve is a kind of angle type diaphragm stop valve. It is usually installed at the bottom of the sedimentation tank of the sewage treatment plant to remove the sediment and dirt at the bottom of the tank. The inner part of the valve is nylon reinforced rubber diaphragm. The 100A angle type constant water level valve is designed as angle structure, which is conducive to the smooth removal of dirt, convenient installation and long service life.
100s angle diaphragm sludge discharge valve is a kind of angle type diaphragm stop valve. It is usually installed at the bottom of the settling tank of sewage treatment plant to remove the sludge and dirt settled at the bottom of the tank. The inner part of the valve is nylon reinforced rubber diaphragm, and it is designed as an angle structure, which can be used to remove the dirt smoothly. It is easy to install and has a long service life. Angle type diaphragm sludge valve is used in water treatment plant to discharge sewage and waste water in the pool. The valve is of angle structure with nylon reinforced rubber diaphragm inside, which can be used for a long time. Medium temperature: 0 ~ 80 ℃
Nominal pressureMPa |
1.0 |
1.6 |
Shell test pressureMPa |
1.5 |
2.4 |
Sealing test pressureMPa |
1.1 |
1.76 |
零件名称 |
阀体、阀盖 |
阀瓣、弹簧 |
薄膜 |
材料 |
铸铁 |
不锈钢 |
尼龙强SX橡胶 |
DN |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
H |
125 |
145 |
155 |
175 |
200 |
225 |
275 |
325 |
375 |
