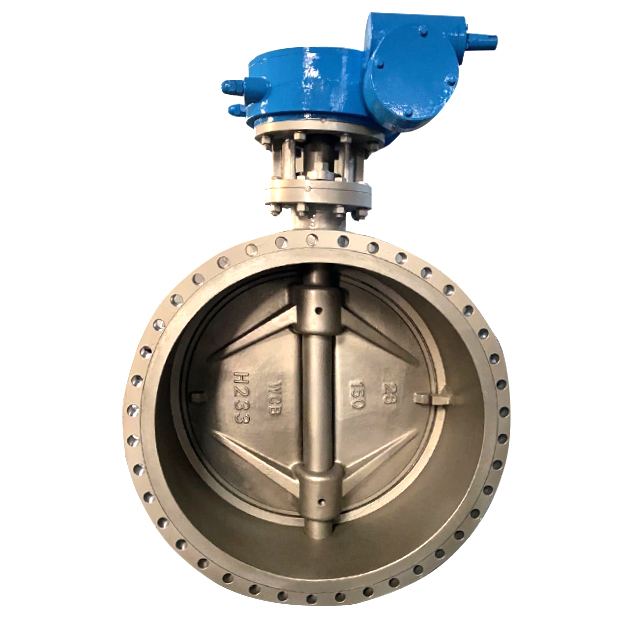

The double clip multi-layer metal hard seal butterfly valve adopts three eccentric structure. The valve seat and disc sealing surface are made of different hardness and stainless steel. It has good corrosion resistance and long service life. The valve has two-way sealing function. The product meets the national GB / T13927-92 valve pressure test standard. The electric double clip type metal hard seal butterfly valve adopts precise J-shaped elastic sealing ring and three eccentric multi-level metal hard sealing structure. It is widely used in gold treatment, electric power, petrochemical industry, water supply and drainage, municipal construction and other industrial pipelines with medium temperature ≤ 425 ℃ for regulating flow and carrying fluid. The valve adopts three eccentric structure. The valve seat and disc sealing surface are made of different hardness and stainless steel. It has good corrosion resistance and long service life. The electric hard seal butterfly valve has bidirectional sealing function. The product meets the national GB / T13927-92 valve pressure test standard.
Dd973 electric double clip multi-level metal hard seal butterfly valve adopts three eccentric structure. The valve seat and disc sealing surface are made of different hardness and stainless steel. It has good corrosion resistance and long service life. The valve has two-way sealing function. The product meets the national GB / T13927-92 valve pressure test standard. The electric double clip type metal hard seal butterfly valve adopts precise J-shaped elastic sealing ring and three eccentric multi-level metal hard sealing structure. It is widely used in gold treatment, electric power, petrochemical industry, water supply and drainage, municipal construction and other industrial pipelines with medium temperature ≤ 425 ℃It is used to regulate the flow rate and to regulate the flow rate on the industrial pipelines for gold treatment, electric power, petrochemical industry, water supply and drainage and municipal construction
The valve adopts three eccentric sealing structure, the valve seat and butterfly plate almost have no wear, with the sealing function of more and more tight.
2.The seal ring is made of stainless steel, which has the double advantages of metal hard seal and elastic seal. It has excellent sealing performance, corrosion resistance and long 3.service life under low and high temperature conditions.
4.The sealing surface of disc plate is made of hardfacing cobalt base cemented carbide, which is wear resistant and has long service life
5.Large size butterfly plate adopts quilting frame structure with high strength, large flow area and small flow resistance.
6.The valve has two-way sealing function. It is not limited by the flow direction of medium or affected by the space position. It can be installed in any direction.
The driving device can be installed in multiple positions (90 ° or 180 ° rotation), which is convenient for users.
Part name | texture of material |
---|---|
valve body | Cast iron, cast steel, stainless steel, chromium molybdenum steel, alloy steel |
Disc | Cast steel, alloy steel (hard chromium plating), stainless steel, chromium molybdenum steel |
seal ring | Cast steel, alloy steel (hard chromium plating), stainless steel, chromium molybdenum steel |
Stem | 2Cr13、1Cr13Stainless steel, chromium molybdenum steel |
filler | Flexible graphite |
Note: DT - stands for elastic sealing structure.
Nominal diameter | DN | 50~1200 | ||||
---|---|---|---|---|---|---|
Nominal pressure | PN | 0.6 | 1.0 | 1.6 | 2.5 | 4.0 |
Test pressure | Strength test | 0.9 | 1.5 | 2.4 | 3.75 | 6.0 |
Sealing experiment | 0.66 | 1.1 | 1.76 | 2.75 | 4.4 | |
Airtight seal test | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | |
Applicable media | Corrosivity of water, steam, oil, acid, etc | |||||
Applicable temperature | Carbon steel: - 29 ℃~ 425 ℃, stainless steel: - 40 ℃~ 600 ℃ |

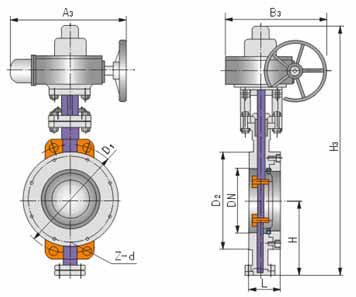

Product name | Nominal diameter |
Structure length (standard value)L |
Overall dimension (reference value) | Connection size (standard value) | |||||||||||||
H |
Dt373H |
Dt673H |
Dt973H |
PN0.6MPa |
PN1.0MPa |
||||||||||||
mm |
inch |
H1 |
A1 |
B1 |
H2 |
A2 |
B2 |
H3 |
A3 |
B3 |
D1 |
Z-d |
D1 |
Z-d |
|||
Dt(3.6.9) 73H -(6.10) C.P.R.VSeries of double clip type elastic metal hard seal butterfly valve |
50 |
2 |
43 |
112 |
350 |
180 |
200 |
625 |
245 |
72 |
530 |
250 |
255 |
110 |
4-14 |
125 |
4-18 |
65 |
21/2 |
46 |
115 |
370 |
180 |
200 |
625 |
245 |
72 |
530 |
250 |
255 |
130 |
4-14 |
145 |
4-18 |
|
80 |
3 |
49 |
120 |
380 |
180 |
200 |
645 |
245 |
72 |
565 |
250 |
255 |
150 |
4-18 |
160 |
8-18 |
|
100 |
4 |
56 |
138 |
420 |
180 |
200 |
675 |
355 |
92 |
600 |
250 |
255 |
170 |
4-18 |
180 |
8-18 |
|
125 |
5 |
64 |
164 |
460 |
180 |
200 |
715 |
355 |
92 |
640 |
250 |
255 |
200 |
8-18 |
210 |
8-18 |
|
150 |
6 |
70 |
175 |
555 |
270 |
280 |
800 |
355 |
92 |
705 |
300 |
315 |
225 |
8-18 |
240 |
8-22 |
|
200 |
8 |
71 |
208 |
605 |
270 |
280 |
850 |
250 |
170 |
775 |
300 |
315 |
280 |
8-18 |
295 |
8-22 |
|
250 |
10 |
76 |
243 |
680 |
270 |
280 |
925 |
250 |
170 |
945 |
300 |
315 |
335 |
12-18 |
350 |
12-22 |
|
300 |
12 |
83 |
283 |
800 |
380 |
420 |
1035 |
450 |
220 |
1070 |
300 |
315 |
395 |
12-22 |
400 |
12-22 |
|
350 |
14 |
92 |
310 |
835 |
380 |
420 |
1070 |
450 |
220 |
1140 |
300 |
315 |
445 |
12-22 |
460 |
16-22 |
|
400 |
16 |
102 |
340 |
915 |
450 |
470 |
1190 |
450 |
220 |
1210 |
300 |
315 |
495 |
16-22 |
515 |
16-26 |
|
450 |
18 |
114 |
380 |
960 |
480 |
490 |
1250 |
650 |
280 |
1335 |
575 |
714 |
550 |
16-22 |
565 |
20-26 |
|
500 |
20 |
127 |
410 |
1020 |
480 |
490 |
1290 |
650 |
280 |
1415 |
575 |
714 |
600 |
20-22 |
620 |
20-26 |
|
600 |
24 |
154 |
470 |
1225 |
480 |
490 |
1455 |
850 |
380 |
1605 |
656 |
810 |
705 |
20-26 |
725 |
20-30 |
|
700 |
28 |
165 |
550 |
1355 |
640 |
660 |
1585 |
850 |
380 |
1844 |
656 |
810 |
810 |
24-26 |
840 |
24-30 |
|
800 |
32 |
190 |
640 |
1470 |
640 |
660 |
1700 |
1250 |
380 |
2040 |
656 |
810 |
920 |
24-30 |
950 |
24-33 |
|
900 |
36 |
203 |
710 |
1545 |
750 |
860 |
1965 |
1250 |
380 |
2255 |
785 |
863 |
1020 |
24-30 |
1050 |
28-33 |
|
1000 |
40 |
216 |
770 |
1795 |
850 |
900 |
2015 |
1250 |
380 |
2380 |
785 |
863 |
1120 |
28-30 |
1160 |
28-36 |
|
1200 |
48 |
254 |
890 |
1965 |
850 |
900 |
2250 |
1250 |
380 |
2640 |
785 |
863 |
1340 |
32-33 |
1380 |
32-39 |
Product name |
Structure length (standard value)L |
Overall dimension (reference value) | Connection size (standard value) | ||||||||||||||
H |
Dt373H |
Dt673H |
Dt973H |
PN1.6MPa |
PN2.5MPa |
||||||||||||
mm |
inch |
H1 |
A1 |
B1 |
H2 |
A2 |
B2 |
H3 |
A3 |
B3 |
D1 |
Z-d |
D1 |
Z-d |
|||
Dt(3.6.9) 73H -(16、25) C.P.R.VSeries of double clip type elastic metal hard seal butterfly valve |
50 |
2 |
43 |
112 |
350 |
180 |
200 |
625 |
245 |
72 |
530 |
250 |
255 |
125 |
4-14 |
125 |
4-18 |
65 |
21/2 |
46 |
115 |
370 |
180 |
200 |
625 |
245 |
72 |
530 |
250 |
255 |
145 |
4-14 |
145 |
8-18 |
|
80 |
3 |
49 |
120 |
380 |
180 |
200 |
645 |
245 |
72 |
565 |
250 |
255 |
160 |
8-18 |
160 |
8-18 |
|
100 |
4 |
56 |
138 |
420 |
180 |
200 |
675 |
355 |
92 |
600 |
250 |
255 |
180 |
8-18 |
190 |
8-22 |
|
125 |
5 |
64 |
164 |
460 |
180 |
200 |
715 |
355 |
92 |
640 |
250 |
255 |
210 |
8-18 |
220 |
8-26 |
|
150 |
6 |
70 |
175 |
555 |
270 |
280 |
800 |
355 |
92 |
705 |
300 |
315 |
240 |
8-22 |
250 |
8-26 |
|
200 |
8 |
71 |
208 |
605 |
270 |
280 |
850 |
250 |
170 |
775 |
300 |
315 |
295 |
12-22 |
310 |
12-26 |
|
250 |
10 |
76 |
243 |
680 |
270 |
280 |
925 |
250 |
170 |
945 |
300 |
315 |
355 |
12-26 |
370 |
12-30 |
|
300 |
12 |
83 |
283 |
825 |
380 |
420 |
1035 |
450 |
220 |
1070 |
300 |
315 |
410 |
12-26 |
430 |
16-30 |
|
350 |
14 |
92 |
310 |
900 |
380 |
420 |
1070 |
450 |
220 |
1140 |
300 |
315 |
470 |
16-26 |
490 |
16-33 |
|
400 |
16 |
102 |
340 |
980 |
450 |
470 |
1190 |
450 |
220 |
1210 |
300 |
315 |
525 |
16-30 |
550 |
16-36 |
|
450 |
18 |
114 |
380 |
1030 |
480 |
490 |
1250 |
650 |
280 |
1335 |
575 |
714 |
585 |
20-30 |
600 |
20-36 |
|
500 |
20 |
127 |
410 |
1105 |
480 |
490 |
1290 |
650 |
280 |
1415 |
575 |
714 |
650 |
20-33 |
660 |
20-36 |
|
600 |
24 |
154 |
470 |
1310 |
480 |
490 |
1455 |
850 |
380 |
1605 |
656 |
810 |
770 |
20-36 |
770 |
20-39 |
|
700 |
28 |
165 |
550 |
1435 |
640 |
660 |
1585 |
850 |
380 |
1844 |
656 |
810 |
840 |
24-36 |
875 |
24-42 |
|
800 |
32 |
190 |
640 |
1605 |
640 |
660 |
1700 |
1250 |
380 |
2040 |
656 |
810 |
950 |
24-39 |
990 |
24-48 |
|
900 |
36 |
203 |
710 |
1745 |
750 |
860 |
1865 |
1250 |
380 |
2255 |
785 |
863 |
1050 |
28-39 |
1090 |
28-48 |
|
1000 |
40 |
216 |
770 |
1885 |
850 |
900 |
2015 |
1250 |
380 |
2380 |
785 |
863 |
1170 |
28-42 |
1210 |
28-56 |
|
1200 |
48 |
254 |
890 |
2105 |
850 |
900 |
2250 |
1250 |
380 |
2640 |
785 |
863 |
1390 |
32-48 |
1420 |
32-56 |
Note: the sizes of H1, H2 and H3 in the table can be lengthened according to the user's needs (long rod butterfly valve). If special materials are needed, they should be put forward when ordering.
Note: DT - stands for elastic sealing structure.
Product name | Nominal diameter | Structure length (standard value) | Overall dimension (reference value) | Connection size (standard value) | |||||||||||
H |
Dt373H |
Dt673H |
Dt973H |
PN4.0MPa |
|||||||||||
mm |
inch |
H1 |
A1 |
B1 |
H2 |
A2 |
B2 |
H3 |
A3 |
B3 |
D1 |
Z-d |
|||
Dt(3.6.9) 73H-40C.P.R.VSeries of double clip type elastic metal hard seal butterfly valve |
50 |
2 |
43 |
112 |
350 |
180 |
200 |
625 |
250 |
170 |
530 |
250 |
255 |
125 |
4-18 |
65 |
21/2 |
46 |
115 |
370 |
270 |
280 |
625 |
250 |
170 |
530 |
250 |
255 |
145 |
8-18 |
|
80 |
3 |
49 |
120 |
380 |
270 |
280 |
645 |
250 |
170 |
565 |
250 |
255 |
160 |
8-18 |
|
100 |
4 |
56 |
138 |
420 |
270 |
280 |
675 |
250 |
170 |
600 |
250 |
255 |
190 |
8-22 |
|
125 |
5 |
64 |
164 |
460 |
380 |
420 |
715 |
450 |
220 |
640 |
250 |
255 |
220 |
8-26 |
|
150 |
6 |
70 |
175 |
555 |
380 |
420 |
800 |
450 |
220 |
705 |
300 |
315 |
250 |
8-26 |
|
200 |
8 |
71 |
208 |
605 |
450 |
470 |
850 |
450 |
220 |
775 |
300 |
315 |
320 |
12-30 |
|
250 |
10 |
76 |
243 |
680 |
450 |
470 |
925 |
450 |
280 |
945 |
300 |
315 |
385 |
12-33 |
|
300 |
12 |
83 |
283 |
825 |
450 |
470 |
1035 |
650 |
280 |
1070 |
300 |
315 |
450 |
16-33 |
|
350 |
14 |
92 |
310 |
900 |
480 |
490 |
1070 |
650 |
280 |
1140 |
300 |
315 |
510 |
16-36 |
|
400 |
16 |
102 |
340 |
980 |
480 |
490 |
1190 |
650 |
280 |
1210 |
300 |
315 |
585 |
16-39 |
|
450 |
18 |
114 |
380 |
1030 |
640 |
660 |
|
|
|
1335 |
575 |
714 |
610 |
20-39 |
|
500 |
20 |
127 |
410 |
1105 |
640 |
660 |
|
|
|
1415 |
575 |
714 |
670 |
20-42 |
Note: flange standard: GB / t9113.1-2000 GB / t9113.2-2000 GB / t9115.1-2000 GB / t9115.2-2000
Note: the sizes of H1, H2 and H3 in the table can be lengthened according to the user's needs (long rod butterfly valve). If special materials are needed, they should be put forward when ordering.
