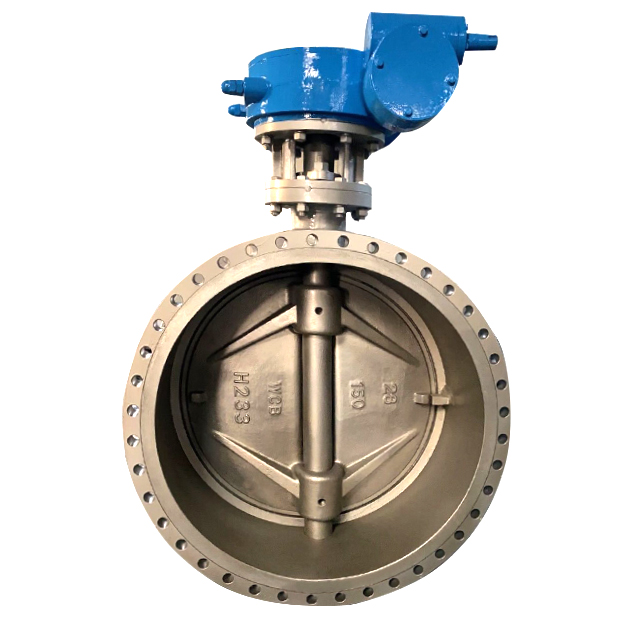

Three eccentric multi-level metal hard seal butterfly valve series products, is a long life, energy-saving butterfly valve. Its structure adopts the three-dimensional core principle design, the valve seat adopts the multi-level structure of hard and soft sealing compatibility, advanced technology and exquisite processing. This product is composed of valve body, butterfly plate, multi-level valve seat, valve rod, transmission mechanism and other main components.
Three eccentric multi-level metal hard seal butterfly valve series products, is a long life, energy-saving butterfly valve. Its structure adopts the three-dimensional core principle design, the valve seat adopts the multi-level structure of hard and soft sealing compatibility, advanced technology and exquisite processing. This product is composed of valve body, butterfly plate, multi-level valve seat, valve rod, transmission mechanism and other main components.
Three eccentric multi-layer metal hard seal butterfly appendix is widely used in metallurgy, electric power, petrochemical, air, gas, water supply and drainage pipelines with medium temperature ≤ 650 ℃ for regulating flow and cutting off fluid. Its sealing performance is reliable, which is the extension and development direction of universal butterfly valve to medium pressure and medium high temperature fields.
Because the design of this product is based on the principle of three-dimensional eccentricity, the space movement track of the sealing surface is idealized, and there is no friction and interference between the sealing surfaces. In addition, the optimized configuration of sealing materials ensures the sealing performance, corrosion resistance, high temperature resistance and wear resistance of the butterfly valve.
Its main features are as follows: 1. Small opening torque, convenient display and energy saving. 2. The three-dimensional braided core structure makes the butterfly root closer and tighter, and its sealing performance is reliable and there is no leakage. 3. High pressure resistance, corrosion resistance, wear resistance, long service life, etc.
Nominal diameter |
DN(mm) |
50-2000 |
50-500 |
|||
Nominal pressure |
PN(MPa) |
0.6 |
1.0 |
1.6 |
2.5 |
4.0 |
Test pressurePs(MPa) |
strength test |
0.9 |
1.5 |
2.4 |
3.75 |
6.0 |
|
Sealing test |
0.66 |
1.1 |
1.76 |
2.75 |
4.4 |
|
Airtight seal test |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
Leakage rate | Conform to the standard of conform GB / t13927 | |||||
Carbon steel: - 29 ℃ ~ 425 ℃ stainless steel: - 40 ℃ ~ 600 ℃ | ||||||
Applicable media | Air, water, steam, gas, oil and acid, alkali, salt with weak corrosive medium | |||||
Driving form |

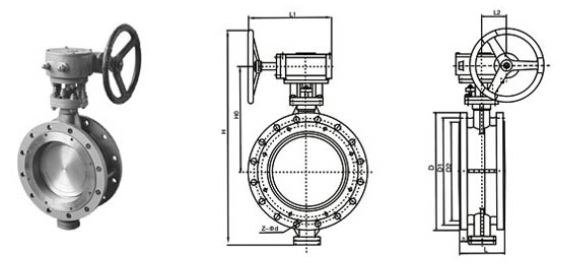

Design and manufacture | Flange connection | Structural length | Test and inspection |
GB/T 12238 |
GB/T9113.1 GB/T9113.2 GB/T 9115.1 GB/T 9115.2 HG20592 |
GB/T 12221 |
GB/T 13927 |
Nominal diameter |
DN(mm) |
50-2000 |
50-500 |
|||
Nominal pressure |
PN(MPa) |
0.6 |
1.0 |
1.6 |
2.5 |
4.0 |
Test pressurePs(MPa) |
strength test |
0.9 |
1.5 |
2.4 |
3.75 |
6.0 |
|
Sealing test |
0.66 |
1.1 |
1.76 |
2.75 |
4.4 |
|
Airtight seal test |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
Leakage rate |
<0.1 x DNmm3/s(in accordance with conform GB / t13927 standard) |
|||||
Applicable temperature | Carbon steel: - 29 ℃ ~ 425 ℃ stainless steel: - 40 ℃ ~ 600 ℃ | |||||
Applicable media | Air, water, steam, gas, oil and acid, alkali, salt with weak corrosive medium | |||||
Driving form | Worm gear drive, pneumatic drive, electric drive, hydraulic drive |
