Location:Home > Product Center > Hydraulic Control Valve > Yx741X-(10/16/25)-Adjustable pressure reducing and stabilizing valve
Diaphragm adjustable pressure reducing and stabilizing valve is a special valve which is installed on the pipeline of water supply and drainage system of high-rise buildings, and accumulates the inlet pressure to a certain required outlet pressure. YX741X diaphragm type adjustable pressure reducing valve relies on its own energy to keep the outlet pressure stable at the set value, that is, the outlet pressure does not change due to the change of inlet pressure and flow rate, and a self-cleaning filter screen is installed at the inlet of the valve control system, which makes use of the fluid characteristics to prevent the suspended particles with larger specific gravity and larger diameter from entering the control system, so as to ensure the smooth circulation of the system and the valve The door can operate safely and reliably. The system is sensitive and has long service life.
Yx741X-(10/16/25)-Diaphragm adjustable pressure reducing and stabilizing valve is a special valve which is installed on the pipeline of water supply and drainage system of high-rise buildings, and accumulates the inlet pressure to a certain required outlet pressure. YX741X diaphragm type adjustable pressure reducing valve relies on its own energy to keep the outlet pressure stable at the set value, that is, the outlet pressure does not change due to the change of inlet pressure and flow rate, and a self-cleaning filter screen is installed at the inlet of the valve control system, which makes use of the fluid characteristics to prevent the suspended particles with larger specific gravity and larger diameter from entering the control system, so as to ensure the smooth circulation of the system and the valve The door can operate safely and reliably. The system is sensitive and has long service life.
At present, hydraulic control valve is widely used in petrochemical, chemical, gas, natural gas, liquefied petroleum gas, HVAC industry and general industry.

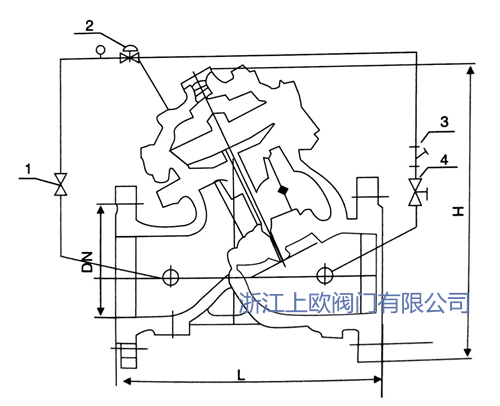

1. Filter 2, needle valve 3, small ball valve 4, small ball valve 5, small ball valve
Nominal diameter |
L |
L1 |
H Diaphragm type |
H Piston type |
D |
D1 |
Z-Φd |
||||
|
|
|
|
|
PN10 |
PN16 |
PN10 |
PN16 |
PN10 |
PN16 |
|
50 |
203 |
203 |
270 |
540 |
160 |
125 |
4-18 |
||||
65 |
216 |
216 |
340 |
600 |
180 |
145 |
4-18 |
||||
80 |
241 |
241 |
400 |
660 |
195 |
160 |
4-18 |
4-18 |
|||
100 |
292 |
292 |
440 |
760 |
215 |
180 |
8-18 |
||||
125 |
330 |
330 |
460 |
810 |
245 |
210 |
8-18 |
||||
150 |
394 |
356 |
500 |
860 |
285 |
240 |
8-23 |
||||
200 |
457 |
495 |
640 |
880 |
335 |
295 |
8-23 |
12-23 |
|||
250 |
533 |
622 |
680 |
950 |
390 |
405 |
350 |
355 |
12-23 |
12-25 |
|
300 |
610 |
698 |
820 |
1020 |
440 |
460 |
400 |
410 |
12-23 |
12-25 |
|
350 |
686 |
787 |
950 |
1100 |
500 |
520 |
460 |
470 |
16-23 |
16-25 |
|
400 |
762 |
914 |
980 |
1250 |
565 |
580 |
515 |
525 |
16-25 |
16-30 |
|
450 |
864 |
978 |
1050 |
1350 |
615 |
640 |
565 |
585 |
20-25 |
20-30 |
|
500 |
914 |
978 |
1120 |
1550 |
670 |
715 |
620 |
650 |
20-25 |
20-34 |
|
600 |
1067 |
1200 |
1400 |
1600 |
780 |
840 |
725 |
770 |
20-30 |
20-41 |
|
700 |
1150 |
1450 |
1650 |
1850 |
895 |
910 |
840 |
840 |
24-30 |
24-41 |
|
800 |
1300 |
1560 |
1950 |
2050 |
1010 |
1025 |
950 |
950 |
24-34 |
24-41 |
|
900 |
1450 |
1800 |
/ |
2250 |
1115 |
/ |
1050 |
/ |
28-34 |
/ |
|
1000 |
1600 |
2000 |
/ |
2500 |
1230 |
/ |
1160 |
/ |
28-34 |
/ |
|
1200 |
1800 |
/ |
/ |
|
1455 |
/ |
1380 |
/ |
32-41 |
/ |
|
1400 |
2100 |
/ |
/ |
|
1675 |
/ |
1590 |
/ |
36-48 |
/ |
|
1600 |
2250 |
/ |
/ |
|
1915 |
/ |
1820 |
/ |
40-54 |
/ |
|
1800 |
2400 |
/ |
/ |
|
2115 |
/ |
2020 |
/ |
44-54 |
/ |
