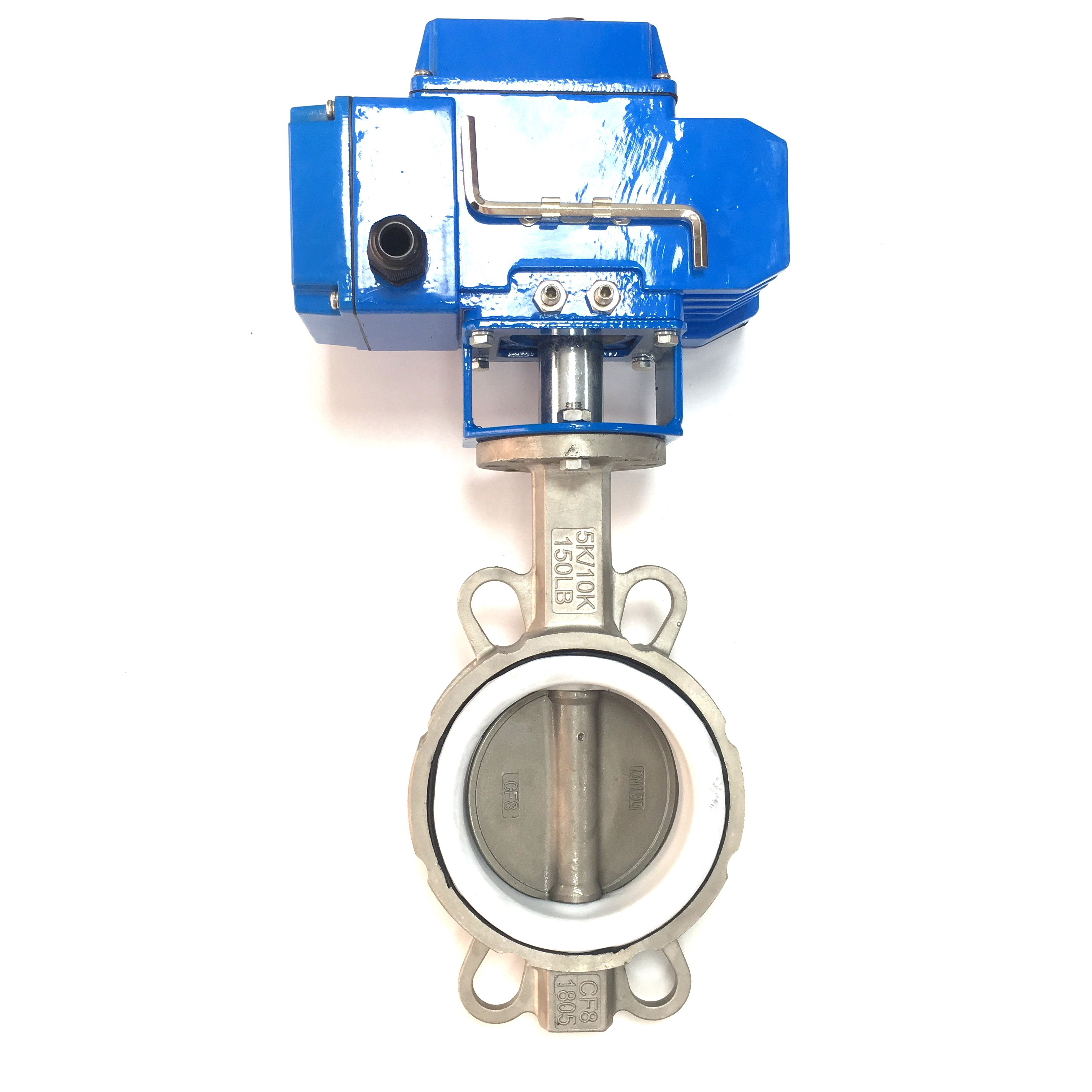

D971XThe clamp type electric soft seal butterfly valve is composed of PTFE seal butterfly valve, stainless steel valve plate and valve stem. Suitable for temperature ≤ 150 ℃, weak corrosion or cleanliness has certain requirements, high temperature and high pressure conditions can choose three eccentric hard seal valve body.
D971XThe clamp type electric soft seal butterfly valve is composed of PTFE seal butterfly valve, stainless steel valve plate and valve stem. Suitable for temperature ≤ 150 ℃, weak corrosion or cleanliness has certain requirements, high temperature and high pressure conditions can choose three eccentric hard seal valve body. It can be indicated when ordering. It can be widely used in food, environmental protection, light industry, petroleum, chemical industry, teaching equipment, papermaking, electric power and other industries of industrial process automatic control system. In food, medicine, chemical industry, petroleum, electric power, textile, papermaking and other water supply and drainage, gas pipeline for regulating flow and intercepting medium.
1. The design is novel, reasonable, unique in structure, light in weight and quick in opening and closing.
2. Small operating torque, convenient operation, labor saving and dexterous.
3. It can be installed in any position and easy to maintain.
4. The sealing element can be replaced, the sealing performance is reliable, and the two-way sealing is zero leakage.
5. The sealing material has the characteristics of aging resistance, corrosion resistance and long service life.
Nominal diameterDN(mm) | 50~2000 | 50~1600 | |
Nominal pressurePN(Mpa) | 0.6 | 1.0 | 1.6 |
Sealing test(Mpa) | 0.66 | 1.1 | 1.76 |
strength test(Mpa) | 0.9 | 1.5 | 2.4 |
Applicable temperature | Nitrile rubber: - 40 ℃ ~ 90 ℃ fluororubber: - 20 ℃ ~ 200 ℃ | ||
Applicable media | Water, air, natural gas, oil and weak corrosive fluid | ||
Leakage rate | In accordance with GB / T13927-92 | ||
Driving mode | Worm gear drive, electric, pneumatic and hydraulic |
Part name | Material Science |
valve body | WCB、QT450-10、HT200、HT250 |
Disc | WCB、QT450-10、HT200、HT250 |
Valve shaft | 2Cr13 |
seal ring | Oil resistant nitrile rubber |
filler | Flexible graphite |
Design standard: GB / t2238-1989
Flange connection size: GB / t9113.1-2000; GB / t9115.1-2000; jb78
Structural length: GB / t12221-1989
Pressure test: GB / t13927-1992; JB / t9092-1999
Flange standard | |
Flange standard | GB9113-2000、GB17241.6-1998 |
Structural length standard | GB12221-89 |
Inspection standard | GB/T 13927-92 |
DN | L | H | HO | A | B | 0.6MPa | 1.0MPa | 1.6MPa | |||
DO | n-Фd | DO | n-Фd | DO | n-Фd | ||||||
50 | 43 | 63 | 438 | 125 | 125 | 110 | 4-14 | 125 | 4-18 | 125 | 4-18 |
65 | 46 | 70 | 453 | 125 | 125 | 130 | 4-14 | 145 | 4-18 | 145 | 4-18 |
80 | 46 | 83 | 478 | 125 | 125 | 150 | 4-18 | 160 | 8-18 | 160 | 8-18 |
100 | 52 | 105 | 519 | 125 | 125 | 170 | 4-18 | 180 | 8-18 | 180 | 8-18 |
125 | 56 | 115 | 713 | 325 | 245 | 200 | 8-18 | 210 | 8-18 | 210 | 8-18 |
150 | 56 | 137 | 749 | 325 | 245 | 225 | 8-18 | 240 | 8-22 | 240 | 8-22 |
200 | 60 | 164 | 843 | 325 | 245 | 280 | 8-18 | 295 | 8-22 | 295 | 8-22 |
250 | 68 | 206 | 947 | 363 | 313 | 335 | 12-18 | 350 | 12-22 | 355 | 12-26 |
300 | 78 | 230 | 1013 | 363 | 313 | 395 | 12-22 | 400 | 12-22 | 410 | 12-26 |
350 | 78 | 248 | 1046 | 363 | 313 | 445 | 12-22 | 460 | 16-22 | 470 | 16-26 |
400 | 102 | 289 | 1135 | 363 | 313 | 495 | 16-22 | 515 | 16-26 | 525 | 16-30 |
450 | 114 | 320 | 1328 | 465 | 439 | 550 | 16-22 | 565 | 20-26 | 585 | 20-30 |
500 | 127 | 343 | 1226 | 546 | 481 | 600 | 20-22 | 620 | 20-26 | 650 | 20-33 |
600 | 154 | 413 | 1394 | 546 | 556 | 705 | 20-26 | 725 | 20-30 | 770 | 20-36 |
700 | 165 | 478 | 1534 | 546 | 556 | 810 | 24-26 | 840 | 24-30 | 840 | 24-36 |
800 | 190 | 525 | 1159 | 546 | 556 | 920 | 24-30 | 950 | 24-33 | 950 | 24-39 |
900 | 203 | 585 | 1748 | 617 | 706 | 1020 | 24-30 | 1050 | 28-33 | 1050 | 38-39 |
1000 | 216 | 640 | 1805 | 632 | 706 | 1120 | 28-30 | 1160 | 28-36 | 1170 | 28-42 |
1200 | 254 | 755 | 2035 | 632 | 706 | 1340 | 32-33 | 1380 | 32-39 | 1390 | 32-48 |
1. Before installation, check whether the specification, pressure, temperature and corrosion resistance of butterfly valve meet the use requirements. Check whether the parts are damaged or loose.
2. The butterfly valve can be installed on the pipeline at any angle and should be closed; when welding the pipe flange, the valve sealing port should be blocked with a plate to prevent particles and sundries from damaging the sealing surface. After welding, take down the valve, clean the valve sealing surface and pipe cavity, and then install the fixed valve.
3. Please pay attention to the pressure bearing direction when the valve is closed.
4. Before installation, the sealing surface (sealing surface at both ends, sealing surface of butterfly plate and sealing surface of valve seat) shall be thoroughly cleaned to remove dust and dirt.
5. Before installation, the butterfly valve should be air tested, and the opening and closing position should be flexible, and the opening and closing position should be consistent with the position indicated by the pointer.
6. Manual operation, clockwise is off, counter clockwise is on, pointer indication is in place, it is not allowed to open and close the valve with additional force.
7. During the pressure test of the valve, it is not allowed to use single flange for installation and pressure test, but double flange installation and pressure test must be adopted. The test pressure shall comply with GB / T13927-92.
8. The bolts shall be tightened symmetrically and alternately instead of separately.
9. The limit screw has been adjusted before delivery, so it is not allowed to adjust it easily. Please refer to the manual for electric drive device.
10. When the electric butterfly valve leaves the factory, the opening and closing stroke of the control mechanism has been adjusted. In order to prevent the wrong direction when the power supply is connected, the user should first manually open it to the half open position before connecting the power for the first time, and then press the inching switch to check that the direction of the indicator wheel is consistent with the opening direction of the valve.
11. If the valve is found to be open and closed abnormally, the cause shall be found out for repair and elimination, so as to prevent the valve from being damaged due to opening and closing by means of applying force.
