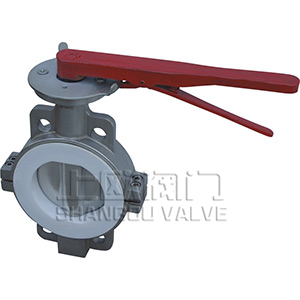

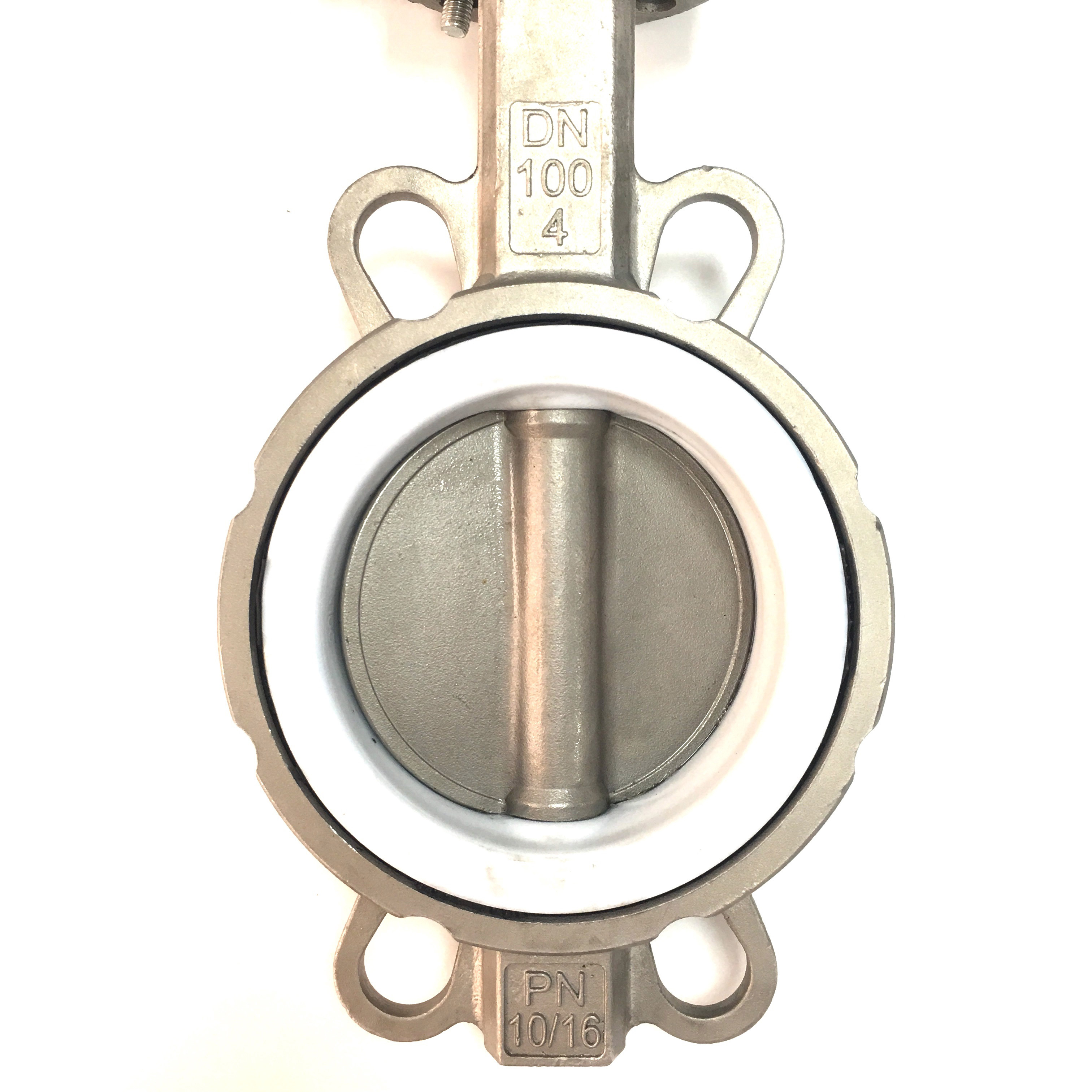

D71F4-16PStainless steel wafer half lining butterfly valve uses the butterfly plate rotating with the valve stem as the opening and closing parts to realize the opening, closing and adjustment of the valve. In addition, the butterfly valve has the advantages of small volume, light weight and simple structure. Compared with the gate valve with the same parameters, the average weight is reduced by 30-50%. The opening and closing process can be realized by rotating the butterfly plate by 90 degrees. Moreover, the butterfly plates on both sides of the rotating shaft are subjected to approximately equal medium force and the torque is opposite, so the opening and closing torque is small.
D71F4-16PStainless steel wafer half lining butterfly valve uses the butterfly plate rotating with the valve stem as the opening and closing parts to realize the opening, closing and adjustment of the valve. In addition, the butterfly valve has the advantages of small volume, light weight and simple structure. Compared with the gate valve with the same parameters, the average weight is reduced by 30-50%. The opening and closing process can be realized by rotating the butterfly plate by 90 degrees. Moreover, the butterfly plates on both sides of the rotating shaft are subjected to approximately equal medium force and the torque is opposite, so the opening and closing torque is small.
Model: d71f4-16p caliber (DN): 50 ~ 1600 (mm) pressure (PN): 1.0 ~ 1.6 (MPA) product price: telephone date: 15-03-30 browse: 197 times
1. The center line butterfly valve is that the whole butterfly plate and valve seat are concentric in 360 ° circle (center line), with bidirectional sealing function, and the pressure and flow can be adjusted freely;
2. Four stage loading elastic seal ensures zero leakage inside and outside the valve;
3. Reasonable interference between the special transition curve at the joint of shaft head and butterfly plate and valve seat;
4. The end face of shaft head is composed of elastic O-ring, rigid washer and elastic rubber pad at shaft shoulder;
5. The radial direction of the shaft adopts the combination of O-ring and metal pad;
6. The valve seat is inlaid in the groove of the valve body with elastic strip;
7. Adjustable elastic bullet positioning. The positioning is accurate and the structure is simple.
D71F4-16PBasic model of stainless steel half Lined Butterfly Valve |
|||
Manual |
DA71F/P Half lining |
Worm gear transmission |
DA371F/P Half lining |
DA71F3 Fully lined |
DA371F3 Fully lined |
||
DA71F4 Fully lined |
DA371F4 Fully lined |
||
DA71F46 Fully lined |
DA371F46 Fully lined |
||
Pneumatic |
DA671F/P Half lining |
Electric |
DA971F/P Half lining |
DA671F3 Fully lined |
DA971F3 Fully lined |
||
DA671F4 Fully lined |
DA971F4 Fully lined |
||
DA671F46 Fully lined |
DA971F46 Fully lined |
D71F4-16PMaterial list of main parts and components of stainless steel half Lined Butterfly Valve |
|||||||
Serial number | Part name | Gray cast iron | cast steel | stainless steel | Ultra low carbon valve | ||
Z |
C |
P |
R |
PL |
RL |
||
1 |
Upper and lower valve bodies |
HT250 |
WCB |
CF8 |
CF8M |
CF3 |
CF3M |
2 |
Disc |
WCB |
35(Forging) |
CF8 |
CF8M |
CF3 |
CF3M |
3 |
Disc shaft |
1Cr13 |
2Cr13 |
1Cr18Ni9 |
1Cr18Ni12Mo2Ti |
00Cr18Ni10 |
00Cr17Ni14Mo2 |
4 |
Liner / seat |
PTFE(F4)、PCTFE(F3)、FEP(F46)、PFA(solubility4) |
|||||
O-ring |
FPM(Fluororubber) |
||||||
6 |
Elastic strip (PAD) |
Si(silicon rubber) |
|||||
7 |
Adjusting positioning seat |
0Cr18Ni9 |
0Cr18Ni9 |
1Cr18Ni9 |
1Cr18Ni12Mo2Ti |
00Cr18Ni10 |
00Cr17Ni14Mo2 |
8 |
Bolt |
35 |
1Cr17Ni2 |
1Cr18Ni9Ti |
|||
9 |
Nut |
45 |
0Cr18Ni9 |
0Cr18Ni9 |
|||
10 |
handwheel |
Q235 |
Note: for the corrosion resistance of rubber lined valve, refer to the corrosion resistance table of various chemical media of rubber lined valve.
All the text, data and pictures in this paper are only applicable for reference. For details of performance parameters, structural dimension parameters and price of d71f4-16p stainless steel half lined butterfly valve, please contact us at
