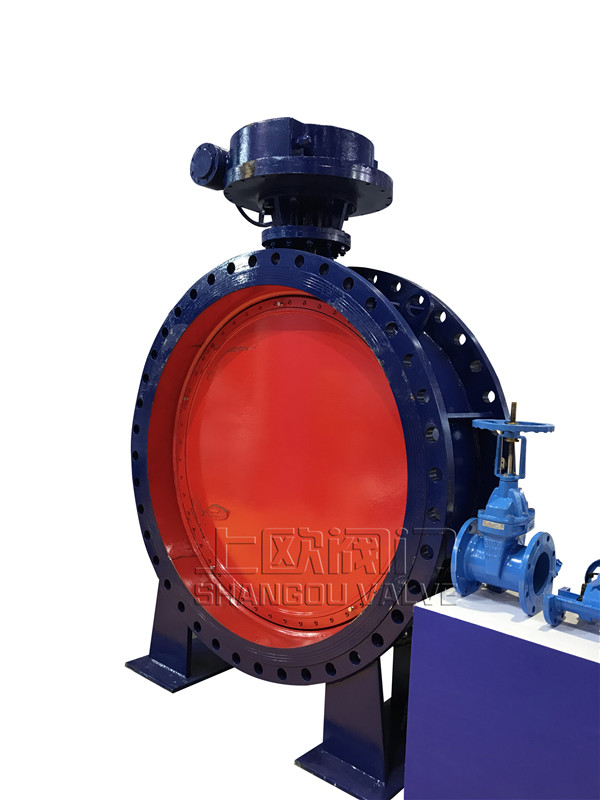

Dd343The butterfly type butterfly valve with multi level metal hard seal butterfly gear has the advantages of compact structure, small size, light weight, convenient operation, reliable performance, simple maintenance, anti-aging, anti radiation, durable, long life, high temperature and pressure resistance, wide application scope, etc.
Dd343The butterfly type butterfly valve with multi level metal hard seal butterfly gear has the advantages of compact structure, small size, light weight, convenient operation, reliable performance, simple maintenance, anti-aging, anti radiation, durable, long life, high temperature and pressure resistance, wide application scope, etc. It is widely used in thermal pipe, boiler auxiliary system, petrochemical and metallurgical industries, and used to cut off and adjust various non corrosive and corrosive media.
DN |
Structural lengthL |
Overall dimension (reference value) |
Flange size (standard value)Flange dnwnsions (standard) |
|||||||||||||
millimeter mm |
Britain寸 Inches |
L |
H |
Dd373H |
Dd673H |
Dd973H |
PN4.0MPa |
|||||||||
|
|
short | long |
|
H1 |
A1 |
B1 |
H2 |
A2 |
B2 |
H3 |
A3 |
B3 |
D |
D1 |
Z-d |
50 |
2 |
108 |
150 |
112 |
350 |
180 |
200 |
625 |
250 |
170 |
530 |
250 |
255 |
165 |
125 |
4-18 |
65 |
2 1/2 |
112 |
170 |
115 |
370 |
270 |
280 |
625 |
250 |
170 |
530 |
250 |
255 |
185 |
145 |
8-18 |
80 |
3 |
114 |
180 |
120 |
380 |
270 |
280 |
645 |
250 |
170 |
565 |
250 |
255 |
200 |
160 |
8-18 |
100 |
4 |
127 |
190 |
138 |
420 |
270 |
280 |
675 |
250 |
170 |
600 |
250 |
255 |
235 |
190 |
8-22 |
125 |
5 |
140 |
200 |
164 |
460 |
380 |
420 |
715 |
450 |
220 |
640 |
250 |
255 |
270 |
220 |
8-26 |
150 |
6 |
140 |
210 |
175 |
555 |
380 |
420 |
800 |
450 |
220 |
704 |
300 |
315 |
300 |
250 |
8-26 |
200 |
8 |
152 |
230 |
208 |
780 |
400 |
425 |
850 |
450 |
220 |
775 |
300 |
315 |
375 |
320 |
12-30 |
250 |
10 |
165 |
250 |
243 |
830 |
400 |
425 |
925 |
450 |
280 |
945 |
300 |
315 |
450 |
385 |
12-33 |
300 |
12 |
178 |
270 |
285 |
895 |
450 |
560 |
1035 |
650 |
280 |
1070 |
300 |
315 |
515 |
450 |
16-33 |
350 |
14 |
190 |
290 |
320 |
950 |
450 |
560 |
1070 |
650 |
280 |
1140 |
300 |
315 |
580 |
510 |
16-36 |
