100X The float valve is used to precisely control the water level of the water tank. When the water level reaches the set upper limit, the floating ball guide valve is closed, the main valve is closed, and the pipeline stops water supply; when the water level drops, the float valve opens, the main valve opens, and the pipeline starts to supply water. The float guide valve can be installed separately in the water tank or together with the main valve. .

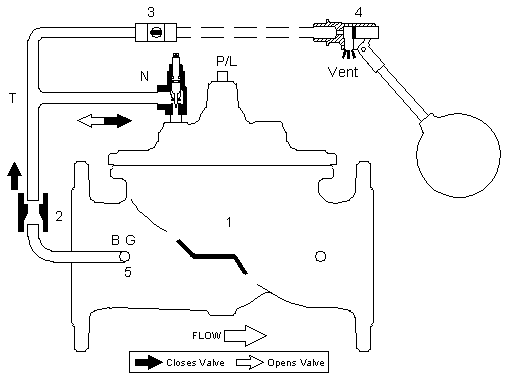

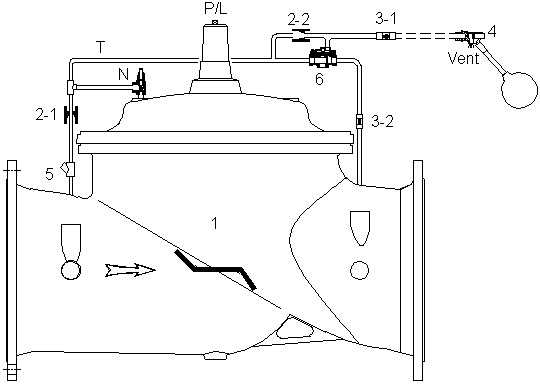

1、Main valve

2、Restrictor

3、globe valve

4、Floating ball guide valve

5、filter

5、*Accelerator (DN250 & above)

N. Needle valve
B. Ball valve
G. Pressure gauge
P. Indicator
50. Travel switch

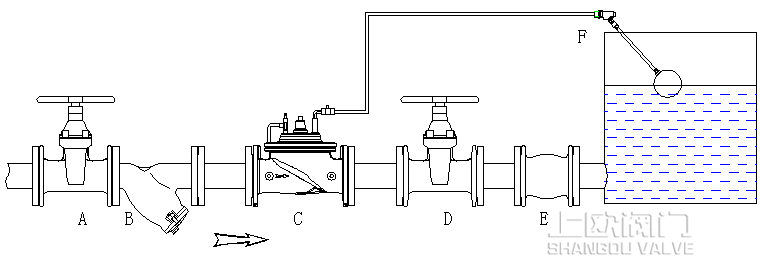

A. Inlet block valve
B. Filter R
C. Floating ball valve
D. Outlet block valve
E. Flexible joint
F. Floating ball guide valve
