Location:Home > Product Center > Hydraulic Control Valve > HQ45XBall check valve with micro resistance

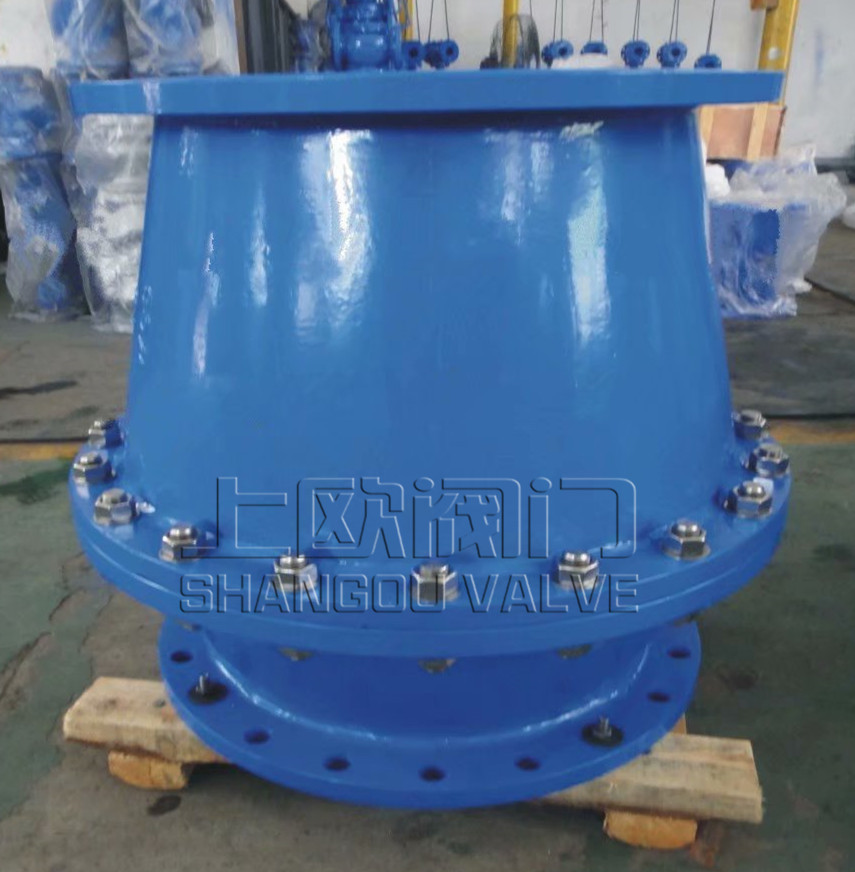

HQ45XThe micro resistance ball check valve has the advantages of large flow rate, small flow resistance loss, good sealing performance, silencing closing and reducing water hammer wave. It can be installed horizontally or vertically. Can be installed with cold water, hot water, industrial and domestic sewage and other official website pump outlet, to prevent the medium backflow. The valve has few parts and is easy to disassemble.

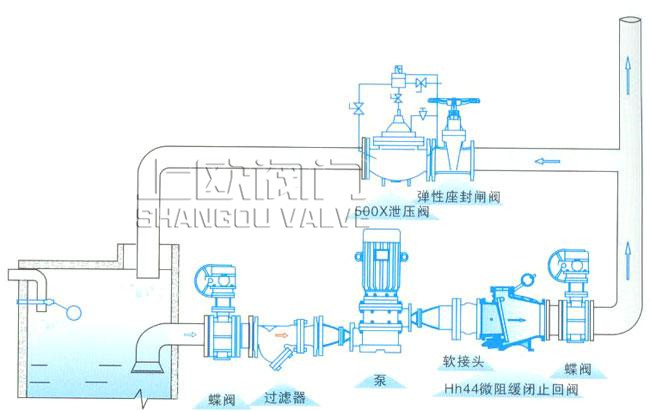

HQ45XThe micro resistance ball type check valve adopts the rubber covered ball as the valve disc. Under the action of medium, it can roll on the slide way in the valve body, so as to open or close the valve. It has the advantages of large flow rate, small flow resistance loss, good sealing performance, noise elimination and closing, which can reduce water hammer wave. It can be installed horizontally or vertically. It can be used for water pump outlet of cold water, hot water, industrial and domestic sewage pipe network to prevent medium backflow. The models of ball check valve produced by our company are: hq44x / hq45x.
The ball check valve has the advantages of large flow rate, small flow resistance loss, good sealing performance, silencing closing and reducing water hammer wave. It can be installed horizontally or vertically. Can be installed with cold water, hot water, industrial and domestic sewage and other official website pump outlet, to prevent the medium backflow. The valve has few parts and is easy to disassemble. The rubber layer of the ball has good elasticity and wear resistance, so it has vibration absorption, easy sealing and safe and reliable operation.
Nominal pressure: 1.0 ~ 1.6Mpa
Nominal diameter: 50-1000mm
Applicable medium: water and weak corrosive fluid
Applicable temperature: 0 ~ 80 ℃
Flange standard: GB / T 17241.6 GB / T 9113
Test standard: GB / T 13927 ap1598
technical parameter |
Nominal pressure(MPA) |
Shell test pressure(MPA) |
Sealing test pressure(MPA) |
body material | Sphere material |
HQ44/45X-10 |
1.0 |
1.5 |
1.1 |
cast iron | Carbon steel coating |
HQ44/45X-16 |
1.6 |
2.4 |
1.76 |
Part name | valve body | Disc | valve seat | Spring |
Material Science | Cast iron, ductile iron and cast steel | Cast copper, stainless steel | Copper, stainless steel | stainless steel |

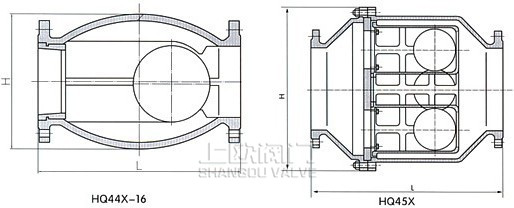

DN |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
700 |
800 |
900 |
1000 |
L |
203 |
216 |
241 |
292 |
330 |
356 |
495 |
622 |
698 |
781 |
914 |
978 |
978 |
1295 |
1448 |
1600 |
1760 |
1900 |
H |
180 |
210 |
225 |
245 |
280 |
320 |
380 |
450 |
470 |
500 |
|
|
|
|
|
|
|
|
H1 |
|
|
|
|
|
|
510 |
570 |
640 |
715 |
815 |
825 |
980 |
1155 |
1260 |
1350 |
1660 |
1700 |
