Location:Home > Product Center > Hydraulic Control Valve > YQ98005Type a filtering piston type slow closing check valve
YQ98005The filtering piston type electric floating ball valve is based on the remote control float valve, which is equipped with the electric control device of normally open solenoid valve. The electric floating ball valve has double safety function. Even in the case of power failure or electric floating ball failure, it can control the water level, and never allow the water level to exceed the warning line or overflow. The electric floating ball valve can set the opening and closing water level to solve the problem of frequent opening and closing of the main valve. It is a new generation of water level control valve.
Product name: |
Product model: |
YQ98005 |
|
Driving mode: |
electromagnetism |
Connection form: |
flange |
structural style: |
Piston type |
Sealing structure: |
Elastic soft seal |
Pressure range: |
1.6Mpa-2.5Mpa |
Nominal diameter: |
DN40-400 |
Common materials: |
Ductile iron, cast iron, cast steel |
Nameplate: |
Shanghai European brand |

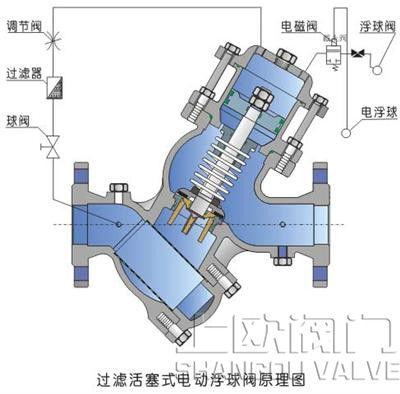

YQ98005The filtering piston type electric floating ball valve is based on the remote control float valve, which is equipped with the electric control device of normally open solenoid valve. The electric floating ball valve has double safety function. Even in the case of power failure or electric floating ball failure, it can control the water level, and never allow the water level to exceed the warning line or overflow. The electric floating ball valve can set the opening and closing water level to solve the problem of frequent opening and closing of the main valve. It is a new generation of water level control valve. It is mainly installed at the water inlet of the pool or elevated water tower. When the water level reaches the set height, the main valve is controlled by the floating ball guide valve to close the water inlet and stop the water supply; when the water level drops, the main valve is controlled by the floating ball guide valve to open the water inlet to inject water into the pool, so as to realize automatic water supplement. It can be installed, maintained, debugged and checked at any position according to the height of the pool and the service space, and has a long service life. Reliable performance, high strength and smooth action. The valve body adopts streamline design with small fluid resistance and large flow rate; the main valve is installed outside the pool, which is convenient for debugging and maintenance.
On the basis of the remote control ball valve, the electric control device of normally open solenoid valve is installed. The electric floating ball valve has double safety function. Even in the case of power failure or electric floating ball failure, it can control the water level, and never allow the water level to exceed the warning line or overflow. The electric floating ball valve can set the opening and closing water level to solve the problem of frequent opening and closing of the main valve. It is a new generation of water level control valve.
1. Close tightly and reliably. Using the solid Q-ring seal and hydraulic control principle, the sliding disc closing is proportional to the water inlet pressure, and the sealing reliability is high.
2. The flow rate is large. The valve body adopts full channel streamline design, with small fluid resistance and large flow rate.
3. Safe operation. With hydraulic operation, the liquid level of water tower or pool can be controlled automatically with high accuracy.
4. Easy to use and maintain. The main valve is installed outside the pool, which is convenient for debugging and maintenance.
The filtering piston type electric floating ball valve is widely used in municipal water supply and drainage, fire control, industrial and mining enterprises and other pools or water tower inlet pipes. As an automatic water level control valve, it is the preferred product of water tank and water tower inlet valve.

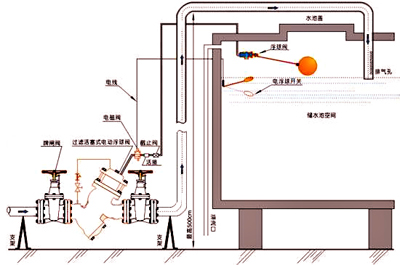

YQ98005The filtering piston type electric floating ball valve is mainly installed at the water inlet of the pool or elevated water tower. When the water level reaches the set height, the main valve is controlled by the floating ball guide valve to close the water inlet and stop water supply; when the water level drops, the main valve is controlled by the floating ball guide valve to open the water inlet to inject water into the pool, so as to realize automatic water supplement. It can be installed, maintained, debugged and checked at any position according to the height of the pool and the service space, and has a long service life. Reliable performance, high strength and smooth action. The valve body adopts streamline design with small fluid resistance and large flow rate; the main valve is installed outside the pool, which is convenient for debugging and maintenance.
Diameter pressure |
1.6Mpa |
||||||||||
Nominal diameter(DN) |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
400 |
Applicable temperature |
0-100 |
||||||||||
ambient temperature |
-30-350 |
||||||||||
Applicable media |
Water (if sea water is used, order should be indicated)
|
