Location:Home > Product Center > Hydraulic Control Valve > AX742X-(10/16/25)-Safety relief valve
AX742XThe safety relief valve is installed on the pipelines of high-rise buildings, fire water supply system and other water supply systems. When the pressure in the water supply pipeline exceeds the set pressure of the pressure relief valve, the pressure relief valve will automatically open for quick pressure relief to protect the safety of the pipeline. It can also be used as a pressure holding valve to ensure the water supply pressure upstream of the main valve. It can accurately maintain the same safety set pressure, once overpressure, the pressure relief valve will open quickly and relieve pressure in time. Stable and reliable closing and elimination of pressure residual wave.
AX742XThe safety relief valve is installed on the pipelines of high-rise buildings, fire water supply system and other water supply systems. When the pressure in the water supply pipeline exceeds the set pressure of the pressure relief valve, the pressure relief valve will automatically open for quick pressure relief to protect the safety of the pipeline. It can also be used as a pressure holding valve to ensure the water supply pressure upstream of the main valve. It can accurately maintain the same safety set pressure, once overpressure, the pressure relief valve will open quickly and relieve pressure in time. Stable and reliable closing and elimination of pressure residual wave.
When the water pump starts up, the water pressure acts on the bottom of the main valve disc and the lower chamber of the control room, which makes the main valve open. The water in the upper chamber of the control room is slowly discharged to the outlet end through the regulating valve B, and the main valve is opened slowly. The proper opening speed of the main valve can be obtained by setting the opening of the regulating valve. When the water pump stops working, the water pressure at the inlet end drops rapidly, and most of the opening is quickly closed under the action of self weight and spring pressure to prevent water backflow. The remaining opening is slowly closed under the joint action of the water pressure of the upper chamber and the lower chamber of the control room, and the closing speed is slowed down to form a slow impact to prevent the pressure from sharply increasing. Setting the opening and opening ratio of regulating valves a and B can obtain the appropriate valve opening and closing speed.
The product is composed of main valve, regulating valve and connecting pipe system. The valve body adopts the direct current valve body. The main valve control room is a diaphragm type or piston type double control room structure. The control room is added with one more than the general hydraulic control valve. The control function of the main valve is increased. The multi-function control of the pump outlet such as slow opening, full opening, slow closing and cut-off is realized The multi-function control of the water pump outlet is realized by the secondary regulation. The connecting pipe system of this product is controlled by regulating valve. By setting the opening of the regulating valve, it is convenient to realize the required control parameters, such as the opening speed and slow closing speed of the main valve.
Nominal pressure(Mpa) |
Shell test pressure(MPa) |
Sealing test pressure(MPa) |
Applicable media |
Medium temperature(℃) |
1.0 |
1.5 |
1.1 |
水 |
0-80 |
1.6 |
2.4 |
1.76 |
||
2.5 |
3.75 |
2.75 |
Part name | Parts material |
Body bonnet |
WCB |
Seat disc | copper alloy |
Sealing ring O-ring | Nitrile rubber |
Stem |
2Cr13 |
Spring |
50CrVA |
Needle valve | copper alloy |
copper alloy | copper alloy |
Relief / holding pilot valve | copper alloy |
Microfilter | stainless steel |

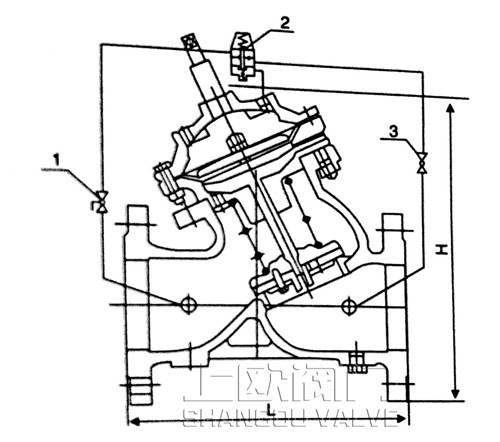

Nominal diameter |
L |
L1 |
H Diaphragm type |
H Piston type |
D |
D1 |
Z-Φd |
||||
|
|
|
|
|
PN10 |
PN16 |
PN10 |
PN16 |
PN10 |
PN16 |
|
50 |
203 |
203 |
270 |
540 |
160 |
125 |
4-18 |
||||
65 |
216 |
216 |
340 |
600 |
180 |
145 |
4-18 |
||||
80 |
241 |
241 |
400 |
660 |
195 |
160 |
4-18 |
4-18 |
|||
100 |
292 |
292 |
440 |
760 |
215 |
180 |
8-18 |
||||
125 |
330 |
330 |
460 |
810 |
245 |
210 |
8-18 |
||||
150 |
394 |
356 |
500 |
860 |
285 |
240 |
8-23 |
||||
200 |
457 |
495 |
640 |
880 |
335 |
295 |
8-23 |
12-23 |
|||
250 |
533 |
622 |
680 |
950 |
390 |
405 |
350 |
355 |
12-23 |
12-25 |
|
300 |
610 |
698 |
820 |
1020 |
440 |
460 |
400 |
410 |
12-23 |
12-25 |
|
350 |
686 |
787 |
950 |
1100 |
500 |
520 |
460 |
470 |
16-23 |
16-25 |
|
400 |
762 |
914 |
980 |
1250 |
565 |
580 |
515 |
525 |
16-25 |
16-30 |
|
450 |
864 |
978 |
1050 |
1350 |
615 |
640 |
565 |
585 |
20-25 |
20-30 |
|
500 |
914 |
978 |
1120 |
1550 |
670 |
715 |
620 |
650 |
20-25 |
20-34 |
|
600 |
1067 |
1200 |
1400 |
1600 |
780 |
840 |
725 |
770 |
20-30 |
20-41 |
|
700 |
1150 |
1450 |
1650 |
1850 |
895 |
910 |
840 |
840 |
24-30 |
24-41 |
|
800 |
1300 |
1560 |
1950 |
2050 |
1010 |
1025 |
950 |
950 |
24-34 |
24-41 |
|
900 |
1450 |
1800 |
/ |
2250 |
1115 |
/ |
1050 |
/ |
28-34 |
/ |
|
1000 |
1600 |
2000 |
/ |
2500 |
1230 |
/ |
1160 |
/ |
28-34 |
/ |
|
1200 |
1800 |
/ |
/ |
|
1455 |
/ |
1380 |
/ |
32-41 |
/ |
|
1400 |
2100 |
/ |
/ |
|
1675 |
/ |
1590 |
/ |
36-48 |
/ |
|
1600 |
2250 |
/ |
/ |
|
1915 |
/ |
1820 |
/ |
40-54 |
/ |
|
1800 |
2400 |
/ |
/ |
|
2115 |
/ |
2020 |
/ |
44-54 |
/ |
1. Product name of pressure relief valve
2. Pressure relief valve nominal pressure
3. Nominal diameter of pressure relief valve
4. Product model of pressure relief valve
5. Pressure relief valve body material
6. Rated flow coefficient of relief valve
7. Pressure relief valve working medium
8. Pressure relief valve medium temperature
9. Whether the pressure relief valve is equipped with accessories so as to select the right type for you
10. If there are special requirements, please indicate when ordering.
11. If the model has been selected by the design unit, please order directly from our sales department according to the model.
12. When the application occasion is very important or the environment is complex, please provide the design drawing as far as possible, and let our valve experts in Europe audit for you.
