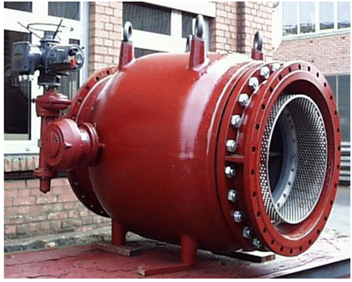

LHS941XThe electric piston type regulating valve is a speed regulating and pressure regulating valve developed on the basis of the advanced experience of Germany and Japan and the domestic design and manufacture and practical experience. It has been widely used in power station, water diversion, water supply and other fields. The improved series of flow control valves are not only suitable for clean water, but also have good tolerance for natural rivers, lakes and mild sewage. From the design structure and material selection, the problems of scaling, jamming and large driving device of flow control valve for many years have been solved.

『LHS941XElectric piston type flow and pressure regulating valve is a professional manufacturer. The piston type flow and pressure regulating valve independently developed and produced by our factory has reliable quality, reasonable price and perfect after-sales service. "Lhs941x electric piston type flow and pressure regulating valve" is suitable for all kinds of heavy and light industries and building pipelines. European quality, global share! [hydraulic control valve] is widely used in chemical industry, petrochemical industry, petroleum, papermaking, mining, electric power, liquefied gas, food, pharmaceutical, water supply and drainage, municipal, mechanical equipment supporting, electronic industry, urban construction and other fields.

Product name	LHS941XElectric piston type flow and pressure regulating valve
Product model	LHS941X
Nominal diameter	DN350-2200mm
Pressure range	0.6-1.0MPa
body material	Cast steel, stainless steel

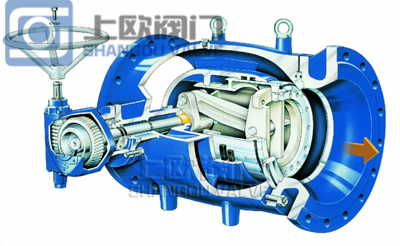

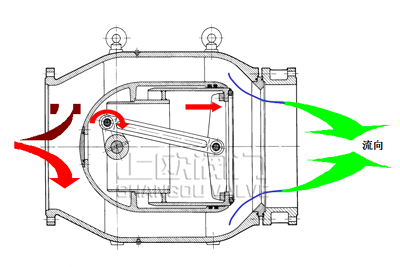

Piston type flow and pressure regulating valve is a kind of valve which can meet various special regulation requirements. Its regulating function is realized by the piston like valve plug moving along the axial direction (water flow direction) in the valve chamber, so as to control the valve area of water flow.

The piston valve is mainly used for linear flow regulation or stable decompression of the system without vibration, cavitation noise, cavitation and pipeline damage.

1. Valve plate different from butterfly valve or gate valve: the plug (not valve plate) of piston valve moves along the axial direction (flow direction).
2. The opening or closing device of piston valve is in the shape of piston.
3. The water flow section at any position in the valve body is annular structure.

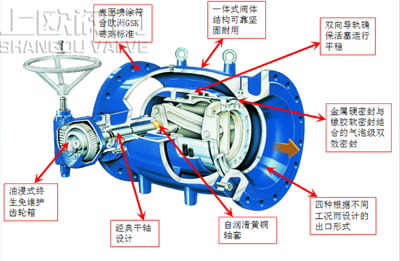

Structural features



Applications
1. It can be used as relief valve and explosion-proof pipe valve in high-end water diversion project.
2. Water storage can be used as liquid level or pressure regulating valve.
3. It can be used as the flow control valve in the water transmission project of pipe network.
4. Water purification or sewage treatment works can be used as pump start-up protection valve or water and gas flow control valve.
5. adjust the pressure balance in the water supply process.
Under the condition of no vibration, no noise, no cavitation and no damage to the pipeline, linear flow regulation or stable decompression is the basic requirement to ensure the long service life of the valve. According to different working conditions, there are more than four types of outlet piston type regulating valve. Therefore, the selection process of piston type regulator is as follows: firstly, determine the cavitation grade according to the system regulating parameters, and then determine the outlet form of the piston valve. Then, according to the kV Series curve of the selected outlet type piston valve, the fixed size of the valve is determined. That is to say: on the premise of long life and stable operation, the structure of piston type regulating valve is selective, and the regulating index performance under ideal working condition can not be specified at will. Different types of flow regulating valves correspond to different cavitation grades and flow capacity. For the determined system size, the valve may not work in the best working condition if the regulating pressure level or flow parameters are given randomly. Cavitation erosion refers to the phenomenon that the liquid vaporizes due to the sharp drop of pressure at the back end of throttling device under the action of throttling, and then in the process of bubble annihilation, it causes strong impact on the micro surface of the device, resulting in noise, vibration and corrosion.

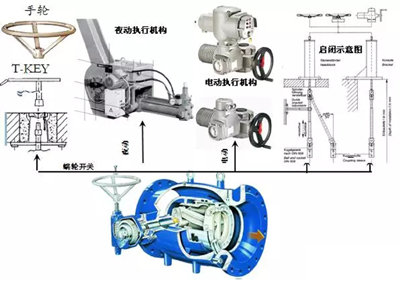

Electric drive is the common form of flow and pressure regulating valve
Piston type flow and pressure regulating valve is equipped with various brands of electric actuator as standard
Main features of neeinn electric actuator:
1. Integrated design, reduce a lot of field wiring 2. Provide IP68 standard selection 3. LCD 4. Suitable for frequently started motor 5. Limit, torque, thermal limit, mechanical position indication 6. Modular design structure, flexible expansion of control function 7. Motor and gear box with self-locking function 8. Fieldbus system 9. Compact structure 10. Long life design
Application and maintenance

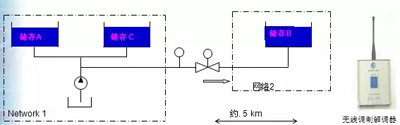

Installed in water supply project: connect two separate existing pipeline networks, and regulate flow and pressure by radio controlled piston type regulating valve.

Case and application site





Nominal diameter dn350-1400mm
Nominal pressure 1.0 0.6 MPa
Test pressure seal 1.10.66 shell 1.50.9
The suitable temperature is 0 ～ + 80 ℃
Suitable for medium water, drinking water and sewage

1. The electric pressure and flow regulating valve produced by our company is of piston structure, the regulating mechanism of piston type control valve should be crank slider mechanism, and the sliding block of closing part is cylindrical or conical piston. The inner cylinder of the valve body can move axially along the center of the pipeline under the guide of the guide rail, thus changing the area of the flow passage to realize the function of regulating the flow rate and reducing the pressure. The connection form with the pipeline is flange connection, and the flange connection size and structure length meet the requirements of corresponding din.
2. Piston control valve is composed of valve body, piston, crank, connecting rod, energy dissipation device, valve rod, shaft sleeve, valve seat, sealing ring and other main components.
3. The valve body of piston control valve is a streamline axisymmetric flow channel. The fluid in the valve body can be well guided without turbulence, which can significantly reduce the noise and vibration of the valve. Ensure that the valve also has good cavitation resistance under high pressure difference, and its allowable cavitation coefficient should not be greater than 0.4. 4. The piston control valve has excellent linear regulation performance, so that the control system can control the valve through the feedback signal of the outlet pressure transmitter, and keep the outlet pressure constant.
5. The piston type control valve has reliable sealing performance and ensures no leakage when the control valve is fully closed. The piston type control valve has no jamming and harmful vibration under normal operation conditions, which ensures the safe and reliable operation of the equipment. The service life is not less than 30 years. The piston control valve has good anti blocking ability. It can be applied to the fluid with sediment and small particle impurities. The piston type control valve can ensure the safety and reliability of the whole thrust resistance and avoid harmful vibration under the maximum working pressure difference and dynamic water opening and closing operation conditions.
6. The piston control valve is driven by motor. The motor driving device shall have good waterproof performance, flexible action, safety and reliability, and the manual operation torque shall meet the national standard. The electric device of piston control valve includes motor, reduction worm gear, mechanical limit adjusting mechanism, torque control mechanism, travel control mechanism, opening indication mechanism and manual electric conversion device. The electric device of piston type control valve adopts Mechatronics design and is equipped with local operation control box.
Performance characteristics
·Valve overload protection
·Valve travel protection
·Manual / electric switching device
·Valve opening position indication device
·Valve open and close contacts, contact wire lead out should meet the requirements of local and remote control room.
1. Good linearity: due to the special structure design inside the valve body, it has good linearity for the flow control characteristics of the fluid, even in the first 10% stroke, it still has good flow control effect.
2. Anti cavitation and anti vibration: make full use of the principle of fluid dynamics to design the flow passage, eliminate the damage of cavitation and vibration to the pipe network, and greatly improve the service life of valves and pipelines.
3. The design of the valve is not reliable because of the small size of the valve, or the valve can not be closed due to the leakage of small particles.
4. High pressure energy dissipation: even in the case of high pressure difference, the valve can effectively eliminate high pressure energy, reduce high pressure to low pressure, and will not produce vibration and cavitation phenomenon, effectively ensure the service life of the valve.
5. Excellent material selection: the key parts of the valve, such as valve seat, stop block, guide rail and other parts, are made of special non reinforced material, which is wear-resistant and cavitation resistant, and its hardness is three times that of ordinary non steel bar.
6. Floating valve seat: the connection between the valve seat and the cone is bonded with special silica gel, which has high viscosity and shear resistance. When the floating seat is sealed, the valve seat has self centering effect, which makes the sealing more reliable.
7. Small fluid resistance: the advanced structure design and reasonable flow distribution of the valve reduce the pressure loss of the whole valve to influence, which is conducive to saving the power consumption of the whole pipe network.
8. Small operating torque: the opening and closing parts of the valve are sleeve gates, whose movement direction is consistent with the flow direction of the main pipe fluid, and the effective stress area is small, so the operating torque required for opening and closing the valve is also very small, and the cost of driving device can be greatly reduced.
9. Long service life: the main seal of the valve is metal, which has reliable sealing, strong resistance to fluid erosion, and is not easy to be damaged by mixed garbage. In addition, most parts are made of stainless steel, so the service life of the valve is greatly improved.

Valve body ductile iron
Piston austenitic stainless steel 1.4301
Piston drive crank shaft stainless steel 2Cr13
Bearing bronze seal ring NBR
Connecting bolt stainless steel 1Cr13
