500XPressure relief / pressure holding valve / emergency opening valve

  • Profile:

    500The pressure maintaining relief valve is a kind of control valve driven by hydraulic pressure and controlled by pilot valve, which is used to keep the pressure in front of the valve constant. The valve can be used in various working conditions such as pressure holding, pressure relief and standby pressure of pipeline system; The set pressure can be adjusted according to the site conditions

Product overview

500The pressure maintaining relief valve is a kind of control valve driven by hydraulic pressure and controlled by pilot valve, which is used to keep the pressure in front of the valve constant.
The valve can be used in various working conditions such as pressure holding, pressure relief and standby pressure of pipeline system
The set pressure can be adjusted according to the site conditions

Standard configuration
  1. Main valve
  2. Restrictor
  3. Needle valve
  4. Relief pilot valve
  5. globe valve
  6. filter
Optional configuration

B. Ball valve
G. pressure gauge
P indicator
L. travel switch

Common systems

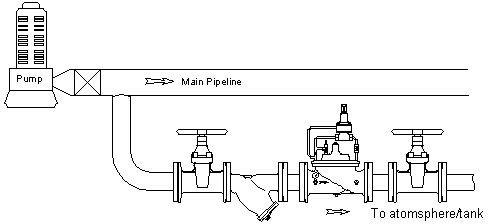

Pressure relief valve:
When the pressure of main pipeline exceeds the set value (especially when the water pump suddenly opens or closes), the pressure relief valve opens rapidly to release the excess pressure and maintain the main line pressure at the normal level; when the main pipeline pressure returns to normal, the pressure relief valve is closed.

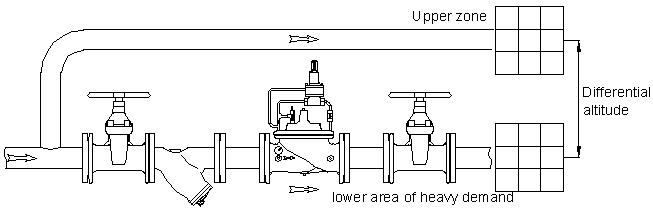

Pressure holding valve:
When the altitude difference between users is large, in order to meet the priority of water use in high altitude areas, it is necessary to install pressure holding valves in low altitude areas.
