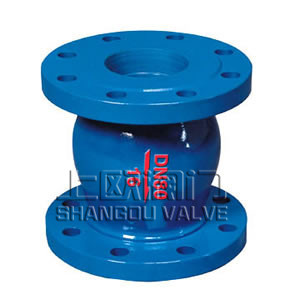

H42T/DRVZType V silent check valve is composed of valve body, valve seat, guide body, valve disc, bearing bush and spring. The internal flow passage adopts streamline design, the pressure loss is very small, the opening and closing stroke of valve disc is very short, and the opening and closing stroke of pump stop is very short. When the pump is stopped, it can be closed quickly to prevent huge water hammer sound and form silent effect.
H42T/DRVZType V silent check valve is composed of valve body, valve seat, guide body, valve disc, bearing bush and spring. The internal flow passage adopts streamline design, the pressure loss is very small, the opening and closing stroke of valve disc is very short, and the opening and closing stroke of pump stop is very short. When the pump is stopped, it can be closed quickly to prevent huge water hammer sound and form silent effect. It is mainly used for water supply, drainage, fire protection and HVAC systems. It can be installed at the outlet of water pump to prevent the damage of medium backflow and water hammer to the pump.
H42T/DRVZMain technical parameters of silent check valve |
|||
model |
DRVZ/T-10 |
DRVZ/T-16 |
DRVZ/T-25Q |
Nominal pressure |
PN1.0MPa |
PN1.5MPa |
PN2.5MPa |
Nominal diameter |
DN50~DN300(mm) |
||
Maximum working pressure |
1.0MPa |
1.6MPa |
2.5MPa |
Sealing test pressure |
1.1MPa |
1.76MPa |
2.75MPa |
Shell test pressure |
1.5MPa |
2.4MPa |
3.75MPa |
H42T/DRVZMain parts of silent check valve |
|
Part name | Material Science |
Valve body, guide body | Gray cast iron, ductile iron, cast steel |
Valve seat, bearing bush, valve disc and shaft | Bronze or chrome stainless steel |
Spring | stainless steel |
H42T/DRVZMain connection dimensions of silent check valve |
|
Nominal diameter(mm) |
L(mm) |
50 |
120 |
65 |
150 |
80 |
180 |
100 |
240 |
125 |
300 |
150 |
350 |
200 |
450 |
250 |
500 |
300 |
550 |
350 |
575 |
400 |
600 |
450 |
650 |
500 |
700 |
Check valve installation should pay attention to the following matters
1. In the pipeline, do not make the check valve bear the weight, large check valve should be independently supported, so that it is not affected by the pressure produced by the pipeline system.
2. During installation, the direction of medium flow should be consistent with the arrow direction of valve body.
3. Lift type vertical disc check valve shall be installed in vertical pipeline.
4. Lift type horizontal disc check valve shall be installed on horizontal pipeline.
