The medium of the electric quick opening sludge valve is liquid, and the gas pipeline is used to intercept the flow. All kinds of purification equipment and the outside of the tank or on the pipeline are used for sludge discharge. They are suitable for all kinds of sedimentation tanks and sludge tanks in water treatment plants to discharge sediment, dirt and waste water in the pools. The valve adopts double chamber diaphragm structure, which has no abrasion and water leakage due to impurities. It is insensitive to sediment deposition, and has good lubrication and sealing performance. It adopts rubber lined valve plate, which is not easy to deposit mud and debris at the valve seat slope opening, and has low driving medium pressure. Manual or electric centralized control is adopted. Durable, long service life.

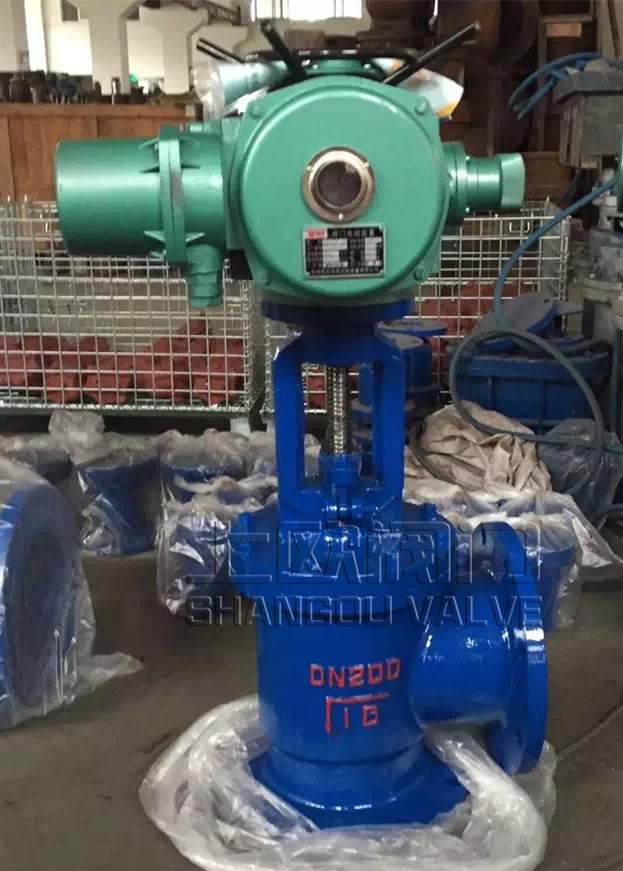

1.  The electric quick opening sludge discharge valve is composed of angle valve body, bracket and electric head. It is opened or closed by electric head with movable gate. It can also be opened or closed manually in case of power failure. One valve can be opened or closed in two ways. The valve plate is soft sealed, with good sealing performance and no leakage after closing.



Pressure rating	1.0MPa  1.6MPa
Voltage of electric actuator	220V、380VNote when ordering
Material of valve body and support	Cast iron, ductile iron,WCB
Stem material	stainless steel
Valve plate material	Nodular cast iron, heat sealing rubber, WCB heat sealing rubber
Flange connection standard	GB/T 17241.6-98
Pressure test standard	GB/T 13927-92
Note: if the height h is required to be increased, it shall be supplied according to h in the dimension table





DN	L1	L2	H	D	D1	Z-фd
50	110	95	200	165	125	4-8
80	135	125	230	200	160	4-8
100	160	125	250	220	180	8-18
150	205	145	300	285	340	8-23
200	220	185	350	340	295	8-23
250	260	205	400	395	350	12-23
300	280	245	450	445	400	12-23
400	335	310	550	656	515	16-25
