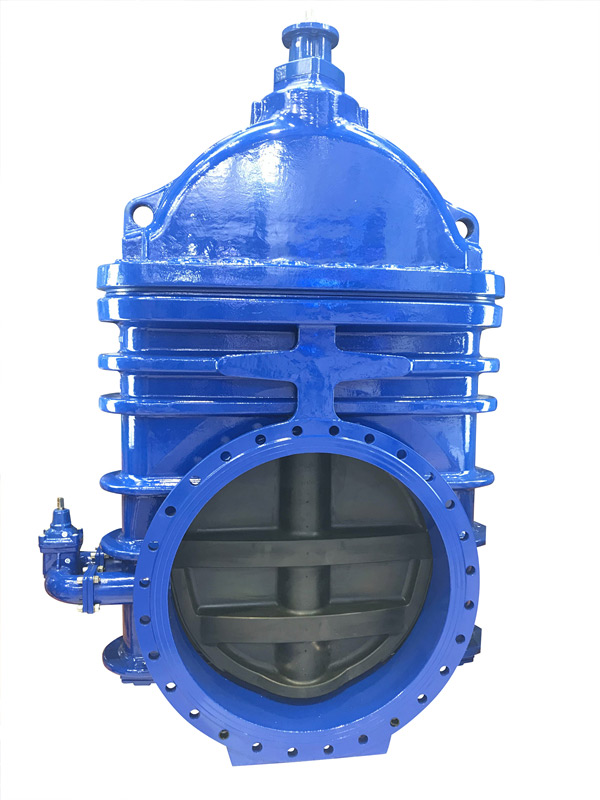

Z545XThe large diameter electric soft seal gate valve is made of Zui high-quality ductile iron or carbon steel. It has the characteristics of high strength, light weight and accurate geometric size. The gate has the function of interchangeability. It is equipped with spiral bevel gear labor-saving mechanism. One person can easily switch on and off, and can also install opening and closing indicator column or electric and pneumatic actuator according to the requirements of users. Excellent sealing and anti rust function, safe and reliable, long service life. It can be installed vertically and horizontally. It is widely used in water supply and drainage system, sewage treatment system, municipal construction, mining, gold treatment, power plant and other industries.

Z545XThe large diameter electric soft seal gate valve is made of Zui high-quality ductile iron or carbon steel. It has the characteristics of high strength, light weight and accurate geometric size. The gate has the function of interchangeability. It is equipped with spiral bevel gear labor-saving mechanism. One person can easily switch on and off, and can also install opening and closing indicator column or electric and pneumatic actuator according to the requirements of users. Excellent sealing and anti rust function, safe and reliable, long service life. It can be installed vertically and horizontally. It is widely used in water supply and drainage system, sewage treatment system, municipal construction, mining, gold treatment, power plant and other industries.

Z545XLarge diameter electric soft seal gate valve can be widely used in tap water, sewage, construction, petroleum, chemical industry, food, medicine, textile, electric power, ship, metallurgy, The elastic seat seal gate valve produced by our factory imported from Europe high-tech valve manufacturing technology can achieve good sealing effect by using the deformation compensation effect of the whole gate valve, and overcome the phenomenon of poor sealing, water leakage and rust of general gate valve. It can be widely used in tap water, sewage, construction, petroleum, chemical, food, medicine, light injury, electric power, ship, metallurgy, energy system and other fluid pipelines as regulating and intercepting device. Overall rubber coating: the gate adopts overall rubber coating, which is good.

name	Material Science
Valve body	Gray cast iron, ductile iron, cast steel
Ram	Ductile iron coated with EPDM or NBR
Hexagon socket bolt	Carbonization treatment
seal ring	Nitrile rubber
Valve cover	Gray cast iron, ductile iron, cast steel
Stem	stainless steel
"O" ring	Nitrile rubber
Thrust bearing	Tin bronze
Bolt	stainless steel
Gland	Ductile iron and cast steel
dust cover	Nitrile rubber
Handwheel (driving cap)

Nominal pressure: 1.0 ~ 2.5MPa
Working temperature: 0 ～ 80 ℃
Flange standard: GB / T 17241.6 gb9113
Nominal diameter: 50 ～ 1200mm
Applicable media: water, oil, gas, etc
Test standard: gb13927 ap1598

DN	500	600	700	800	900	1000	1200
L	457	508	660	720	780	840	960
H（Handwheel）	1480	1665	2200	2800	2800	3000	3000
H（Bevel gear）	1650	1900	2350	2950	2950	3150	3150
H（Electric）	The electric device can be specified by the user
